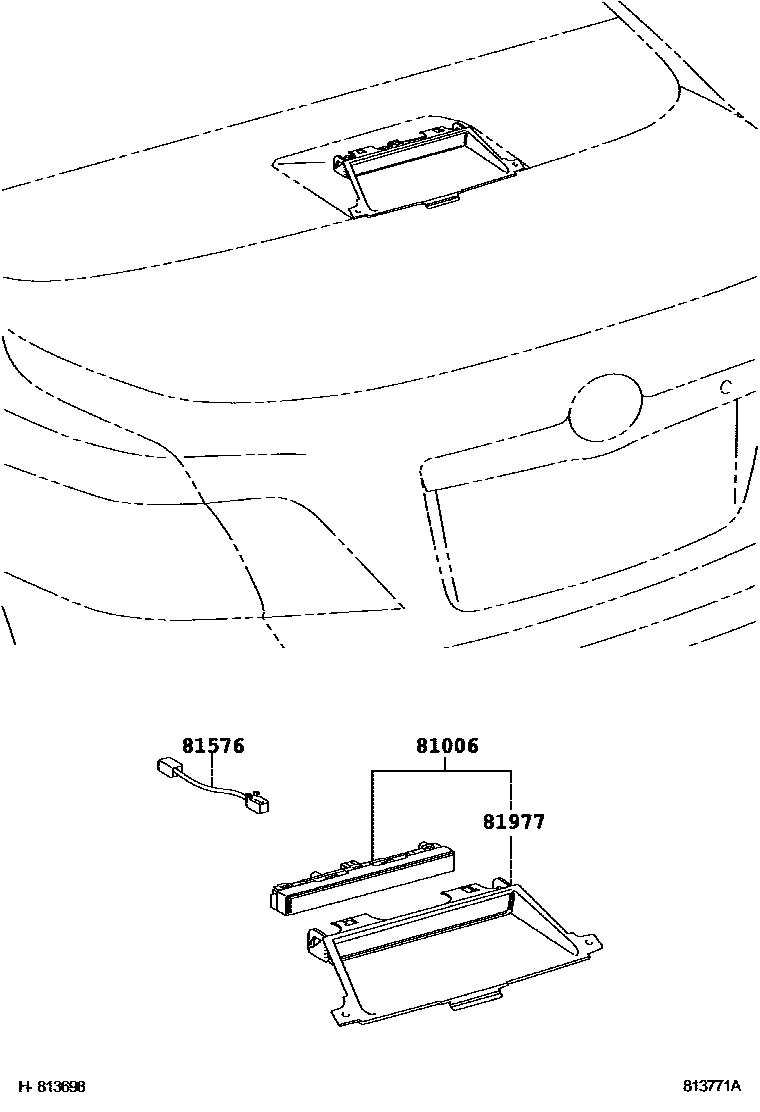

CENTER STOP LAMP

81006LAMP SET, STOP CENTER

main81006-06050-C1iACV40..240G200605-200903

BLACK,TRIM2#

main81006-06050-E2iACV4#200605-200903

GREGE,TRIM4#

81576SOCKET & WIRE, CENTER STOP LAMP

main81576-06050iACV4#..200E,240E200605-200903

main81576-06060iAHV41200902-201112

81977COVER, CENTER STOP LAMP

main81977-06080-C1iACV4#..200E,240E200605-200610

BLACK,TRIM2#

main81977-06080-E2iACV41200605-200903

GREGE,TRIM4#

3 parts on this diagram · 1 diagram in section
