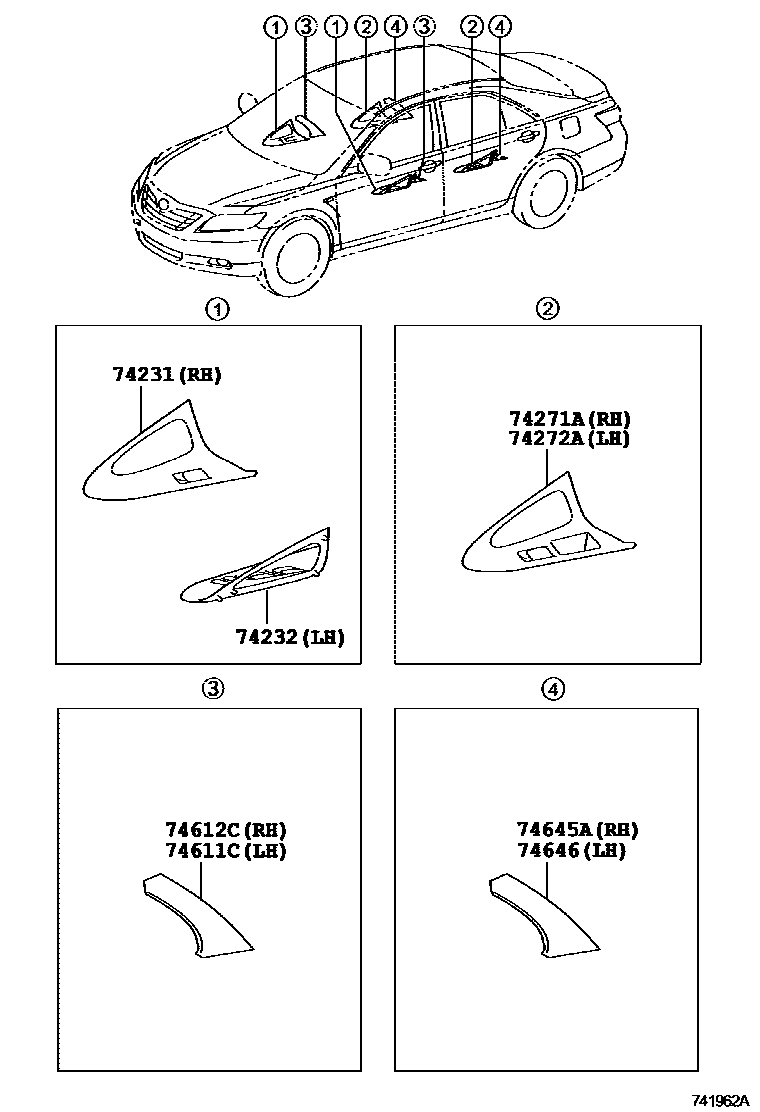

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-06310-C0iACV40..240G200605-200902

BLACK,TRIM2#

main74231-06310-E0iACV4#,AHV41200902-201505

GREGE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-06310-C0iACV40..240G200605-200902

BLACK,TRIM2#

main74232-06310-E0iACV4#200605-200903

GREGE,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-06250-C0iACV40..240G200605-200902

BLACK,TRIM2#

main74271-06250-E0iACV4#200605-200903

GREGE,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-06250-C0iACV40..240G200605-200902

BLACK,TRIM2#

main74272-06250-E0iACV4#200605-200903

GREGE,TRIM4#

74611CCOVER, ASSIST GRIP, LH

main74611-06100iACV4#200605-200903

74612CCOVER, ASSIST GRIP, RH

main74612-06090iACV4#200605-200903

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-06080iACV4#200605-200903

74646COVER, DOOR ASSIST GRIP, LH

main74646-06080iACV4#200605-200903

8 parts on this diagram · 2 diagrams in section
