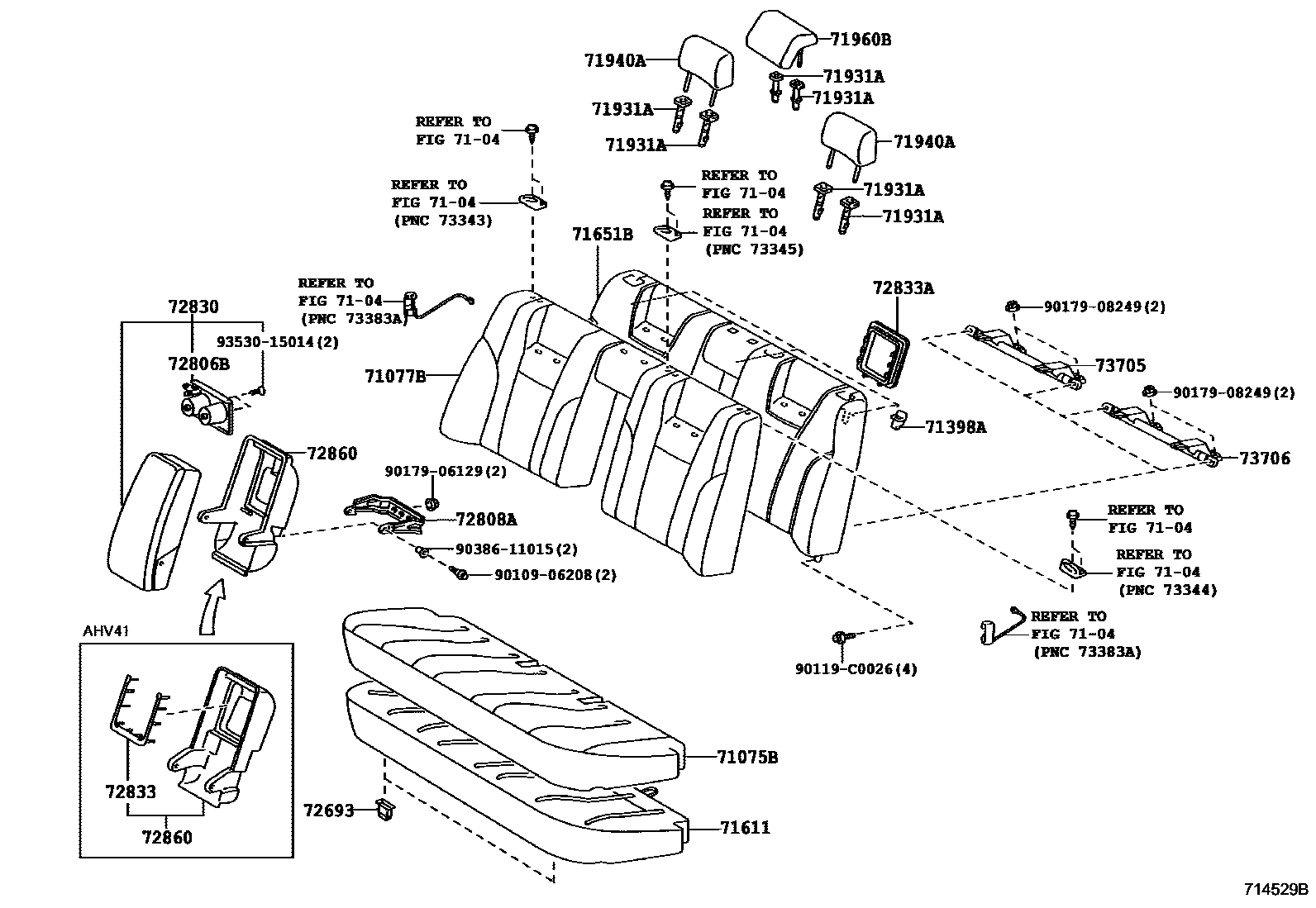

REAR SEAT & SEAT TRACK

0001 1 0002 1240V G-BOOK

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-06560-E0iACV4#..200E,240E200605-200609

GREGE,TRIM4#

main71075-06561-E0iACV40..240E200610-200902

GREGE,TRIM4#

sub71075-06E70

main71075-06570-C0iACV40..240G200605-200609

200G,BLACK,TRIM2#

main71075-06570-E0iACV40..240G200605-200609

200G,GREGE,TRIM4#

main71075-06571-C0iACV40..240G200610-200902

BLACK,TRIM2#

main71075-06571-E0iACV40..240G200610-200902

GREGE,TRIM4#

main71075-06572-E0iACV40..240G201103-201112

GREGE,TRIM4#

main71075-06760-E0iACV4#..200E,240E200902-201102

GREGE,TRIM4#

main71075-06761-E0iACV4#..200E,240E201103-201505

GREGE,TRIM4#

main71075-06810-E0iAHV41201003-201102

GREGE,TRIM4#

main71075-06811-E0iAHV41201103-201112

GREGE,TRIM4#

main71075-06573-E0supersedes 71075-06561-E0iACV41201502-201505

200G,GREGE,TRIM4#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-06630-E1iACV4#..200E,240E200605-200609

GREGE,TRIM4#

main71077-06631-E1iACV40..240E200610-200902

GREGE,TRIM4#

sub71077-06J80

main71077-06640-C1iACV40..240G200605-200609

200G,BLACK,TRIM2#

main71077-06640-E1iACV40..240G200605-200609

200G,GREGE,TRIM4#

main71077-06641-C1iACV40..240G200610-200902

BLACK,TRIM2#

main71077-06641-E1iACV40..240G200610-200902

GREGE,TRIM4#

main71077-06641-E2iACV40..240G200902-200906

GREGE,TRIM4#

main71077-06880-E0iACV4#..200E,240E200902-201003

GREGE,TRIM4#

main71077-06A20-E0iAHV41201003-201112

GREGE,TRIM4#

main71077-06C20-E0iACV40..240G200906-201003

200G,GREGE,TRIM4#

main71077-06F30-E0iACV40..240G201003-201112

GREGE,TRIM4#

main71077-06F40-E0iACV4#..200E,240E201003-201102

GREGE,TRIM4#

main71077-06F41-E0iACV4#..200E,240E201103-201505

GREGE,TRIM4#

main71077-06F31-E0supersedes 71077-06631-E1iACV41201502-201505

200G,GREGE,TRIM4#

71398AHOLDER, REAR SEATBACK

main71398-33010-C0×3iACV40200605-200902

BLACK,TRIM2#

71611PAD, REAR SEAT CUSHION

main71503-06160iACV41200605-200903

main71503-06200iAHV41201003-201112

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-06190iACV40200605-200902

main71651-06240iAHV41201003-201112

main71651-06320iACV4#200906-201505

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-C0×3iACV41200712-200903

W(LOCK),BLACK,TRIM2#

sub71930-02370

main71930-44020-E0×3iACV40200712-200902

W(LOCK),GREGE,TRIM4#

sub71930-02370

main71930-47010-C0×3iACV4#..200E,240G200605-200711

W(LOCK),BLACK,TRIM2#

main71930-47010-E3×3iACV4#200605-200711

W(LOCK),GREGE,TRIM4#

main71931-47010-C0×3iACV40..240G200605-200902

W/O(LOCK),BLACK,TRIM2#

sub71931-42020

main71931-47010-E4×3iACV41200605-200903

W/O(LOCK),GREGE,TRIM4#

sub71931-42020

71940AHEADREST ASSY, REAR SEAT

main71940-06510-E0×2iACV4#..200E,240E200605-200705

GREGE,TRIM4#

sub71940-06B90

main71940-06510-E1×2iACV40..240E200705-200902

GREGE,TRIM4#

sub71940-06B90

main71940-06520-C0×2iACV40..240G200605-200705

200G,BLACK,TRIM2#

sub71940-06C00

main71940-06520-C1×2iACV40..240G200705-200902

BLACK,TRIM2#

sub71940-06C00

main71940-06520-E0×2iACV40..240G200605-200705

200G,GREGE,TRIM4#

sub71940-06C00

main71940-06520-E1×2iACV40..240G200705-200902

GREGE,TRIM4#

sub71940-06C00

main71940-06E10-E0×2supersedes 71940-06510-E1iACV41201502-201505

200G,GREIGE,TRIM4#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-06180-E0iACV4#..200E,240E200605-200705

GREGE,TRIM4#

sub71960-06480

main71960-06180-E1iACV4#..200E,240E200902-201505

GREGE,TRIM4#

sub71960-06480

main71960-06190-C0iACV40..240G200605-200705

200G,BLACK,TRIM2#

sub71960-06490

main71960-06190-C1iACV40..240G200705-200902

BLACK,TRIM2#

sub71960-06490

main71960-06190-E1iACV40,AHV41..240G,HBD200902-201112

GREGE,TRIM4#

sub71960-06490

main71960-06290-E0supersedes 71960-06190-E1iACV40..240G201002-201112

240V G-BOOK&NAVI PACKAGE,GREGE,TRIM4#

sub71960-06500

main71960-06590-E0supersedes 71960-06180-E1iACV41201502-201505

200G,GREIGE,TRIM4#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iACV41200605-200903

72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-06080-E0iACV40,AHV41..240G,HBD200902-201112

BROWN,TRIM2#,4#

main72806-06110-E0iACV41200605-200706

GREGE,TRIM4#

main72806-06111-E0iACV41200706-200903

GREGE,TRIM4#

main72806-06120iACV41200605-200706

200G

main72806-06121supersedes 72806-YL010iACV40200706-200902

main72806-30090-E4iACV40..240G200902-201002

240V G-BOOK,BROWN,TRIM2#,4#

72808ABRACKET SUB-ASSY, SEAT CENTER ARMREST

main72883-06050iACV41200605-200903

main72883-06070iAHV41201003-201112

main72883-06090iACV40..240G201002-201112

240V G-BOOK&NAVI PACKAGE

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-06440-E0iACV40..240E200605-200706

GREGE,TRIM4#

main72830-06441-E2iACV40..240E200706-200902

GREGE,TRIM4#

main72830-06450-C0iACV40..240G200605-200706

200G,BLACK,TRIM2#

main72830-06451-C1iACV40..240G200706-200902

BLACK,TRIM2#

main72830-06600-E1iACV4#..200E,240E200902-201304

GREGE,TRIM4#

main72830-06620-E1iAHV41201003-201112

GREGE,TRIM4#

main72830-06630-E1supersedes 72830-06610-E0iACV40..240G200902-201002

240V G-BOOK,GREGE,TRIM4#

main72830-YL020-E0supersedes 72830-YL010-E0iACV41201304-201501

200G,GREGE,TRIM4#

main72830-YL021-E0supersedes 72830-YL010-E0iACV41201502-201505

200G,GREGE,TRIM4#

72833PLATE, SEAT CENTER ARMREST, INNER RH

main72831-06080-E0iAHV41201003-201112

GREGE,TRIM4#

72833APLATE, SEAT CENTER ARMREST, INNER

main72831-06050iACV41200605-200903

72860BOX ASSY, REAR SEAT CENTER ARMREST

main72860-06070-C0iACV40..240G200605-200902

BLACK,TRIM2#

main72860-06070-E0iACV41200605-200903

GREGE,TRIM4#

main72860-06090-E0iAHV41201003-201112

GREGE,TRIM4#

main72860-06100-E0iACV40..240G201002-201112

240V G-BOOK&NAVI PACKAGE,GREGE,TRIM4#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-06040iACV40200605-200902

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-06040iACV41200605-200903

9010906208

main90109-06208

90119C0026

main90119-C0026

9017906129

main90179-06129

9017908249

main90179-08249

9038611015

main90386-11015

9353015014

main93530-15014

24 parts on this diagram · 2 diagrams in section
