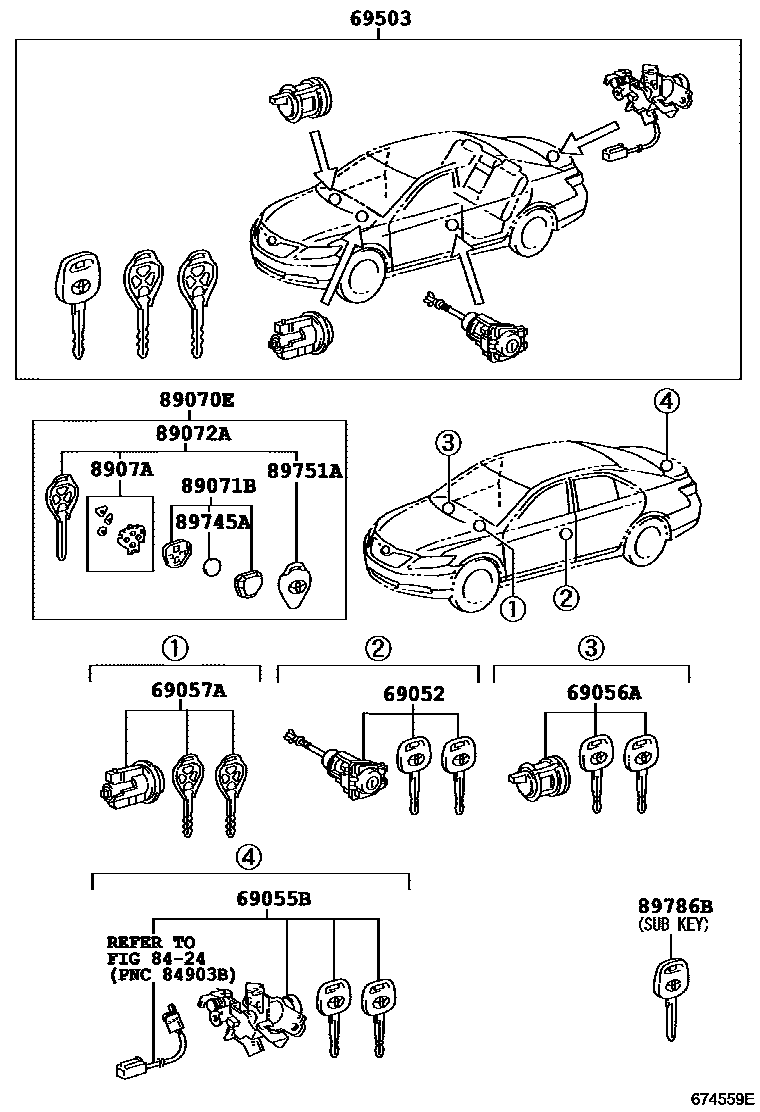

LOCK CYLINDER SET

0001 1W/O(SMART ENTRY) 0002 1W/O(SMART ENTRY) 0003 1W(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-06090iACV40..240G200605-201505

main69052-06100iACV40,AHV41..240G,HBD201002-201112

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-06110iACV4#200605-200806

main69055-06111iACV4#..200E,240E200806-201002

main69055-06121iACV40,AHV41..240G,HBD201002-201112

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-06070iACV40200605-201002

main69056-06080iACV40,AHV41..240G,HBD201002-201112

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-06180iACV4#200605-200802

main69057-06240iACV4#..200E,240E200802-201009

sub69057-0D190

main69057-0F030iACV4#..200E,240E201009

69503CYLINDER SET, LOCK

main69005-06210iACV4#200802-200806

main69005-06211iACV40200806-201009

main69005-06212iACV4#..200E,240E201009

main69005-06400iACV4#200605-200802

main69005-06411iACV40,AHV41..240G,HBD201002-201112

8424

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-06250iACV4#200605-200609

sub89070-06251

main89070-06251iACV4#200609-200802

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-06020iACV4#200605-200609

240V

sub89071-06021

main89071-06021iACV4#200609-200802

240V

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-33530iACV4#200605-200802

sub89072-33531

8907ASWITCH SET, TRANSMITTER

main8907A-33020iACV4#200605-200802

240V

89745ABATTERY, TRANSMITTER

main89745-48030iACV40..240G200605-200802

240V

sub89745-71010

main89745-50020iACV40..240G200902-201002

240V G-BOOK

main89745-50020iACV40..240G200802-201002

240V

main89745-50020iACV4#..200E,240E200802-200903

89751ACOVER, TRANSMITTER HOUSING

main89751-33080iACV4#200605-200802

240V

sub89751-33081

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60170iACV40200605-201009

BLANK KEY

main89786-60170iACV40200605-201002

BLANK KEY,240V

main89786-60170iACV40..240G200902-201002

BLANK KEY,240V G-BOOK

main89786-60220iACV4#..200E,240E201009

BLANK KEY

13 parts on this diagram · 3 diagrams in section
