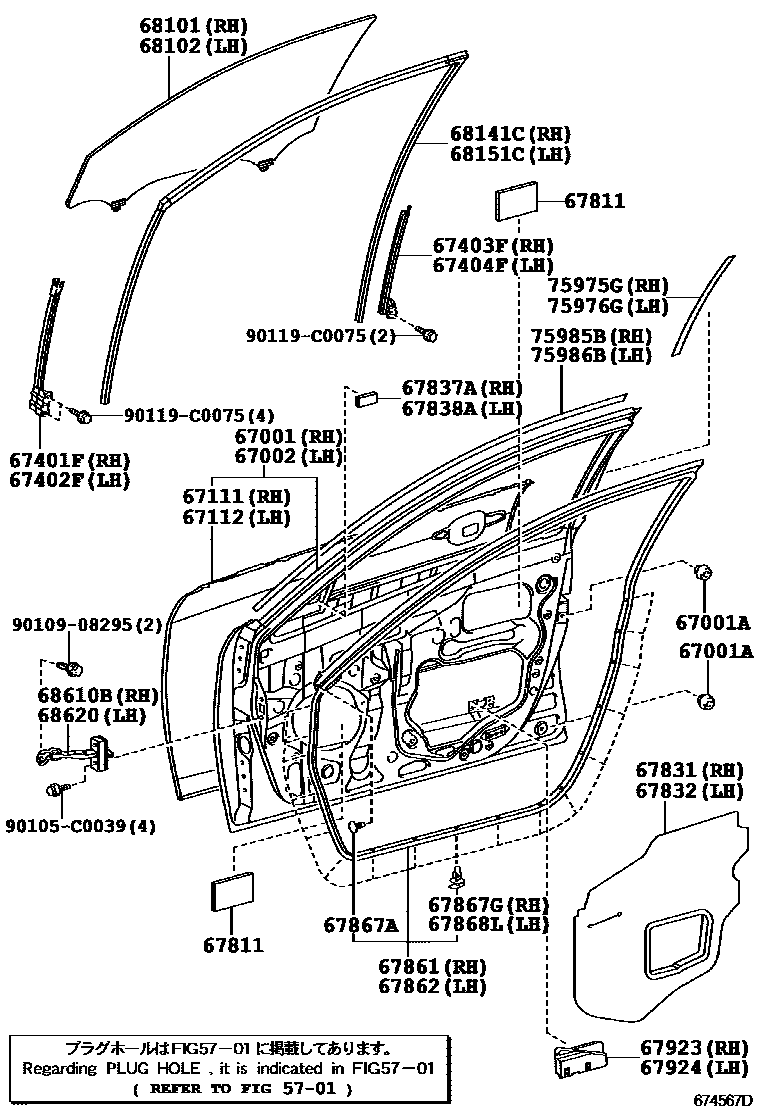

FRONT DOOR PANEL & GLASS
5701
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67811PAD, FRONT DOOR SILENCER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=5.0,S.GREEN,FUYAO
*TEM,T=5.0,S.GREEN
*TEM,T=5.0,S.GREEN,ASAHI
*TEM,T=5.0,S.GREEN,FUYAO
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=5.0,S.GREEN
*TEM,T=5.0,S.GREEN,FUYAO
*TEM,T=5.0,S.GREEN,ASAHI
*TEM,T=5.0,S.GREEN,FUYAO
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75975GSTRIPE, FRONT DOOR, NO.2 RH
75976GSTRIPE, FRONT DOOR, NO.2 LH
75985BSTRIPE, FRONT DOOR, NO.3 RH
75986BSTRIPE, FRONT DOOR, NO.3 LH
90105C0039
main90105-C0039
9010908295
main90109-08295
90119C0075
main90119-C0075
35 parts on this diagram · 2 diagrams in section
