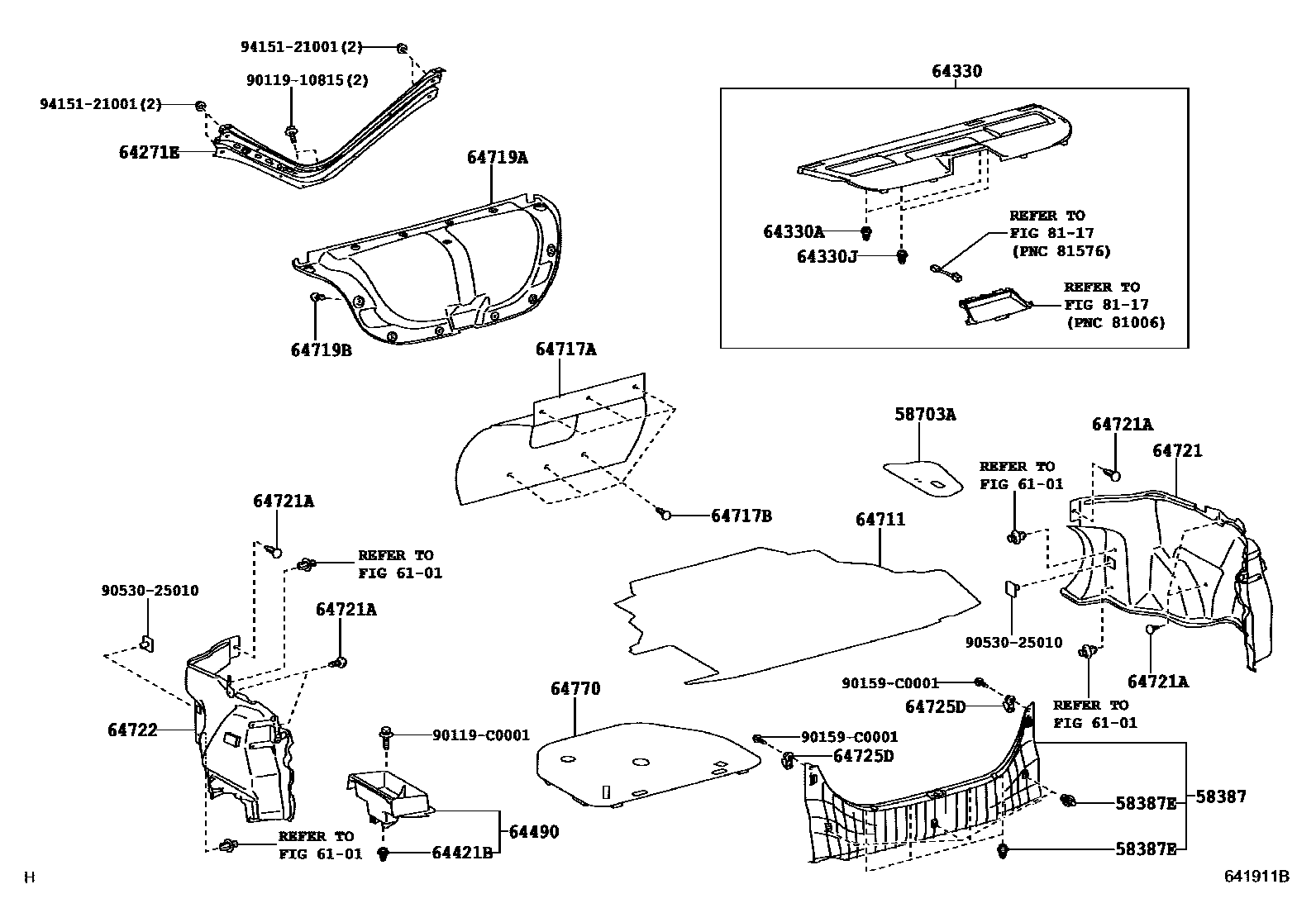

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
6101
64271EPANEL, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64421BCLIP(FOR LUGGAGE COMPARTMENT TRAY)
64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE
sub64490-06071
64711MAT, LUGGAGE COMPARTMENT FLOOR
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM2#,4#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64719ACOVER, LUGGAGE COMPARTMENT DOOR
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
8117
9011910815
main90119-10815
90119C0001
main90119-C0001
90159C0001
main90159-C0001
9053025010
main90530-25010
9415121001
main94151-21001
26 parts on this diagram · 3 diagrams in section
