INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

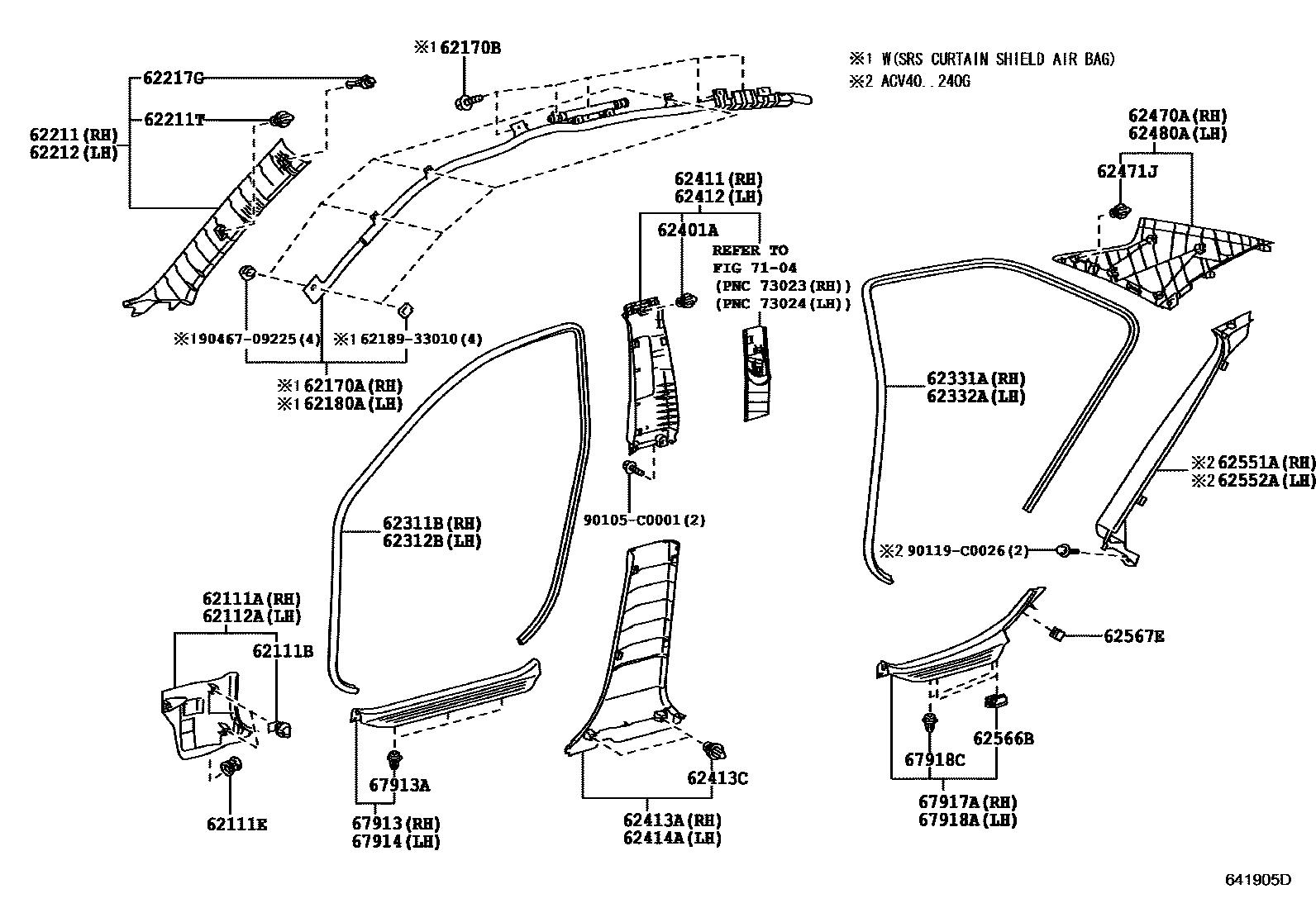

Parts diagram
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-06100-C0i200605-200608
BLACK,TRIM2#
sub62101-06101
main62101-06100-E0i200605-200608
GREGE,TRIM4#
sub62101-06101
main62101-06101-C0i200609-200903
BLACK,TRIM2#
main62101-06101-E0i200609-201505
GREGE,TRIM4#
62111BCLIP(FOR COWL SIDE TRIM)
main90467-09212i200605-201505
62111ERETAINER, COWL SIDE TRIM
main90467-06147i200605-200903
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-06100-C0i200605-200608
BLACK,TRIM2#
sub62102-06101
main62102-06100-E0i200605-200608
GREGE,TRIM4#
sub62102-06101
main62102-06101-C0i200609-200903
BLACK,TRIM2#
main62102-06101-E0i200609-201505
GREGE,TRIM4#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-06041i200611-200902
main62170-06042i200902-201112
VALUE PACKAGE
62170BBOLT, W/WASHER
main90119-06869i200902-201112
VALUE PACKAGE
main90119-06869i200611-200902
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-06041i200611-200902
main62180-06042i200902-201112
VALUE PACKAGE
62211GARNISH, FRONT PILLAR, RH
main62210-06150-B0i200605-200608
GRAY,TRIM2#
sub62210-06151
main62210-06150-E0i200605-200608
GREGE,TRIM4#
sub62210-06151
main62210-06151-B0i200609-200706
GRAY,TRIM2#
sub62210-06152
main62210-06151-E0i200609-200706
GREGE,TRIM4#
sub62210-06152
main62210-06152-B0i200707-200903
GRAY,TRIM2#
sub62210-06153
main62210-06152-E0i200707-201505
GREGE,TRIM4#
sub62210-06153
main62210-06162-B0i200706-200707
200G,GRAY,TRIM2#
sub62210-06163
main62210-06162-B0i200706-200707
GRAY,TRIM2#
sub62210-06163
main62210-06162-E0i200706-200707
GREGE,TRIM4#
sub62210-06163
main62210-06162-E0i200706-200707
200G,GREGE,TRIM4#
sub62210-06163
main62210-06163-B0i200707-200902
GRAY,TRIM2#
sub62210-06164
main62210-06163-E0i200707-201112
GREGE,TRIM4#
sub62210-06164
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-10161i200605-200903
62212GARNISH, FRONT PILLAR, LH
main62220-06150-B0i200605-200608
GRAY,TRIM2#
sub62220-06151
main62220-06150-E0i200605-200608
GREGE,TRIM4#
sub62220-06151
main62220-06151-B0i200609-200706
GRAY,TRIM2#
sub62220-06152
main62220-06151-E0i200609-200706
GREGE,TRIM4#
sub62220-06152
main62220-06152-B0i200707-200903
GRAY,TRIM2#
sub62220-06153
main62220-06152-E0i200707-201505
GREGE,TRIM4#
sub62220-06153
main62220-06162-B0i200706-200707
200G,GRAY,TRIM2#
sub62220-06163
main62220-06162-B0i200706-200707
GRAY,TRIM2#
sub62220-06163
main62220-06162-E0i200706-200707
GREGE,TRIM4#
sub62220-06163
main62220-06162-E0i200706-200707
200G,GREGE,TRIM4#
sub62220-06163
main62220-06163-B0i200707-200902
GRAY,TRIM2#
sub62220-06164
main62220-06163-E0i200707-201112
GREGE,TRIM4#
sub62220-06164
62217GCLIP, FRONT PILLAR GARNISH
main62217-33030i200706-200707
200G
sub62217-06010
main62217-33031i200707-200903
main90950-08004i200605-200706
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-06120-C0i200605-200903
BLACK,TRIM2#
main62311-06120-E0i200605-201505
GREGE,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-06120-C0i200605-200903
BLACK,TRIM2#
main62312-06120-E0i200605-201505
GREGE,TRIM4#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-06110-C0i200605-200903
BLACK,TRIM2#
main62331-06110-E0i200605-201505
GREGE,TRIM4#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-06110-C0i200605-200903
BLACK,TRIM2#
main62332-06110-E0i200605-201505
GREGE,TRIM4#
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
main90467-10167i200605-200903
62411GARNISH, CENTER PILLAR, RH
main62410-06130-B1i200605-200608
GRAY,TRIM2#
sub62410-06131
main62410-06130-E1i200605-200608
GREGE,TRIM4#
sub62410-06131
main62410-06131-B1i200609-200903
GRAY,TRIM2#
sub62410-06132
main62410-06131-E1i200609-201505
GREGE,TRIM4#
sub62410-06132
62412GARNISH, CENTER PILLAR, LH
main62420-06130-B1i200605-200608
GRAY,TRIM2#
sub62420-06131
main62420-06130-E1i200605-200608
GREGE,TRIM4#
sub62420-06131
main62420-06131-B1i200609-200903
GRAY,TRIM2#
sub62420-06132
main62420-06131-E1i200609-201505
GREGE,TRIM4#
sub62420-06132
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-06100-C0i200605-200608
BLACK,TRIM2#
sub62413-06101
main62413-06100-E0i200605-200608
GREGE,TRIM4#
sub62413-06101
main62413-06101-C0i200609-200903
BLACK,TRIM2#
main62413-06101-E0i200609-201505
GREGE,TRIM4#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10161i200605-200903
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-06100-C0i200605-200608
BLACK,TRIM2#
sub62414-06101
main62414-06100-E0i200605-200608
GREGE,TRIM4#
sub62414-06101
main62414-06101-C0i200609-200903
BLACK,TRIM2#
main62414-06101-E0i200609-201505
GREGE,TRIM4#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-06180-B0i200605-200608
GRAY,TRIM2#
sub62470-06181
main62470-06180-E0i200605-200608
GREGE,TRIM4#
sub62470-06181
main62470-06181-B0i200609-200903
GRAY,TRIM2#
main62470-06181-E0i200609-200903
GREGE,TRIM4#
main62470-06191-B0i200706-200902
GRAY,TRIM2#
main62470-06191-E0i200706-200902
GREGE,TRIM4#
main62470-06200-E0i200902-201505
GREGE,TRIM4#
main62470-06210-E0i200902-201112
GREGE,TRIM4#
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-10161i200605-200903
NATURAL
main90467-10188i200605-200903
BLUE
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-06180-B0i200605-200608
GRAY,TRIM2#
sub62480-06181
main62480-06180-E0i200605-200608
GREGE,TRIM4#
sub62480-06181
main62480-06181-B0i200609-200903
GRAY,TRIM2#
main62480-06181-E0i200609-200903
GREGE,TRIM4#
main62480-06191-B0i200706-200902
GRAY,TRIM2#
main62480-06191-E0i200706-200902
GREGE,TRIM4#
main62480-06200-E0i200902-201505
GREGE,TRIM4#
main62480-06210-E0i200902-201112
GREGE,TRIM4#
62551ACOVER, REAR SEAT SIDE, RH
62552ACOVER, REAR SEAT SIDE, LH
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
main62566-32010i200605-200903
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
main62567-33040i200605-200903
67913PLATE, FRONT DOOR SCUFF, RH
main67913-06120-C0i200605-200608
BLACK,TRIM2#
sub67913-06121
main67913-06120-E0i200605-200608
GREGE,TRIM4#
sub67913-06121
main67913-06121-C0i200609-200903
BLACK,TRIM2#
sub67913-06122
main67913-06121-E0i200609-201505
GREGE,TRIM4#
sub67913-06122
67913ACLIP(FOR SCUFF PLATE)
main90467-10161i200605-200903
67914PLATE, FRONT DOOR SCUFF, LH
main67914-06120-C0i200605-200608
BLACK,TRIM2#
sub67914-06121
main67914-06120-E0i200605-200608
GREGE,TRIM4#
sub67914-06121
main67914-06121-C0i200609-200903
BLACK,TRIM2#
sub67914-06122
main67914-06121-E0i200609-201505
GREGE,TRIM4#
sub67914-06122
67917APLATE, REAR DOOR SCUFF, RH
main67917-06090-C0i200605-200608
BLACK,TRIM2#
sub67917-06091
main67917-06090-E0i200605-200608
GREGE,TRIM4#
sub67917-06091
main67917-06091-C0i200609-200903
BLACK,TRIM2#
sub67917-06092
main67917-06091-E0i200609-201505
GREGE,TRIM4#
sub67917-06092
67918APLATE, REAR DOOR SCUFF, LH
main67918-06090-C0i200605-200608
BLACK,TRIM2#
sub67918-06091
main67918-06090-E0i200605-200608
GREGE,TRIM4#
sub67918-06091
main67918-06091-C0i200609-200903
BLACK,TRIM2#
sub67918-06092
main67918-06091-E0i200609-201505
GREGE,TRIM4#
sub67918-06092
67918CCLIP(FOR REAR SCUFF PLATE)
main90467-10161i200605-200903
7104
6218933010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH
main62189-33010
90105C0001
main90105-C0001
90119C0026
main90119-C0026
9046709225
main90467-09225

39 parts on this diagram · 1 diagram in section
