SIDE MEMBER
5202
5701
58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58332JBRACKET, LUGGAGE COMPARTMENT TRIM, NO.2
58747APROTECTOR, QUARTER PANEL, REAR RH
58748APROTECTOR, QUARTER PANEL, REAR LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61167EBRACKET, NO.6 PILLAR OUTER
61168CBRACKET, NO.6 PILLAR OUTER
61201RAIL SUB-ASSY, ROOF SIDE, RH
61202RAIL SUB-ASSY, ROOF SIDE, LH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61415BEXTENSION, ROCKER, OUTER RH
61416BEXTENSION, ROCKER, OUTER LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61685CBRACKET, REAR SEATBACK STOPPER, RH
61686ABRACKET, REAR SEATBACK STOPPER, LH
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61713BREINFORCE, ROOF SIDE, OUTER RH
61714BREINFORCE, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
61848ARETAINER, QUARTER PANEL, LH
62611FINSULATOR, QUARTER WHEEL HOUSE, RH
62612EINSULATOR, QUARTER WHEEL HOUSE, LH
62613JINSURATOR, QUARTER WHEEL HOUSE, NO.2 RH
62614GINSURATOR, QUARTER WHEEL HOUSE, NO.2 LH
62939ASILENCER, QUARTER VENT
64213EXTENSION, PACKAGE TRAY STRAINER, RH
64214EXTENSION, PACKAGE TRAY STRAINER, LH
65637LINER, REAR WHEEL HOUSE, RH
sub65637-06230
65638LINER, REAR WHEEL HOUSE, LH
sub65638-06230
75861KPROTECTOR, ROCKER PANEL MOULDING, RH
75862HPROTECTOR, ROCKER PANEL MOULDING, LH
90119C0010
main90119-C0010
9015960431
main90159-60431
9018906006
main90189-06006
9018906065
main90189-06065
9018906211
main90189-06211
9046705165B0
main90467-05165B0
9046706169
main90467-06169
9046707188
main90467-07188
9046711025
main90467-11025
9054111010
main90541-11010
9415121001
main94151-21001

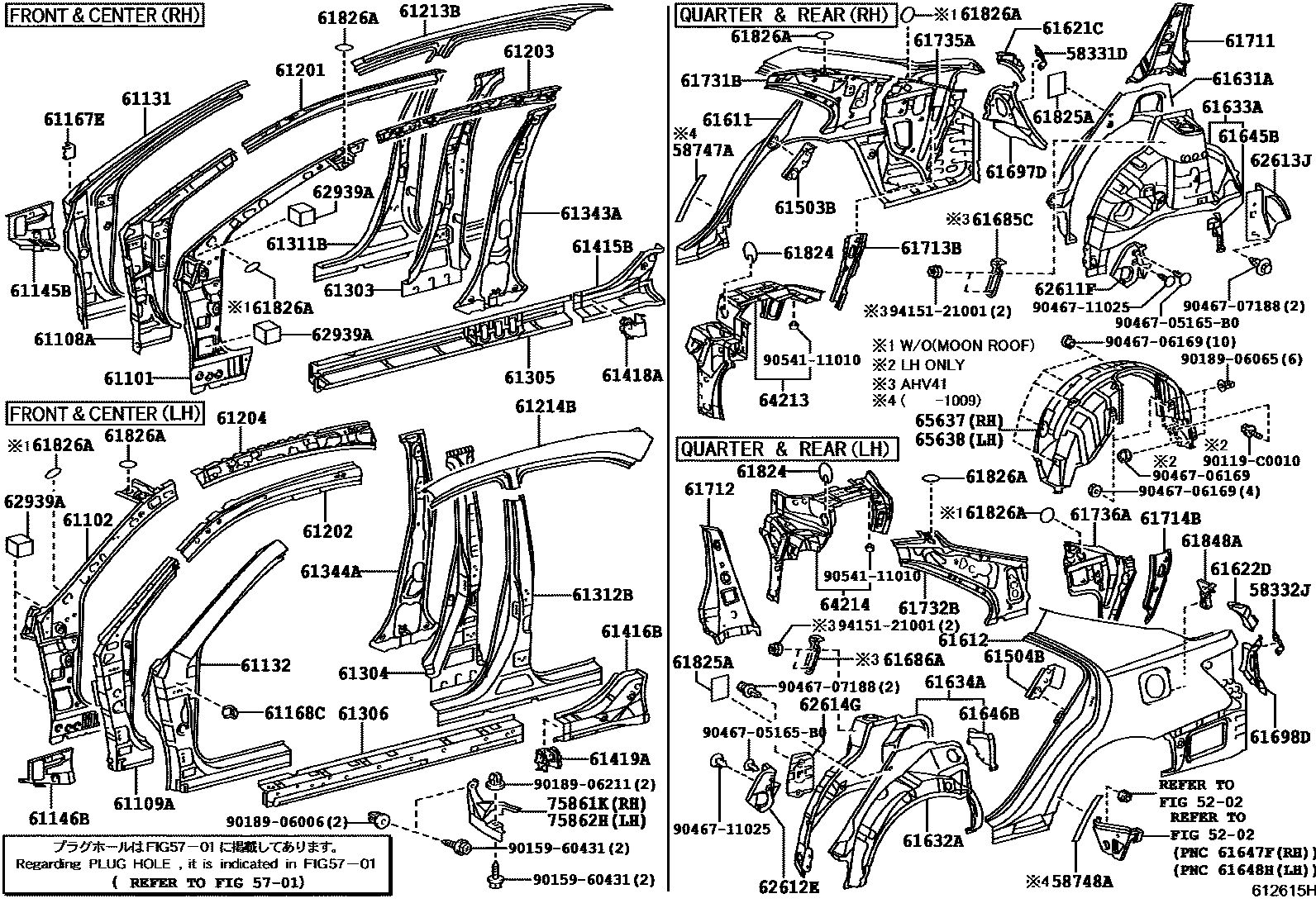

84 parts on this diagram · 1 diagram in section
