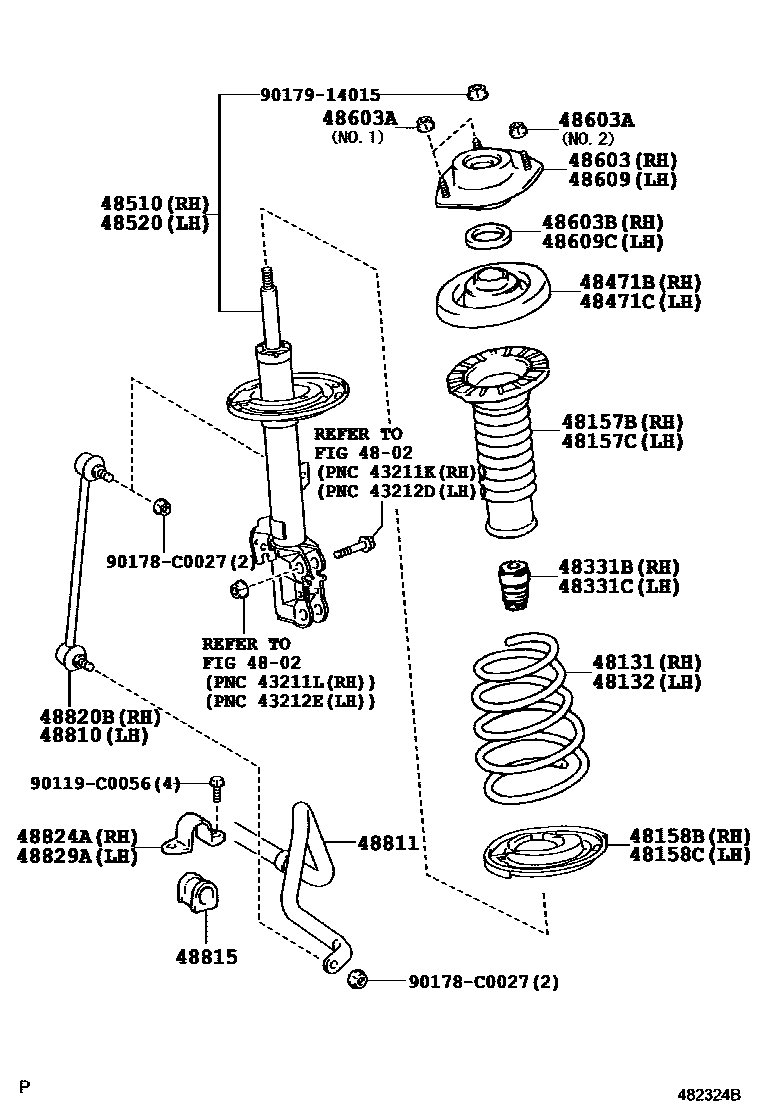

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-06B80iACV41200605-200903

main48131-06B81iACV4#200908

main48131-06C30iAHV41201003-201112

48132SPRING, FRONT COIL, LH

main48131-06B80iACV40200605-200902

main48131-06B81iACV4#200908

main48131-06C30iAHV41201003-201112

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06100iACV40200605-200902

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06100iACV40200605-200902

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-06050iACV40200605-200902

main48158-06110iACV4#,AHV41201108

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-06050iACV40200605-200902

main48158-06110iACV4#,AHV41201108

48331BBUMPER, FRONT SPRING, RH

main48331-33032iACV41200605-200903

48331CBUMPER, FRONT SPRING, LH

main48331-33032iACV40200605-200902

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-41010iACV4#,AHV41200902

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-41010iACV40200605-200902

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09P70iACV4#200605-200609

MARK 48510-06530

main48510-09S30iACV4#200609-200903

MARK 48510-06531

main48510-A9790iAHV41201003-201112

MARK 48510-06630

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09J20iACV4#200605-200609

MARK 48520-06530

main48520-09K90iACV4#200902-201505

MARK 48520-06531

main48520-A9480iAHV41201003-201112

MARK 48520-06630

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-06170iACV41200605-200903

main48609-06240iAHV41201003-201112

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10005×4iACV41200605-200903

NO.1

main90178-C0001×2iACV4#,AHV41200902

NO.2

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90369-C0001iACV41200605-200903

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06170iACV4#200902

main48609-06240iAHV41201003-201112

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90369-C0001iACV40200605-200902

48810LINK ASSY, FRONT STABILIZER, LH

main48820-06060iACV4#200605-200710

main48820-06061iACV41200711-200903

48811BAR, STABILIZER, FRONT

main48811-06220iACV4#200902

main48811-33160iAHV41201003-201112

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06190×2iACV40200605-200902

main48815-06191×2iACV41201112

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-06060iACV4#200605-200710

main48820-06061iACV40200711-200902

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-06070iACV40200605-200902

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06070iACV40200605-200902

90119C0056

main90119-C0056

90178C0027

main90178-C0027

9017914015

main90179-14015

27 parts on this diagram · 1 diagram in section
