Toyota 280310 — FRONT AXLE ARM & STEERING KNUCKLE

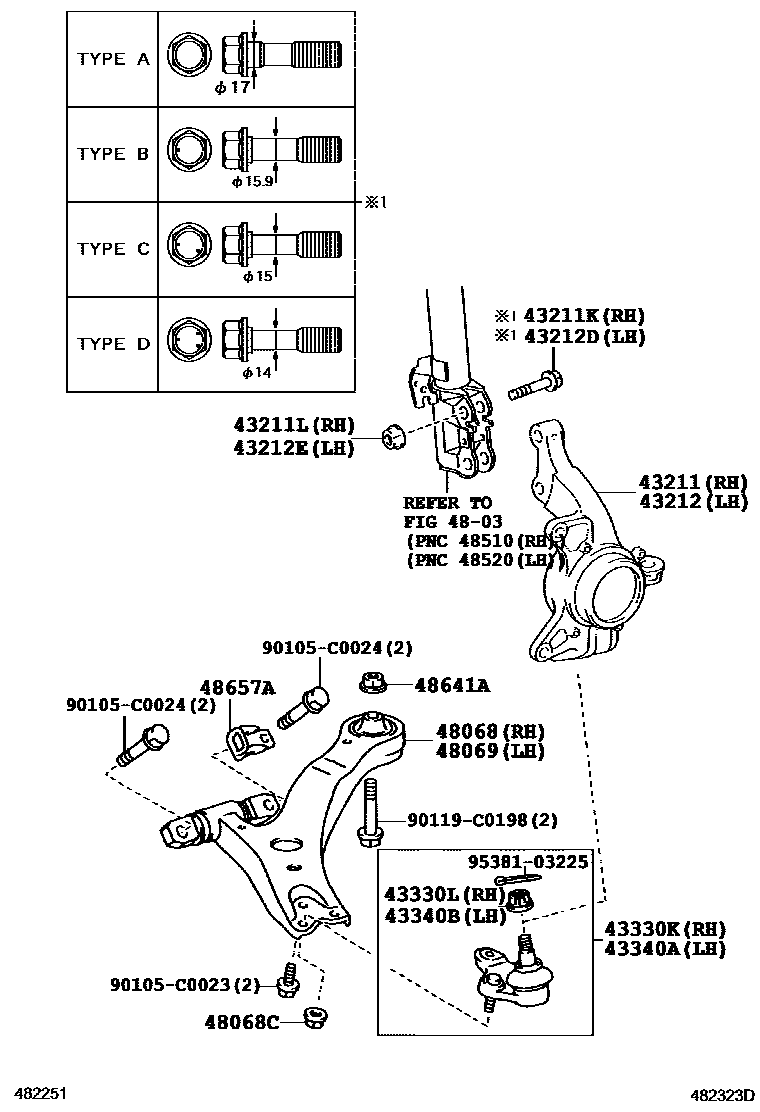

Parts diagram

43211KNUCKLE, STEERING, RH

43211KBOLT (FOR STEERING KNUCKLE RH)

43211LNUT (FOR STEERING KNUCKLE RH)

43212KNUCKLE, STEERING, LH

43212DBOLT (FOR STEERING KNUCKLE LH)

43212ENUT (FOR STEERING KNUCKLE LH)

43330KJOINT ASSY, LOWER BALL, FRONT RH

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

43340AJOINT ASSY, LOWER BALL, FRONT LH

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

48657ASTOPPER, FRONT LOWER ARM BUSH

90105C0023

90105C0024

90119C0198

9538103225

20 parts on this diagram · 1 diagram in section

FRONT AXLE ARM & STEERING KNUCKLE for Toyota 280310

This section contains 20 genuine Toyota parts for the FRONT AXLE ARM & STEERING KNUCKLE system of the Toyota 280310. Key components include: KNUCKLE, STEERING, RH, BOLT (FOR STEERING KNUCKLE RH), NUT (FOR STEERING KNUCKLE RH), KNUCKLE, STEERING, LH, BOLT (FOR STEERING KNUCKLE LH).
