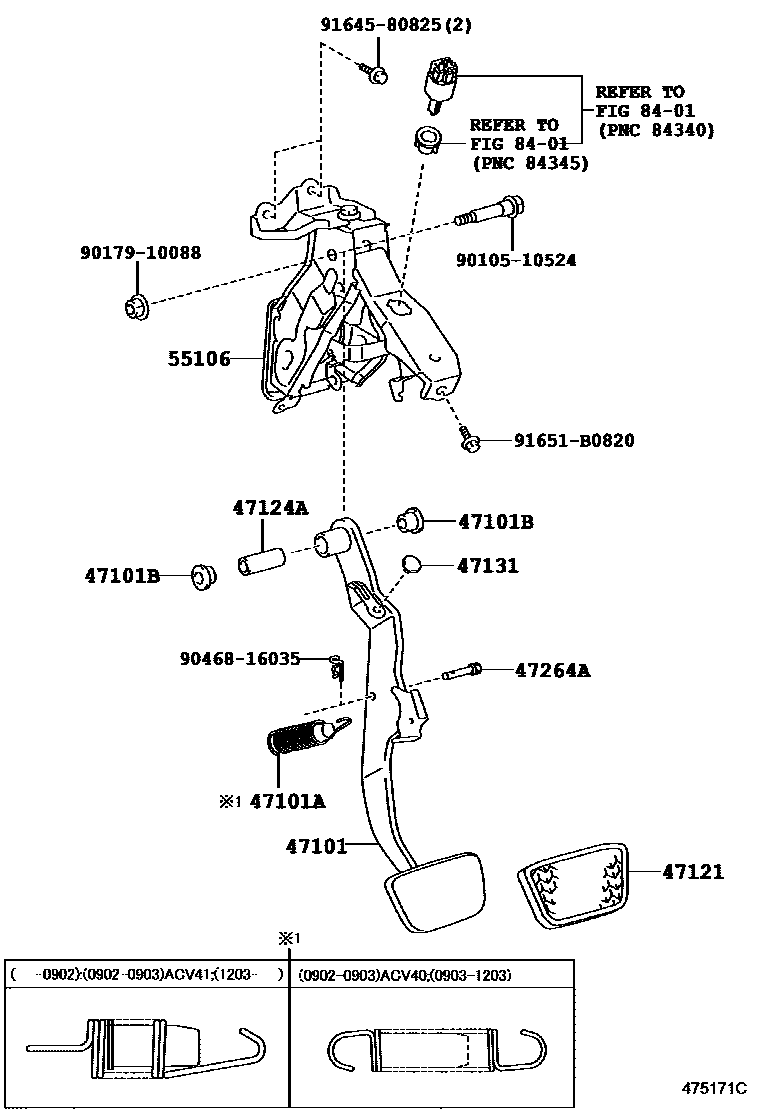

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-06130iAHV41201003-201112

main47101-06190iACV4#200605-200903

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14036iACV41201203

main90507-15003iACV4#,AHV41200902-201203

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iACV40200605-200902

47121PAD, BRAKE PEDAL

main47121-06010iACV4#,AHV41200902

main47121-50020iACV40200605-200902

(J)

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iACV40200605-200902

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iACV4#,AHV41200902

47264APIN(FOR PUSH ROD)

main47148-33011iACV40200605-200902

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-06080iACV40200605-200902

main55106-06120iAHV41201003-201112

8401

9010510524

main90105-10524

9017910088

main90179-10088

9046816035

main90468-16035

9164580825

main91645-80825

91651B0820

main91651-B0820

14 parts on this diagram · 2 diagrams in section
