Toyota 280310 — POWER STEERING TUBE

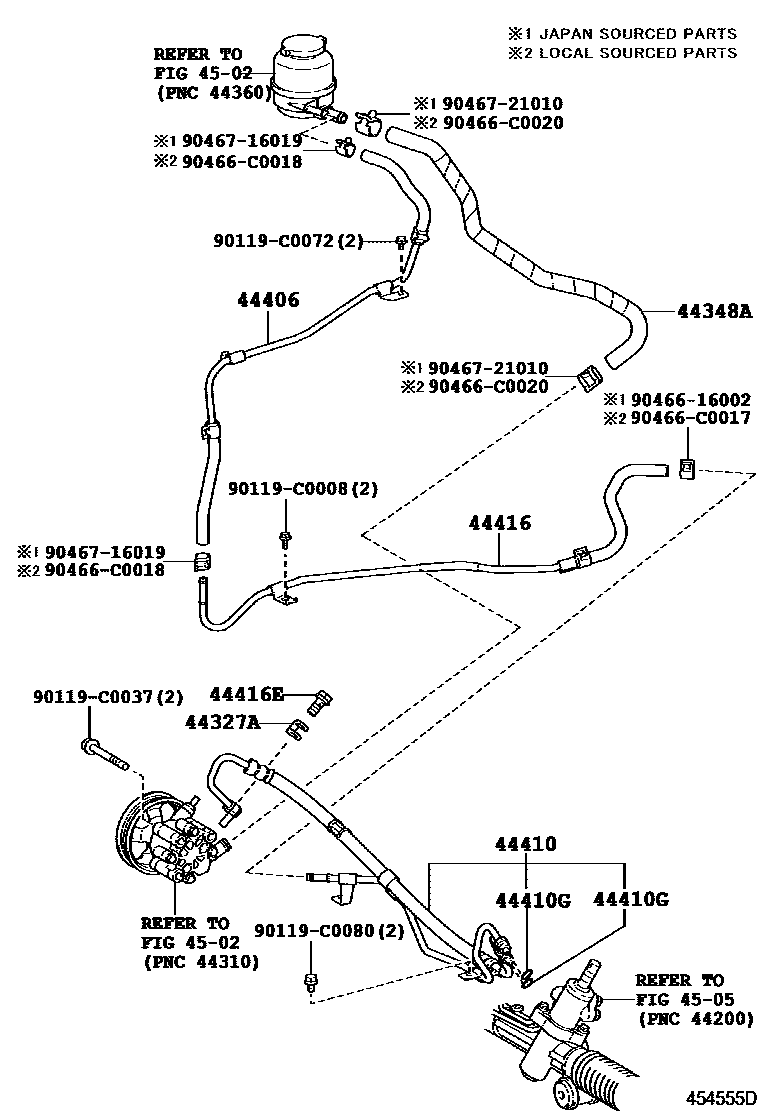

Parts diagram

44327AGASKET, PRESSURE PORT, NO.1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

44406TUBE SUB-ASSY, RETURN

44410TUBE ASSY, PRESSURE FEED

44410GRING, O(FOR PRESSURE FEED TUBE)

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

44416EBOLT, UNION(FOR RETURN TUBE)

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

90119C0008

90119C0037

90119C0072

90119C0080

9046616002

90466C0017

90466C0018

90466C0020

9046716019

9046721010

19 parts on this diagram · 1 diagram in section

POWER STEERING TUBE for Toyota 280310

This section contains 19 genuine Toyota parts for the POWER STEERING TUBE system of the Toyota 280310. Key components include: GASKET, PRESSURE PORT, NO.1, HOSE, OIL RESERVOIR TO PUMP, NO.1, TUBE SUB-ASSY, RETURN, TUBE ASSY, PRESSURE FEED, RING, O(FOR PRESSURE FEED TUBE).
