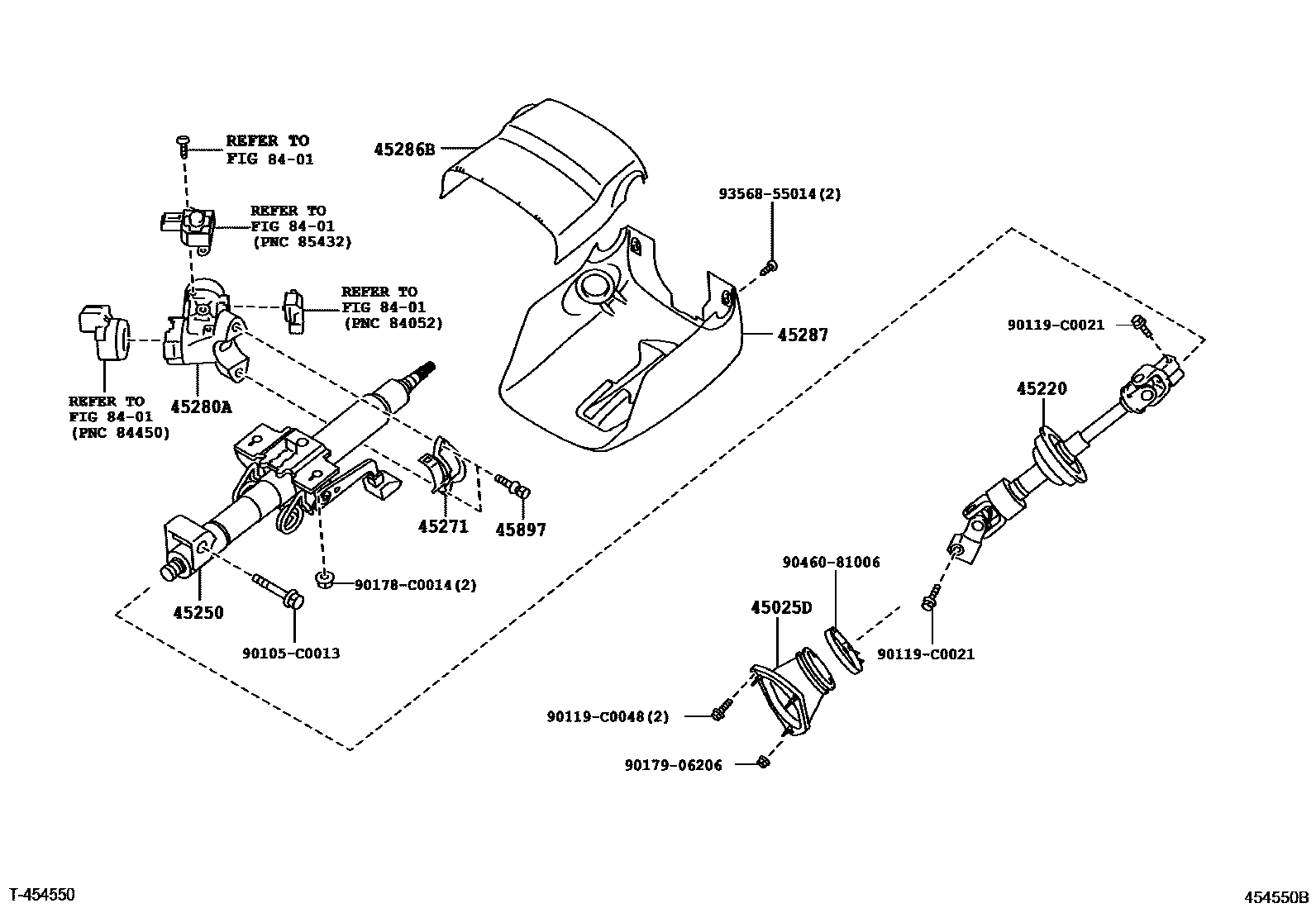

STEERING COLUMN & SHAFT

0001 1 0002 1W(SMART ENTRY)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-33110iACV40200605-200902

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-06170iACV4#200902

main45220-06180iAHV41201003-201112

main45220-33190iACV40200605-200902

45250COLUMN ASSY, STEERING

main45250-06460iACV4#..200E,240E200902-201505

main45250-06470supersedes 45250-06460iACV40,AHV41..240G,HBD201002-201112

45271CLAMP, STEERING COLUMN, UPPER

main45271-06030iACV41200605-200903

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-06090iACV4#200605-200801

main45280-06091iACV4#..200E,240E200902-201505

45286BCOVER, STEERING COLUMN, UPR

main45286-06170-C0iACV40200605-200902

BLACK,TRIM2#

main45286-06170-E0iACV4#,AHV41200902-201505

ASH BROWN,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-06200-C0iACV40200605-200902

BLACK,TRIM2#

main45287-06200-E0iACV41200605-200903

ASH BROWN,TRIM4#

main45287-06210-E0supersedes 45287-06200-E0iACV40,AHV41..240G,HBD201002-201112

ASH BROWN,TRIM4#

main45287-06210-C0iACV40..240G200605-200902

240V,BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020×2iACV40200605-200902

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105C0013

main90105-C0013

90119C0021

main90119-C0021

90119C0048

main90119-C0048

90178C0014

main90178-C0014

9017906206

main90179-06206

9046081006

main90460-81006

9356855014

main93568-55014

16 parts on this diagram · 2 diagrams in section
