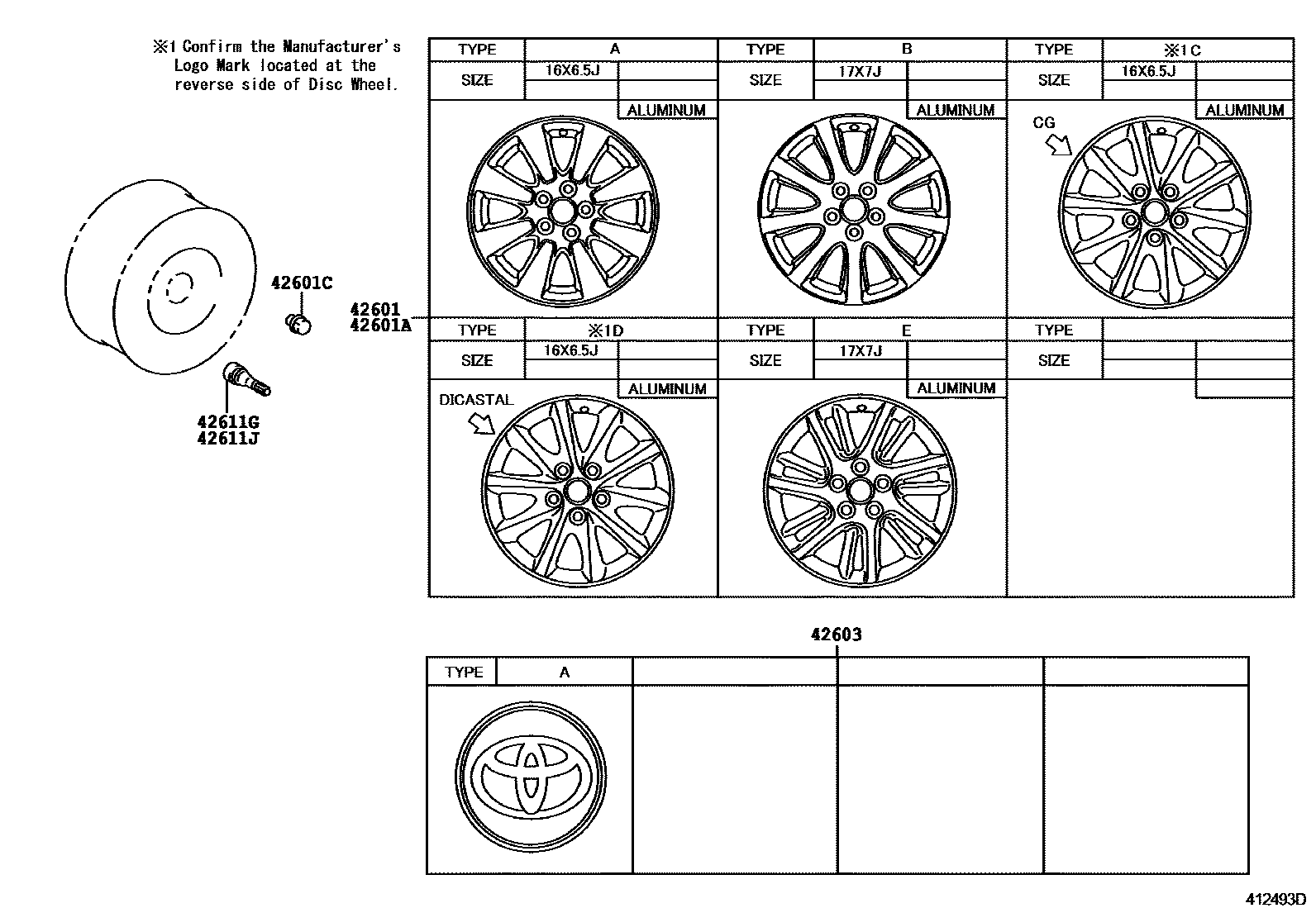

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-06620×4iACV41200605-200903

16X6.5J, #,TYPE A:REFER ILLUST.

main42611-06690×4iACV4#,AHV41200902

16X6.5J, #,TYPE C:REFER ILLUST.

main42611-06700×4iACV4#,AHV41200902

16X6.5J, #,TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-06620iACV41200605-200903

16X6.5J, #,TYPE A:REFER ILLUST.

main42611-06690iACV4#,AHV41200902

16X6.5J, #,TYPE C:REFER ILLUST.

main42611-06700iACV4#,AHV41200902

16X6.5J, #,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iACV40200605-200902

main90942-C1001×20iACV4#,AHV41200906

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-06130×4iACV40200605-200902

*ALU,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iACV40200605-200902

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iACV40200605-200902

6 parts on this diagram · 2 diagrams in section
