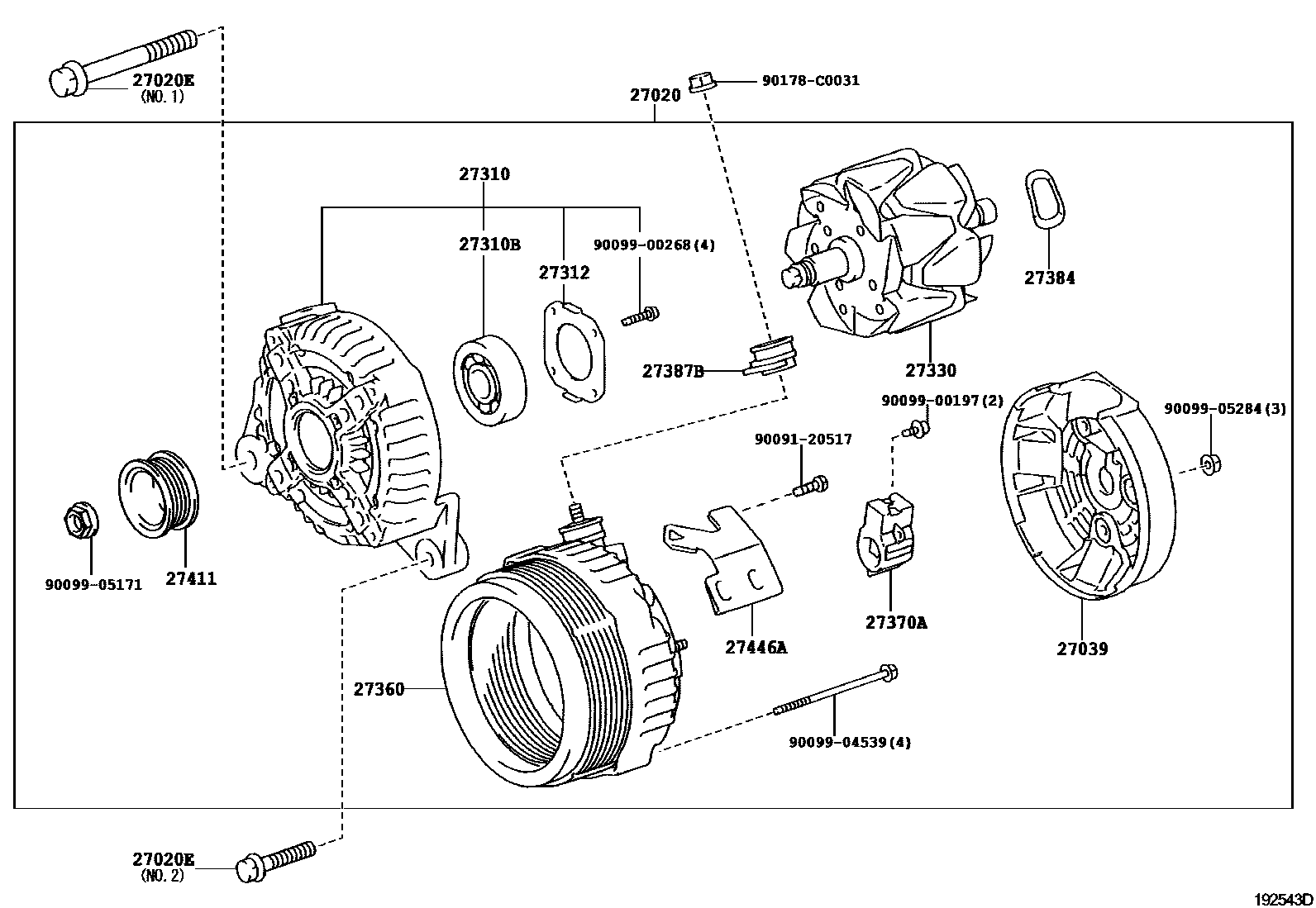

ALTERNATOR

27020ALTERNATOR ASSY

main27060-0H140i1AZFE..ACV41200903-201010

12V 80A

main27060-0H141i1AZFE..ACV41201011

12V 80A

main27060-0H170i2AZFE..ACV40200902-201010

12V 80A

main27060-0H171i2AZFE..ACV40201011-201112

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-C0028i1AZFE..ACV41200605-200903

NO.2

main90105-C0034i1AZFE,2AZFE..ACV4#200902

NO.1

27039COVER, ALTERNATOR REAR END

main27039-0H110i1AZFE..ACV41200605-200903

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0H110i1AZFE..ACV41200605-200903

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10014i1AZFE,2AZFE..ACV4#200605-200705

main90068-10029i1AZFE..ACV41200706-200903

main90068-10036i1AZFE..ACV41201208-201212

main90068-10047i1AZFE..ACV41201212-201505

27312PLATE, RETAINER

main27312-0M070i2AZFE..ACV40200902-201505

main27312-72100i1AZFE..ACV41200903-201212

27330ROTOR ASSY, ALTERNATOR

main27330-0H110i2AZFE..ACV40200605-200902

27360COIL ASSY, ALTERNATOR

main27360-0H110i1AZFE..ACV41200903-201011

main27360-0H111i1AZFE..ACV41201011

main27360-0H130i2AZFE..ACV40200605-200902

main27360-0H131i2AZFE..ACV40201011-201112

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0H110i2AZFE..ACV40200605-200902

27384WASHER

main27384-16380i2AZFE..ACV40200605-200902

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0H110i2AZFE..ACV40200605-200902

27411PULLEY, ALTERNATOR

main27411-0H110i2AZFE..ACV40200605-200902

27446ACLAMP

main27446-28120i2AZFE..ACV40200605-200902

9009120517

main90091-20517

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

90178C0031

main90178-C0031

20 parts on this diagram · 1 diagram in section
