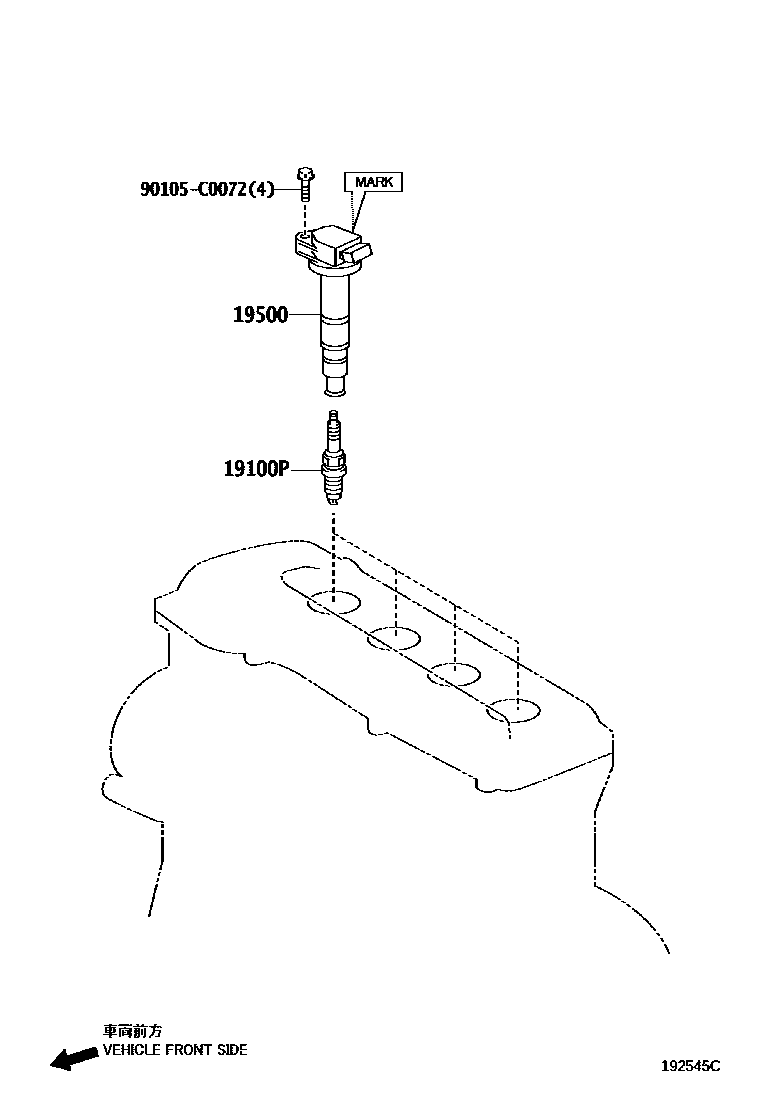

IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01237×4i3AZFXE..AHV41201003-201112

SK20R11,(J)

sub90919-01210

main90919-01240×4i1AZFE,2AZFE..ACV4#200902-201505

SK16R11,(J)

main90919-T1007×4i1AZFE..ACV41200605-200903

SK20R11,(L)

19500COIL ASSY, IGNITION

main90919-02248×4i1AZFE,2AZFE..ACV4#200605-200702

MARK 90919-02248

main90919-02260×4i1AZFE,2AZFE,3AZFXE..ACV4#,AHV41201012

MARK 90919-02260

main90919-C2002×4i1AZFE,2AZFE,3AZFXE..ACV4#,AHV41200903-201012

MARK C200* OR T200*

main90919-C2006×4i1AZFE,2AZFE,3AZFXE..ACV4#,AHV41201012

MARK C200* OR T200*

main90919-T2005×4i2AZFE..ACV40200902-200903

MARK 90919-T2005

90105C0072

main90105-C0072

3 parts on this diagram · 1 diagram in section
