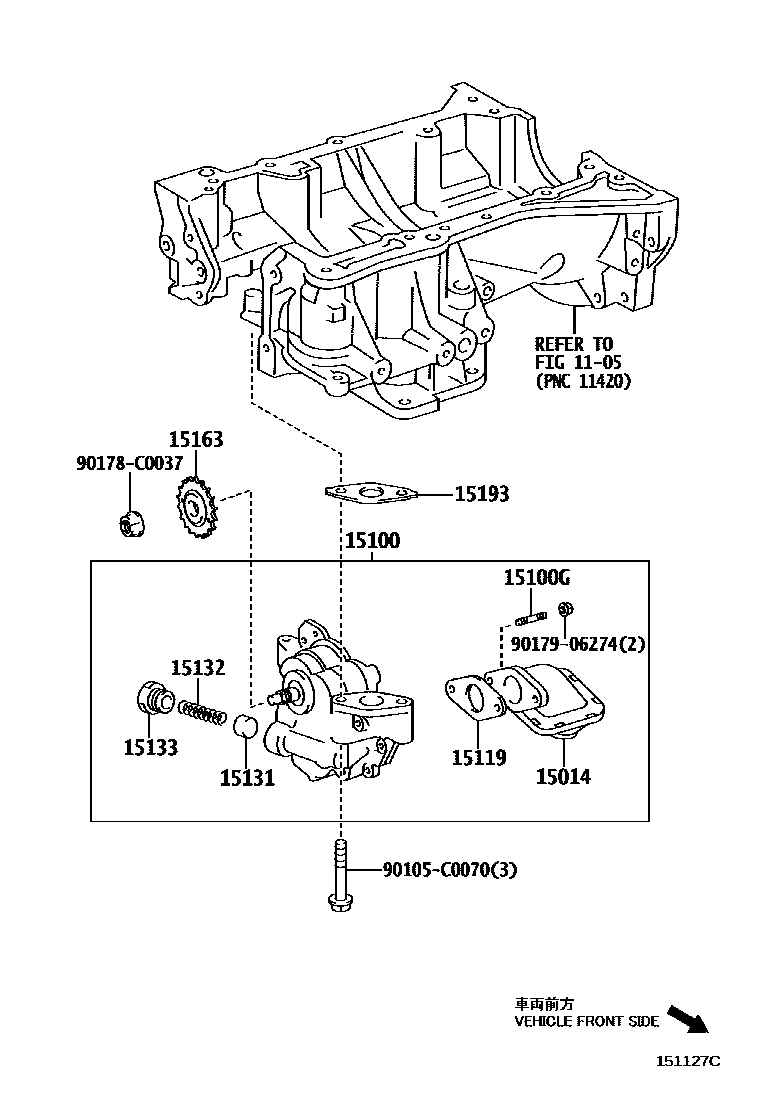

ENGINE OIL PUMP

1105

15014STRAINER SET, OIL PUMP

main15014-0H060i2AZFE..ACV40200605-200902

(L)

main15014-28020i2AZFE..ACV40200605-200902

(J)

15100PUMP ASSY, OIL

main15100-0H060i1AZFE,2AZFE,3AZFXE..ACV4#,AHV41200902

(L)

main15100-28020i1AZFE..ACV41200605-200903

(J)

15100GBOLT,STUD(FOR OIL PUMP)

main15183-0H060×2i1AZFE,2AZFE,3AZFXE..ACV4#,AHV41200902

(L)

main15183-28020×2i1AZFE..ACV41200605-200903

(J)

15119GASKET, OIL PUMP COVER

main15119-28020i2AZFE..ACV40200605-200902

15131VALVE, OIL PUMP RELIEF

main15131-46040i2AZFE..ACV40200605-200902

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i1AZFE..ACV41200605-200903

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i1AZFE..ACV41200605-200903

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H050i2AZFE..ACV40200605-200902

(L)

main15163-28010i1AZFE..ACV41200605-200903

(J)

15193GASKET, OIL PUMP

main15193-0H030i2AZFE..ACV40200605-200902

(L)

main15193-28010i2AZFE..ACV40200605-200902

(J)

90105C0070

main90105-C0070

90178C0037

main90178-C0037

9017906274

main90179-06274

13 parts on this diagram · 1 diagram in section
