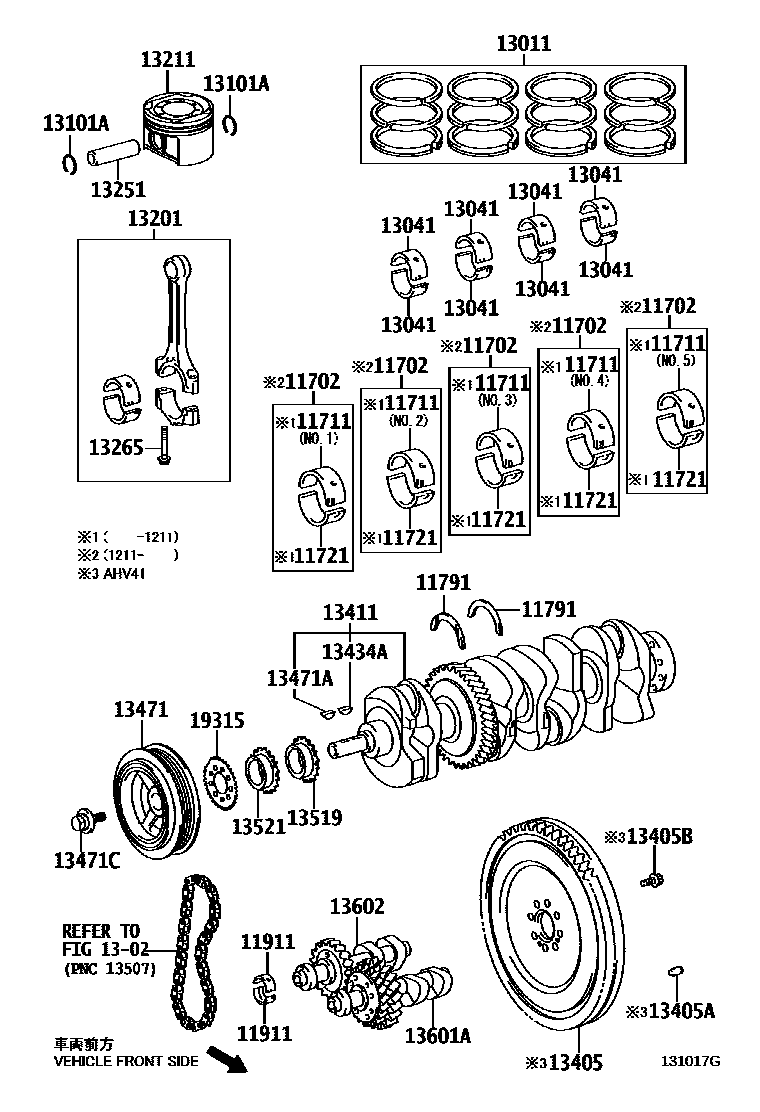

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
11711BEARING, CRANKSHAFT
MARK 1,NO.2,3,4,5 REFER R/M
MARK 1,NO.1,2,3,4,5 *RRM
MARK 2,NO.1,2,3,4,5 *RRM
MARK 2,NO.2,3,4,5 REFER R/M
MARK 3,NO.2,3,4,5 REFER R/M
MARK 3,NO.1,2,3,4,5 *RRM
MARK 4,NO.2,3,4,5 REFER R/M
MARK 4,NO.1,2,3,4,5 *RRM
MARK1,NO.1,REFER R/M
MARK2,NO.1,REFER R/M
MARK3,NO.1,REFER R/M
MARK4,NO.1,REFER R/M
11721BEARING, CRANKSHAFT, NO.2
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
11911BEARING, BALANCESHAFT, NO.1
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13011RING SET, PISTON
STD,(L)
STD
STD
STD,(J)
1302
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A,(L):REFER R/M
MARK B,(L):REFER R/M
MARK C,(L):REFER R/M
MARK A,(J):REFER R/M
MARK B,(J):REFER R/M
MARK C,(J):REFER R/M
13211PISTON
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARKA,REFER REPAIR MANUAL
MARKB,REFER REPAIR MANUAL
MARKC,REFER REPAIR MANUAL
13251PIN, PISTON
MARK A,(L):REFER R/M
MARK B,(L):REFER R/M
MARK C,(L):REFER R/M
MARKA,REFER REPAIR MANUAL
MARK A,(J):REFER R/M
MARKB,REFER REPAIR MANUAL
MARK B,(J):REFER R/M
MARKC,REFER REPAIR MANUAL
MARK C,(J):REFER R/M
13265BOLT, CONNECTING ROD
sub13265-28020
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
sub90105-12384
13411CRANKSHAFT
(L)
(J)
(J)
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13471PULLEY, CRANKSHAFT
(L)
(J)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
(L)
(J)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
(J)
13601ABALANCESHAFT SUB-ASSY, NO.1
13602BALANCESHAFT SUB-ASSY, NO.2
(L)
(J)
19315PLATE, CRANK ANGLE SENSOR, NO.1
26 parts on this diagram · 1 diagram in section
