STANDARD TOOL

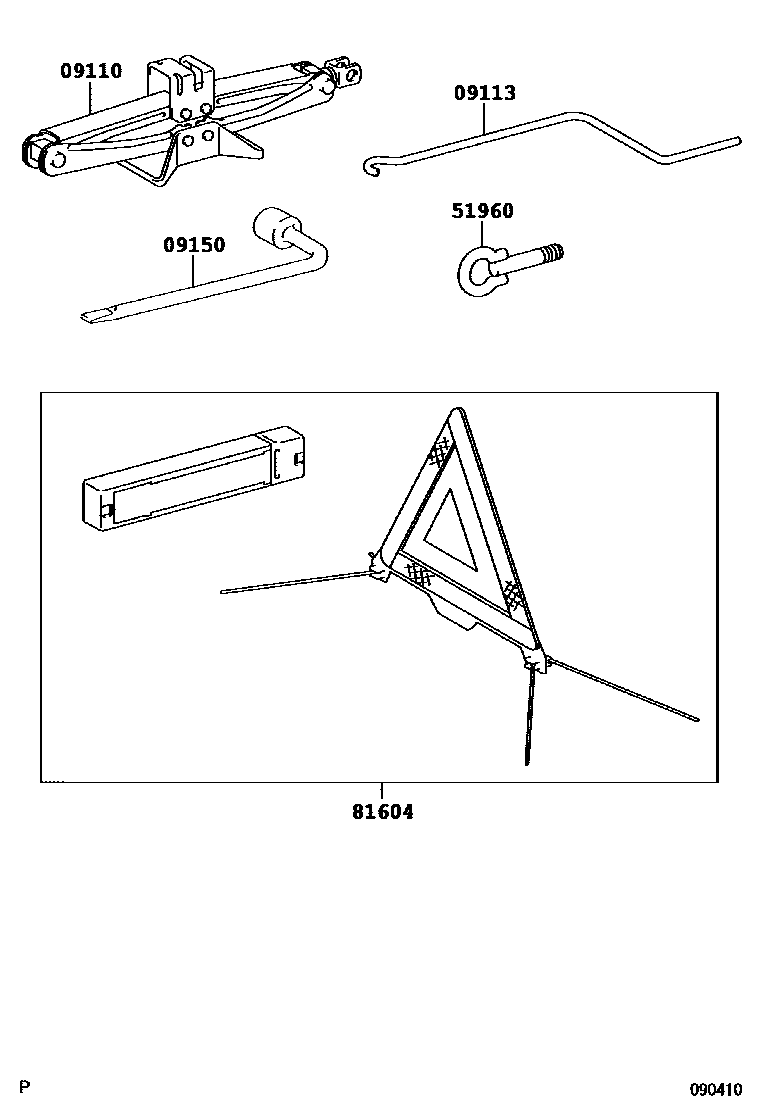

Parts diagram
09110JACK ASSY
main09111-0N010i200605-200709
sub09111-0N011
main09111-0N011i200710-200903
09113HANDLE, JACK
main09113-06120i200605-200903
09150WRENCH, HUB NUT BOX
main09150-0D010i200605-200708
(L)
sub09150-0D020
main09150-0D020i200709-200903
(L)
main09150-40010i200605-200903
(J)
51960HOOK ASSY, FRONT
main51960-06050i200712-200903
(L)
main51960-52050i200712-200903
(J)
main51960-52050i200605-200712
81604REFLECTOR SET, TRIANGLE
main81604-06010i200605-200903

5 parts on this diagram · 1 diagram in section
