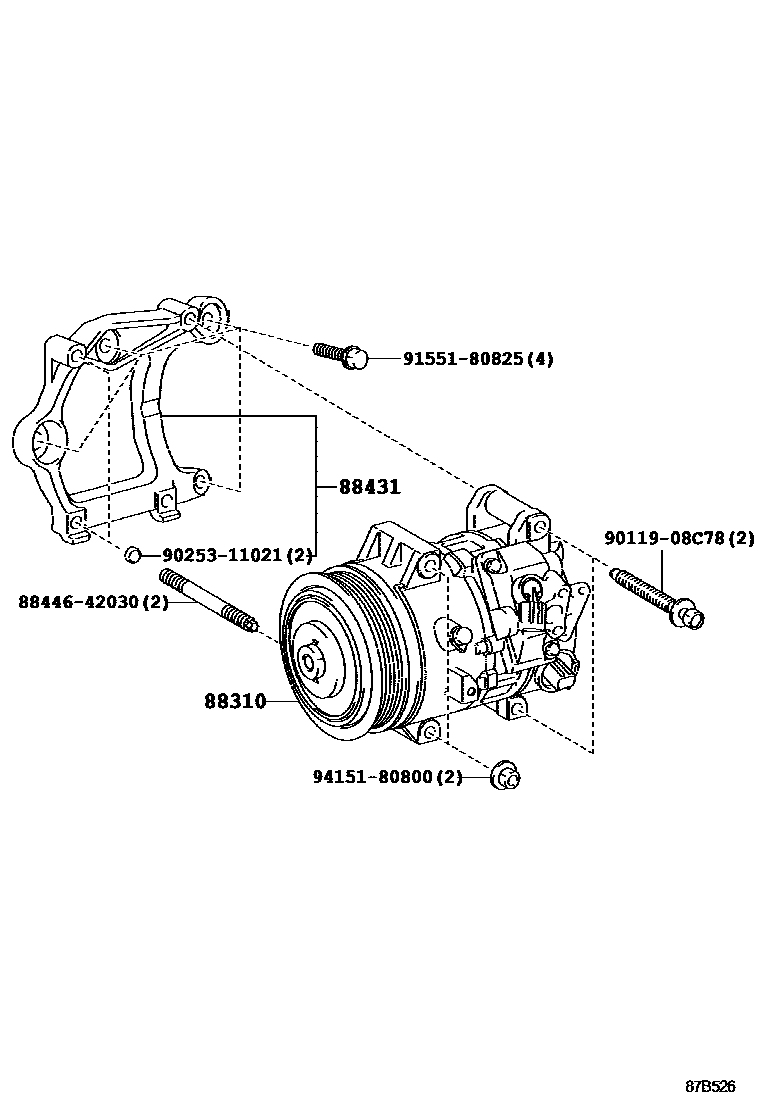

HEATING & AIR CONDITIONING - COMPRESSOR

88310COMPRESSOR ASSY, W/PULLEY

main88310-21150iAGT20201008-201209

main88310-21151iAGT20201210-201306

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36010iAGT20201008-201306

8844642030BOLT, IDLE PULLEY

main88446-42030

9011908C78

main90119-08C78

9025311021

main90253-11021

9155180825

main91551-80825

9415180800

main94151-80800

7 parts on this diagram · 1 diagram in section
