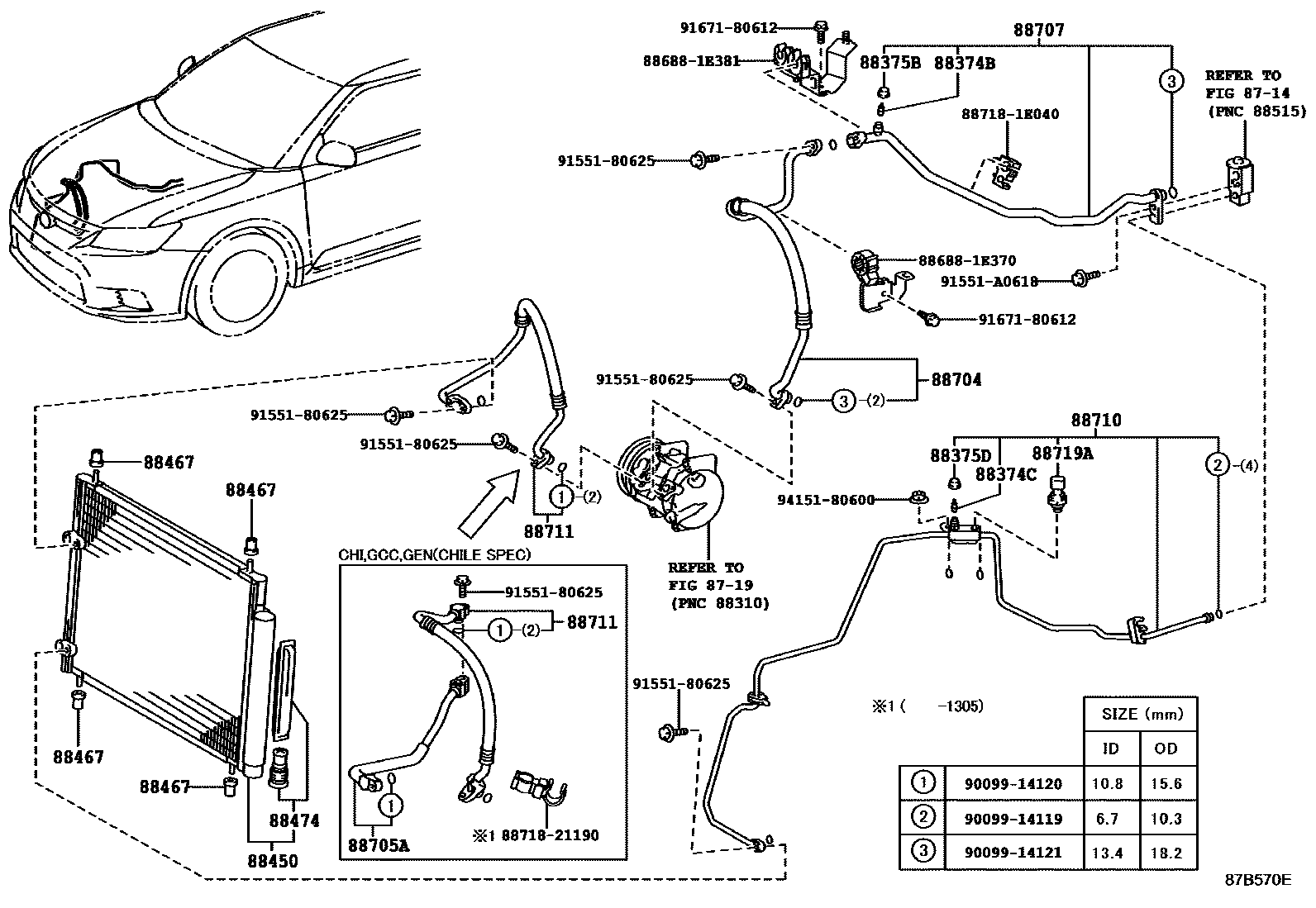

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iAGT20201008-201306

88374CVALVE, SERVICE, NO.2

main88374-30010iAGT20201008-201306

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iAGT20201008-201306

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iAGT20201008-201306

88450CONDENSER ASSY, W/RECEIVER

main88450-12290supersedes 88450-12280iAGT20..CHI,GCC201010-201306

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×4iAGT20201008-201306

88474DRYER, COOLER

main88474-12030iAGT20201008-201306

88704HOSE SUB-ASSY, SUCTION

main88704-21240iAGT20201008-201306

88705ATUBE SUB-ASSY, DISCHARGE

main88705-21010iAGT20..CHI,GCC201010-201306

88707PIPE SUB-ASSY, SUCTION

main88707-12250iAGT20201305-201607

88710TUBE ASSY, AIR CONDITIONER

main88710-21210supersedes 88710-21220iAGT20..CHI,GCC201010-201306

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-21170supersedes 88703-21160iAGT20..CHI,GCC201305-201607

main88711-21180supersedes 88703-21160iAGT20..CHI,GCC201010-201306

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAGT20201305-201607

886881E370BRACKET, COOLER DIAPHRAGM

main88688-1E370

886881E381BRACKET, COOLER DIAPHRAGM

main88688-1E381

887181E040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E040

8871821190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-21190

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

9167180612

main91671-80612

9415180600

main94151-80600

26 parts on this diagram · 1 diagram in section
