QUARTER WINDOW

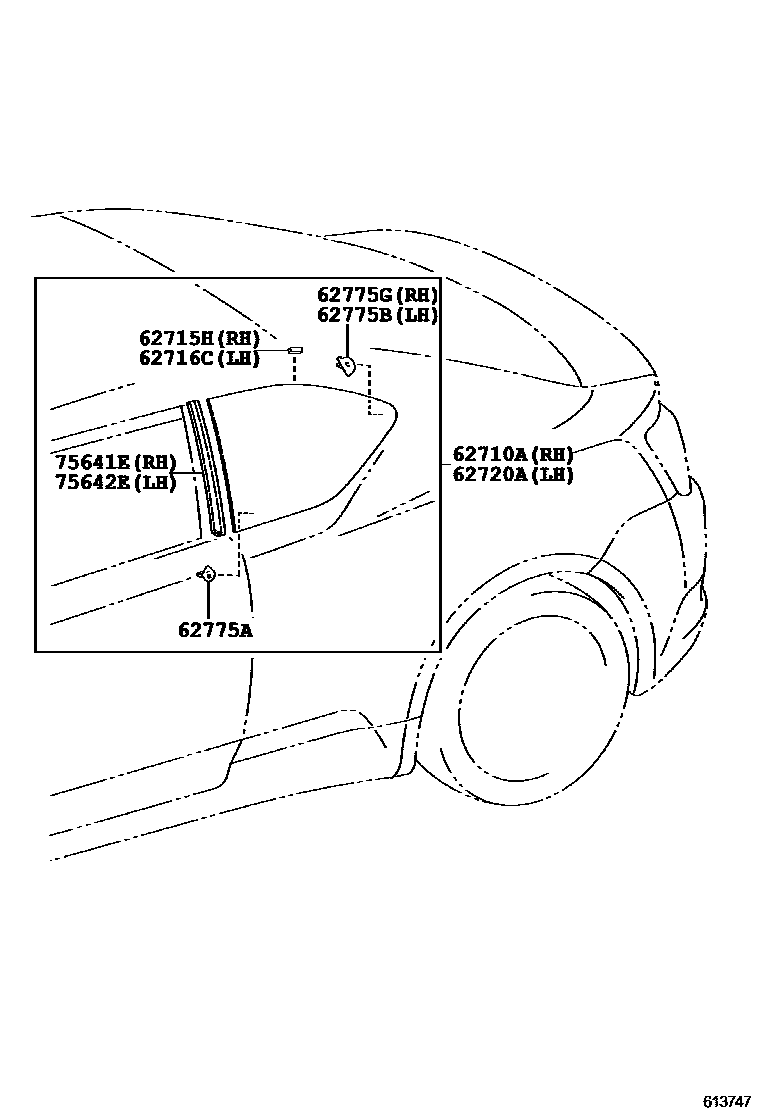

Parts diagram

62710AWINDOW ASSY, QUARTER, RH

main62710-21230i201008-201306

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

main68294-26030i201008-201306

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main68294-26030i201008-201306

62720AWINDOW ASSY, QUARTER, LH

main62720-21240i201008-201306

62775ACLIP, QUARTER WINDOW

main62775-21020×2i201008-201306

62775BCLIP, QUARTER WINDOW, LH

main62775-21040i201008-201306

62775GCLIP, QUARTER WINDOW, RH

main62775-21030i201008-201306

75641EMOULDING, QUARTER WINDOW, RH

main75641-21010i201008-201306

75642EMOULDING, QUARTER WINDOW, LH

main75642-21010i201008-201306

9 parts on this diagram · 1 diagram in section
