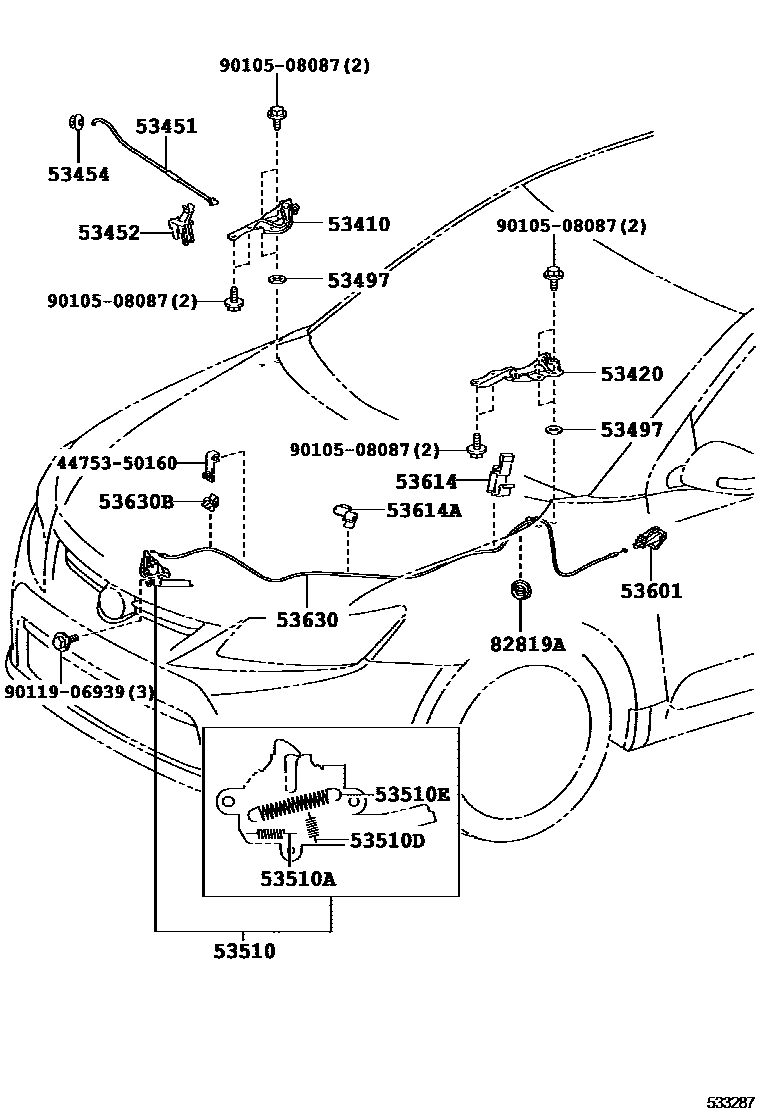

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-21090iAGT20..6FC201008-201305

53420HINGE ASSY, HOOD, LH

main53420-21090iAGT20..6F201008-201304

53451ROD, HOOD SUPPORT

main53440-21030iAGT20..6F201008-201304

53452HOLDER, HOOD STAY

main53452-21010iAGT20..6F201008-201304

53454CLIP, HOOD SUPPORT ROD

main53454-12030iAGT20..6F201008-201304

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iAGT20..6F201008-201304

T=2.0

main53497-42010×4iAGT20..6FC201008-201305

T=0.5

53510LOCK ASSY, HOOD

main53510-21040iAGT20..6F201008-201304

main53510-21060iAGT20201305-201607

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAGT20..6FC201008-201305

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAGT20..6F201008-201304

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iAGT20..6F201008-201304

WD=1.8,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iAGT20201008-201305

DK.GRAY,TRIM1#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-47030iAGT20..6F201008-201304

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-52010iAGT20..6F201008-201304

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-21020iAGT20..6F201008-201304

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iAGT20..6F201008-201304

82819AGROMMET, WIRE

main82817-47G30×2iAGT20..6F201008-201304

4475350160CLAMP, VACUUM RESERVOIR, NO.2

main44753-50160

9010508087

main90105-08087

9011906939

main90119-06939

19 parts on this diagram · 1 diagram in section
