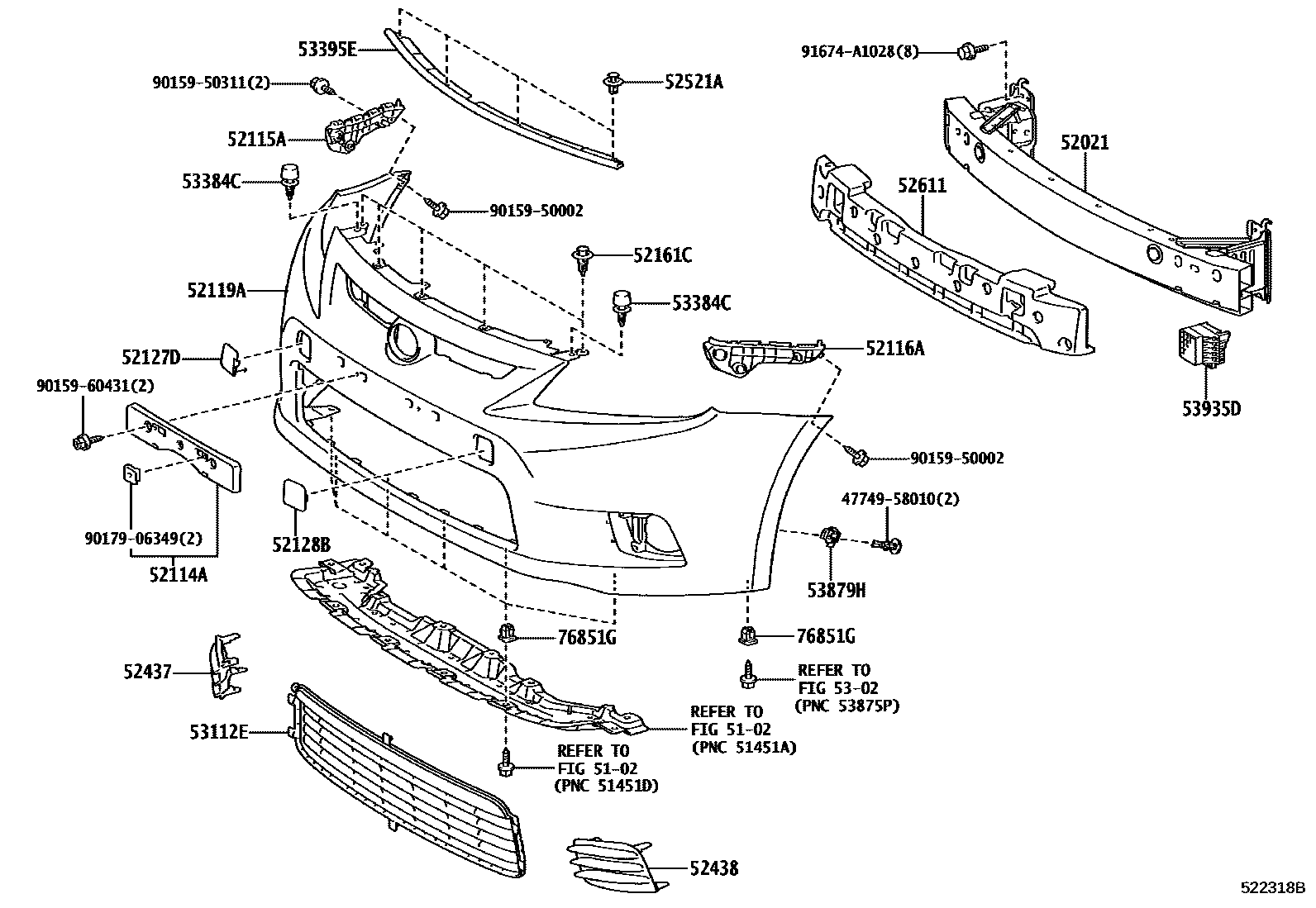

FRONT BUMPER & BUMPER STAY

0001 1 0003 1

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-21030iAGT20201008-201306

main52021-21060iAGT20201305-201607

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-21040iAGT20201008-201306

main52114-21060iAGT20201305-201607

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-21030iAGT20201008-201607

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-21030iAGT20201008-201607

52119ACOVER, FRONT BUMPER

main52119-21916iAGT20201008-201306

PAINT REQ.

main52119-21923iAGT20201305-201607

PAINT REQ.

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-21080iAGT20201305-201607

main52127-21902iAGT20201008-201306

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-21080iAGT20201305-201607

main52128-21901iAGT20201008-201306

52161CPIECE, FRONT BUMPER

main52161-16010iAGT20201008-201607

sub52161-0K040

52437COVER, FRONT BUMPER GUARD, RH

main52437-21020iAGT20201008-201306

main52437-21040iAGT20201305-201607

52438COVER, FRONT BUMPER GUARD, LH

main52438-21020iAGT20201008-201306

main52438-21040iAGT20201305-201607

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05063-C0iAGT20201008-201306

BLACK

sub90467-05063

52611ABSORBER, FRONT BUMPER ENERGY

main52611-21040iAGT20201008-201306

main52611-21060iAGT20201305-201607

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53102-21010iAGT20201305-201607

NO PAINT REQ.

main53112-21050iAGT20201008-201306

NO PAINT REQ.

53384CCUSHION, HOOD, CENTER

main53384-68010iAGT20201008-201306

53395ESEAL, HOOD TO FRONT END PANEL

main53395-21020iAGT20201008-201306

main53395-21030iAGT20201305-201607

53879HRETAINER, FRONT FENDER LINER

main53879-58010iAGT20201008-201607

53935DPROTECTOR, FRONT END PANEL

main53935-21010iAGT20201008-201607

76851GGROMMET, SCREW, NO.1

main90189-06193iAGT20201008-201607

4774958010CLIP, PIN HOLD

main47749-58010

9015950002

main90159-50002

9015950311

main90159-50311

9015960431

main90159-60431

9017906349

main90179-06349

91674A1028

main91674-A1028

26 parts on this diagram · 2 diagrams in section
