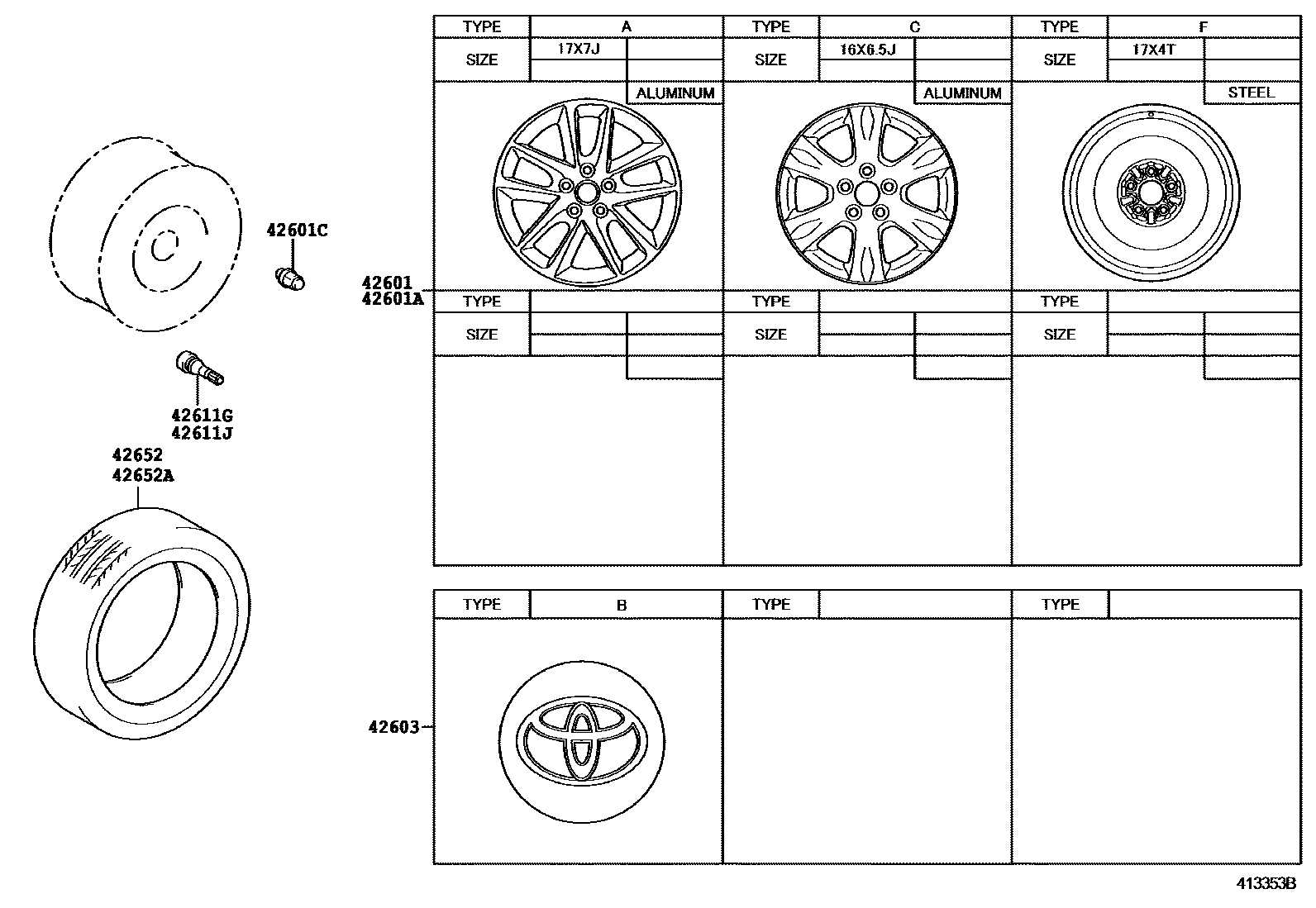

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-21200iAGT20..GCC,GEN201008-201607

17X7J, #,TYPE A:REFER ILLUST.

main42611-72030iAGT20..CHI201102-201405

16X6.5J, #,TYPE C:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-21200iAGT20..GCC,GEN201008-201607

17X7J, #,TYPE A:REFER ILLUST.

main42611-53320iAGT20..CHI201306-201405

17X4T,TYPE F:REFER ILLUST.

main42611-72030iAGT20..CHI201102-201306

16X6.5J, #,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iAGT20201008-201607

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12730iAGT20201008-201607

TYPE B:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iAGT20201008-201607

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAGT20201008-201607

42652TIRE

main42652-21140iAGT20..GCC,GEN201008-201607

215/50R17,*Y/H

main42652-53610iAGT20..CHI201102-201405

205/55R16 *B/S

42652ATIRE (FOR SPARE)

main42652-21140iAGT20..GCC,GEN201008-201607

215/50R17,*Y/H

main42652-47450iAGT20..CHI201306-201405

T145/70D17,*Y/H

main42652-53610iAGT20..CHI201102-201306

205/55R16 *B/S

8 parts on this diagram · 2 diagrams in section
