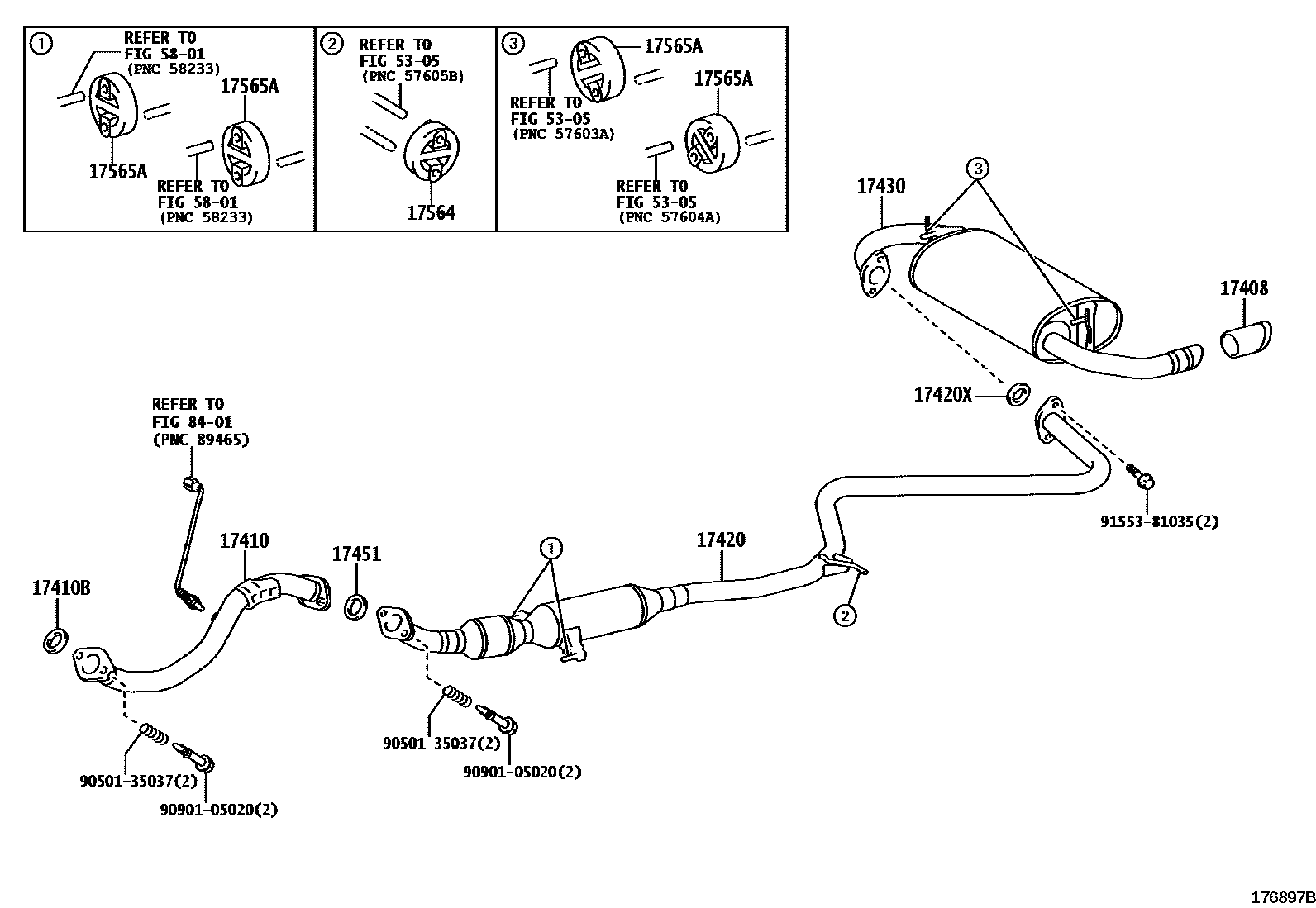

EXHAUST PIPE

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-46020i2ARFE..AGT20201008-201607

17410PIPE ASSY, EXHAUST, FRONT

main17410-36160i2ARFE..AGT20201008-201607

17410BGASKET, EXHAUST PIPE

main17451-28040i2ARFE..AGT20201408-201607

main17451-28070i2ARFE..AGT20201008-201407

17420PIPE ASSY, EXHAUST, CENTER

main17420-36080i2ARFE..AGT20201008-201607

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06045i2ARFE..AGT20201008-201607

17430PIPE ASSY, EXHAUST, TAIL

main17430-36110i2ARFE..AGT20201008-201306

main17430-36330i2ARFE..AGT20201305-201607

17451GASKET, EXHAUST PIPE

main17451-22060i2ARFE..AGT20201010-201607

main17451-36020i2ARFE..AGT20201008-201009

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-22030i2ARFE..AGT20201008-201607

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i2ARFE..AGT20201008-201607

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9050135037

main90501-35037

9090105020

main90901-05020

9155381035

main91553-81035

15 parts on this diagram · 1 diagram in section
