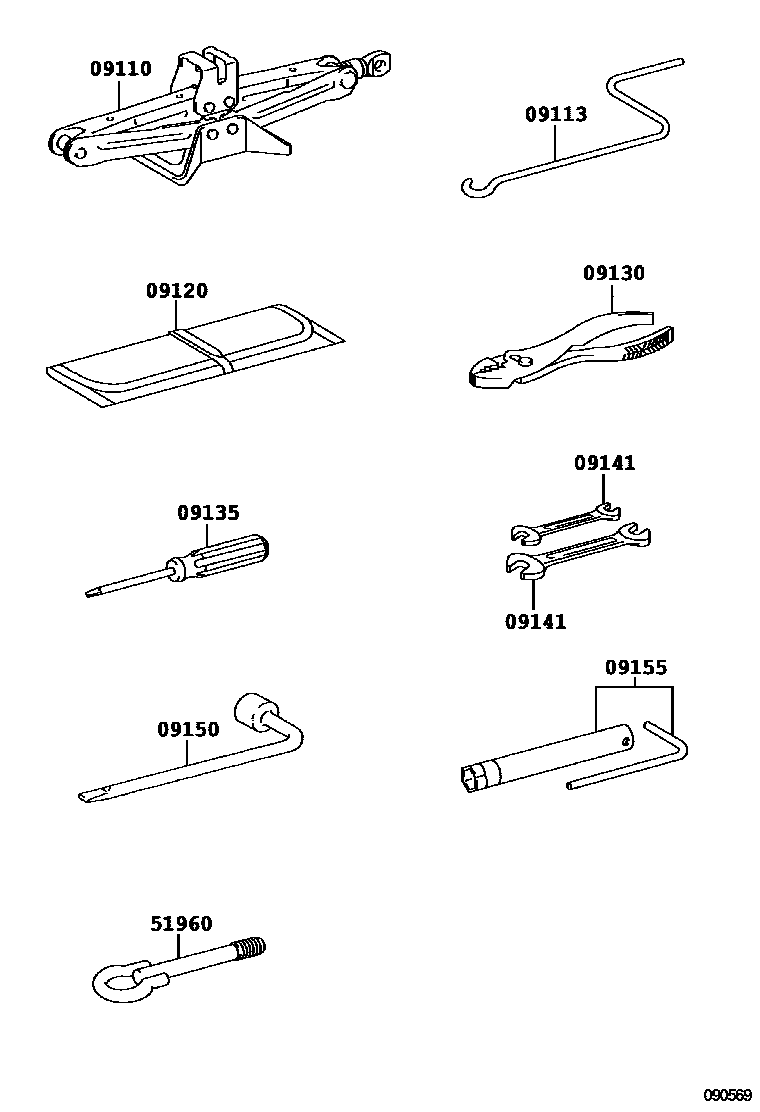

STANDARD TOOL

09110JACK ASSY

main09111-33030iAGT20201010-201601

sub09111-76010

main09111-50051iAGT20201008-201009

sub09111-76011

main09111-76010iAGT20201602-201607

sub09111-76011

09113HANDLE, JACK

main09113-13040iAGT20201008-201607

09120BAG, TOOL

main09120-16030iAGT20201008-201607

09130PLIERS

main99913-11500iAGT20201008-201607

09135DRIVER, SCREW

main99915-10700iAGT20201008-201607

09141SPANNER

main99914-10810iAGT20201008-201607

8 X 10

main99914-11214iAGT20201008-201607

12 X 14

09150WRENCH, HUB NUT BOX

main09150-35070iAGT20201008-201306

main09150-76010iAGT20201305-201607

09155WRENCH, SPARK PLUG

main09155-74010iAGT20201008-201607

51960HOOK ASSY, FRONT

main51960-12100iAGT20201507-201607

main51960-28020iAGT20201008-201306

main51960-52050iAGT20201305-201506

9 parts on this diagram · 1 diagram in section
