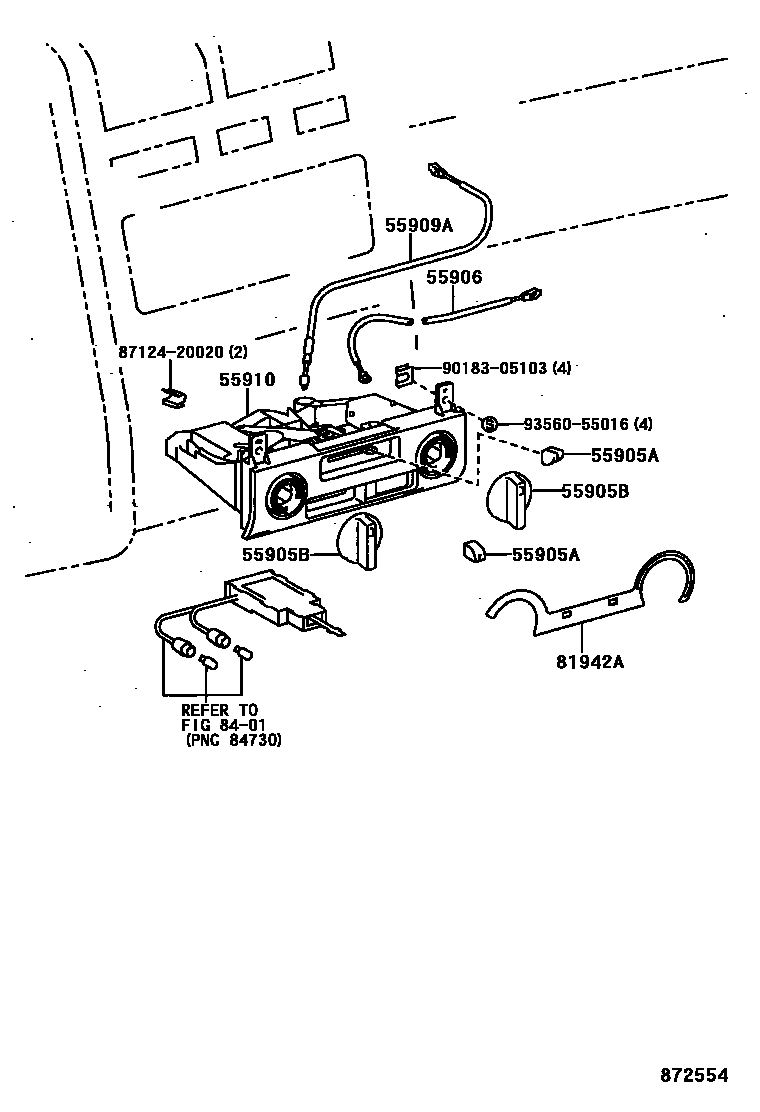

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1LEVER CONTROL TYPE 0002 1AIR DUCT

55905AKNOB, HEATER CONTROL

main55905-2B040×2iST191..JPP199211-199601

55905BKNOB, HEATER CONTROL, NO.2

main55905-2B070×2iST191..JPP199211-199601

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-20300iST191..JPP199211-199601

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-20210iST191..JPP199211-199601

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-20601iST191..JPP199211-199601

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-20390iST191..JPP199211-199601

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8712420020CLAMP, HEATER

main87124-20020

9018305103

main90183-05103

9356055016

main93560-55016

10 parts on this diagram · 2 diagrams in section
