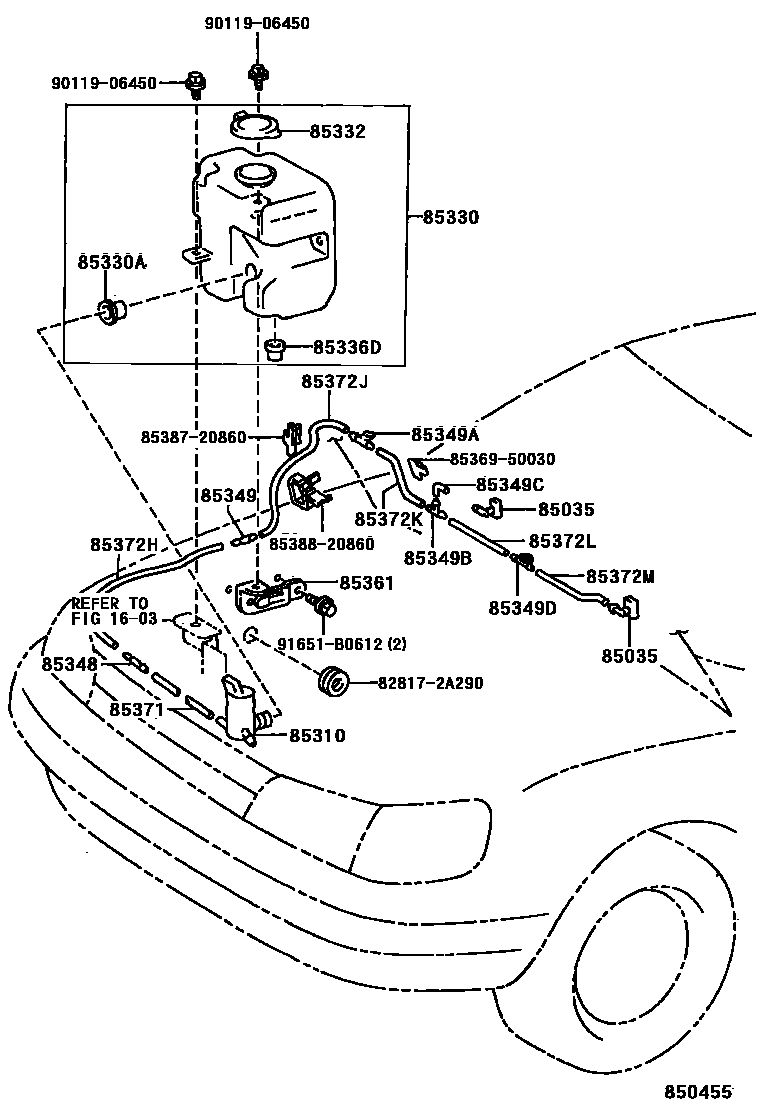

WINDSHIELD WASHER
1603RADIATOR & WATER OUTLET
85035NOZZLE SUB-ASSY, WASHER
RH
RH
LH
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85349AJOINT, WINDSHIELD WASHER HOSE, NO.2
85349BJOINT, WINDSHIELD WASHER HOSE, NO.3
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
85349DJOINT, WINDSHIELD WASHER HOSE, NO.4
85361HOLDER, WINDSHIELD WASHER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1800(*H,L=360)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=30)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1800(*H,L=1130)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1800(*H,L=310)
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
L=1800(*H,L=230)
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
L=1450(*H,L=360)
828172A290PROTECTOR, WIRING HARNESS, NO.1
main82817-2A290
8536950030CLAMP
main85369-50030
8538720860CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-20860
8538820860CLAMP NO.2 (FOR WINDSEIELD WASHER)
main85388-20860
9011906450
main90119-06450
91651B0612
main91651-B0612
26 parts on this diagram · 1 diagram in section
