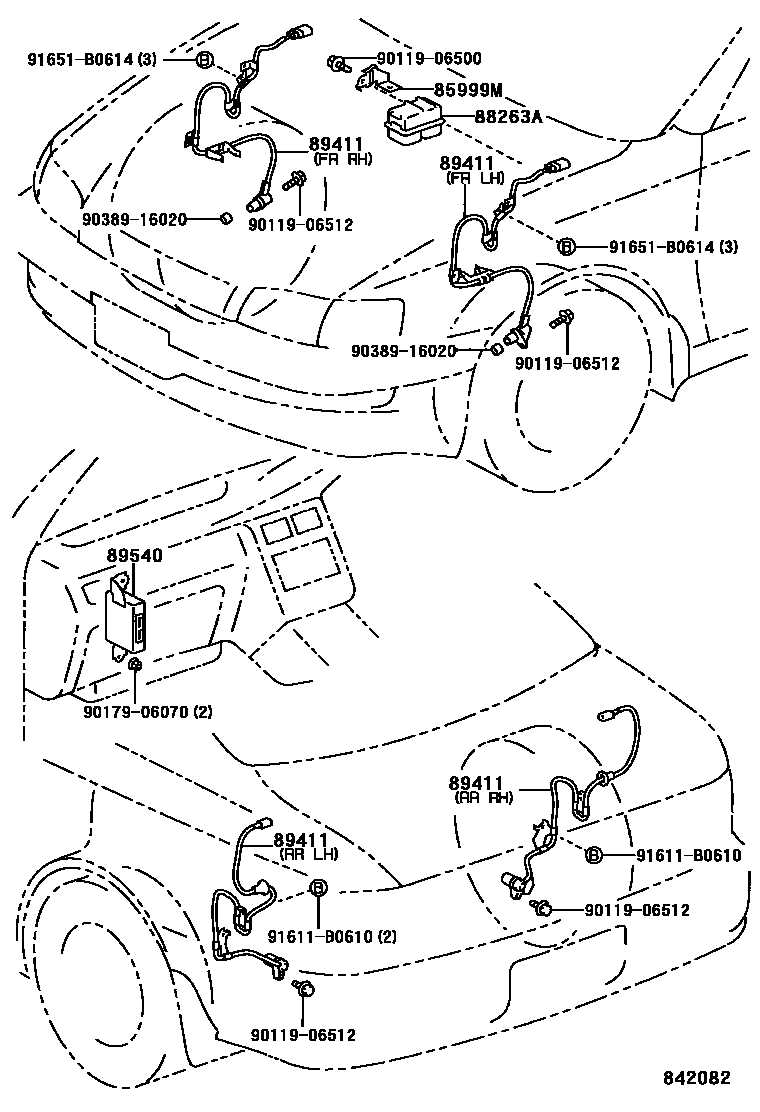

ABS & VSC

85999MBRACKET, RELAY

main85999-20500iST191..JPP199211-199601

88263ARELAY, SKID CONTROL

main88263-12070iST191..JPP199211-199407

main88263-32060iST191..JPP199407-199601

89411SENSOR, SPEED

main89542-20080iST191..JPP199211-199601

FRONT RH

main89543-20080iST191..JPP199211-199601

FRONT LH

main89545-32030iST191..JPP199211-199601

REAR RH

main89546-32030iST191..JPP199211-199601

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89540-20250iST191..JPP199211-199601

9011906500

main90119-06500

9011906512

main90119-06512

9017906070

main90179-06070

9038916020

main90389-16020

91611B0610

main91611-B0610

91651B0614

main91651-B0614

10 parts on this diagram · 1 diagram in section
