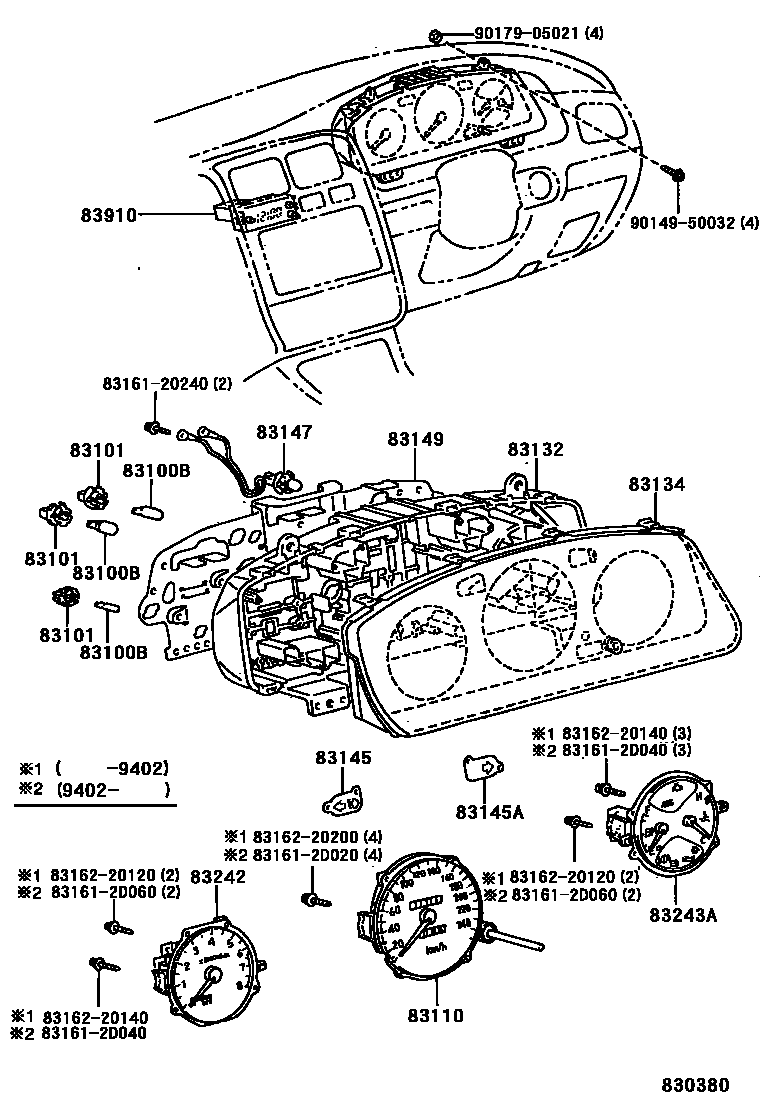

METER

0001 1W(TACHOMETER) 0002 1

83100BBULB, COMBINATION METER, NO.1

main83109-24030iST191..JPP199211-199601

12V3.4W W(GREEN CAP)

main90981-11018iST191..JPP199211-199601

12V 1.2W W/O SOCKET

main99132-12034iST191..JPP199211-199601

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iST191..JPP199211-199601

BULB:12V 1.4W

main83101-20040iST191..JPP199211-199601

BULB:12V 3.4W

main83101-20070iST191..JPP199211-199601

BULB:12V 3.4W,G.CAP

83110SPEEDOMETER ASSY

main83110-2D350iST191..JPP199211-199402

main83110-2D640iST191..JPP199402-199601

83132CASE, COMBINATION METER

main83132-20660iST191..JPP199211-199402

main83132-2D080iST191..JPP199402-199601

83134COVER, COMBINATION METER, NO.1

main83134-20240iST191..JPP199211-199601

83145LENS, METER, NO.1

main83145-2D640iST191..JPP199311-199601

main83146-20520iST191..JPP199211-199311

83145ALENS, METER, NO.2

main83145-2D620iST191..JPP199311-199601

main83146-20500iST191..JPP199211-199311

83147LAMP, METER NO.1

main83147-20040iST191..JPP199211-199601

83149PLATE, METER CIRCUIT

main83149-20340iST191..JPP199211-199601

83242TACHOMETER ASSY, ENGINE

main83242-20740iST191..JPP199211-199402

main83242-2D260iST191..JPP199402-199601

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-20700iST191..JPP199211-199402

main83243-2D100iST191..JPP199402-199601

83910CLOCK ASSY

main83910-20640iST191..JPP199211-199601

8316120240CASE, COMBINATION METER MIRROR, NO.1

main83161-20240

831612D020CASE, COMBINATION METER MIRROR, NO.1

main83161-2D020

831612D040CASE, COMBINATION METER MIRROR, NO.1

main83161-2D040

831612D060CASE, COMBINATION METER MIRROR, NO.1

main83161-2D060

8316220120CASE, COMBINATION METER MIRROR, NO.2

main83162-20120

8316220140CASE, COMBINATION METER MIRROR, NO.2

main83162-20140

8316220200CASE, COMBINATION METER MIRROR, NO.2

main83162-20200

9014950032

main90149-50032

9017905021

main90179-05021

21 parts on this diagram · 2 diagrams in section
