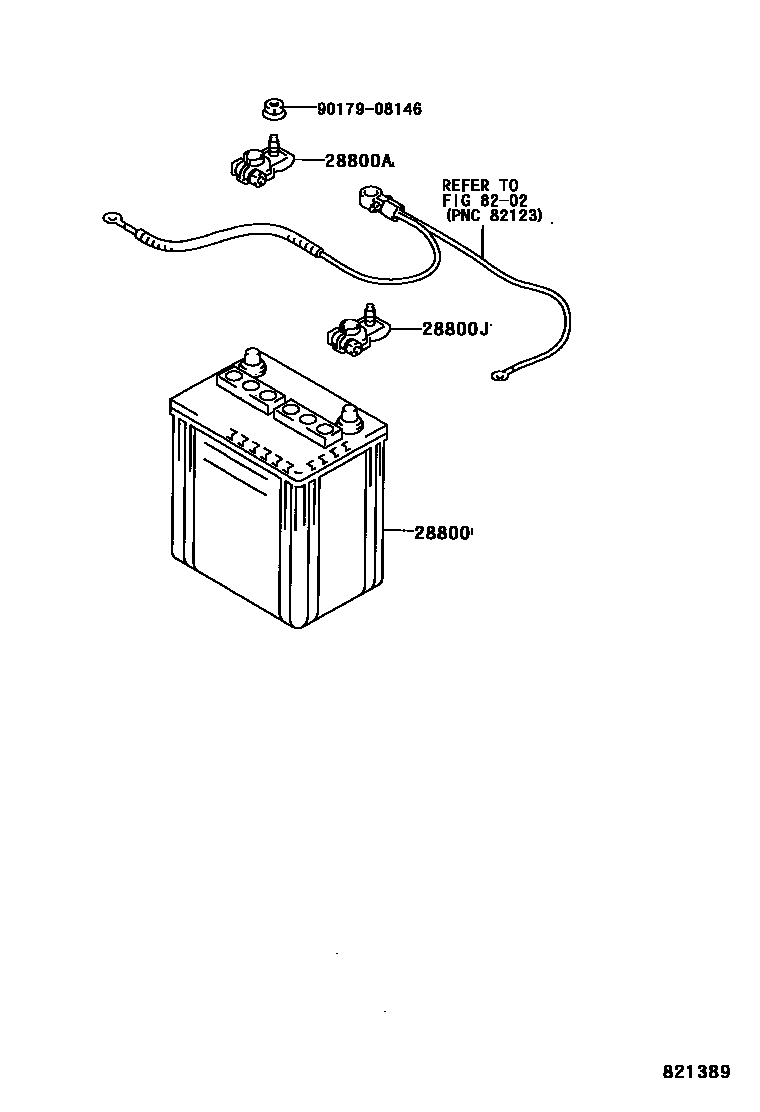

BATTERY & BATTERY CABLE

28800BATTERY

main28800-16130i3SFE..ST191..JPP199411-199601

32B24L(S)

main28800-31010i3SFE..ST191..JPP199211-199411

32C24L

main28800-31080i3SFE..ST191..JPP199211-199601

34B19L(S)

main28800-74060i3SFE..ST191..JPP199211-199601

34B19L

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i3SFE..ST191..JPP199211-199601

34B19L-MF

main90982-05035i3SFE..ST191..JPP199211-199601

28800JTERMINAL, BATTERY NEGATIVE

main90982-06026i3SFE..ST191..JPP199307-199601

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

5 parts on this diagram · 1 diagram in section
