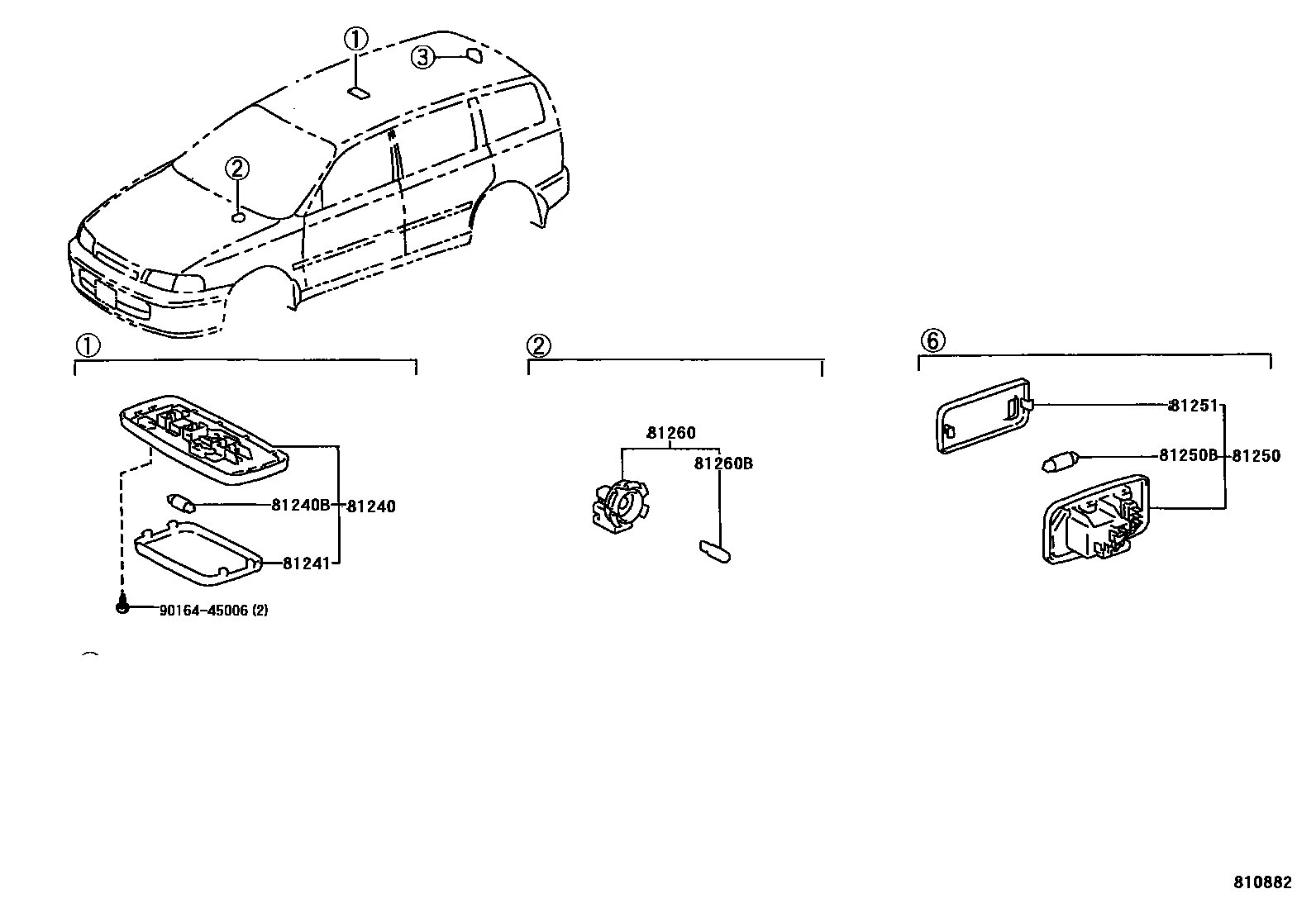

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12020iST191..JPP199304-199305

main81240-12020-B1iST191..JPP199305-199402

GRAY,TRIM2#,8#

sub81240-12020

main81240-12020-B1iST191..JPP199402-199601

GRAY,TRIM1#,8#

sub81240-12020

main81240-20090-B0iST191..JPP199211-199304

GRAY,TRIM2#,8#

sub81240-20090

81240BBULB, ROOM LAMP, NO.1

main99132-12100iST191..JPP199211-199601

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-20090iST191..JPP199211-199601

81250LAMP ASSY, ROOM, NO.2

main81250-13020-B0iST191..JPP199211-199402

GRAY,TRIM2#,8#

sub81250-13020

main81250-13020-B0iST191..JPP199402-199601

GRAY,TRIM1#,8#

sub81250-13020

81250BBULB, ROOM LAMP, NO.2

main99132-13050iST191..JPP199211-199601

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030iST191..JPP199211-199601

81260LAMP ASSY, GLOVE BOX

main81260-33010iST191..JPP199211-199601

81260BBULB(FOR GLOVE BOX)

main90981-11018iST191..JPP199211-199601

12V 1.2W W/O SOCKET

9016445006

main90164-45006

9 parts on this diagram · 1 diagram in section
