ACCELERATOR LINK

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20140iST191..JPP199211-199601

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26054iST191..JPP199211-199601

78111PEDAL, ACCELERATOR

main78111-32010iST191..JPP199211-199601

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iST191..JPP199211-199601

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iST191..JPP199211-199601

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20550iST191..JPP199211-199601

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2B880iST191..JPP199211-199307

main78180-2B881iST191..JPP199307-199601

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20170iST191..JPP199211-199601

9011906744

main90119-06744

91511B0814

main91511-B0814

91651B0614

main91651-B0614

9165260630

main91652-60630

9616000400

main96160-00400

9616000600

main96160-00600

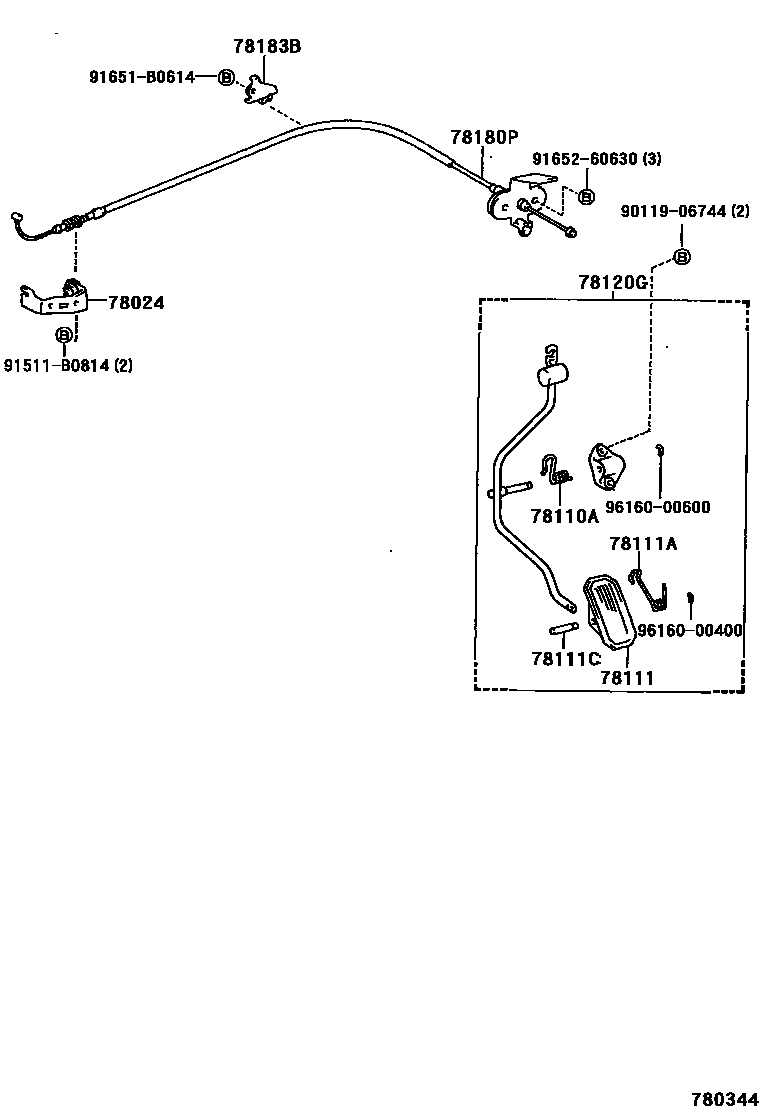

14 parts on this diagram · 1 diagram in section
