FRONT SEAT & SEAT TRACK

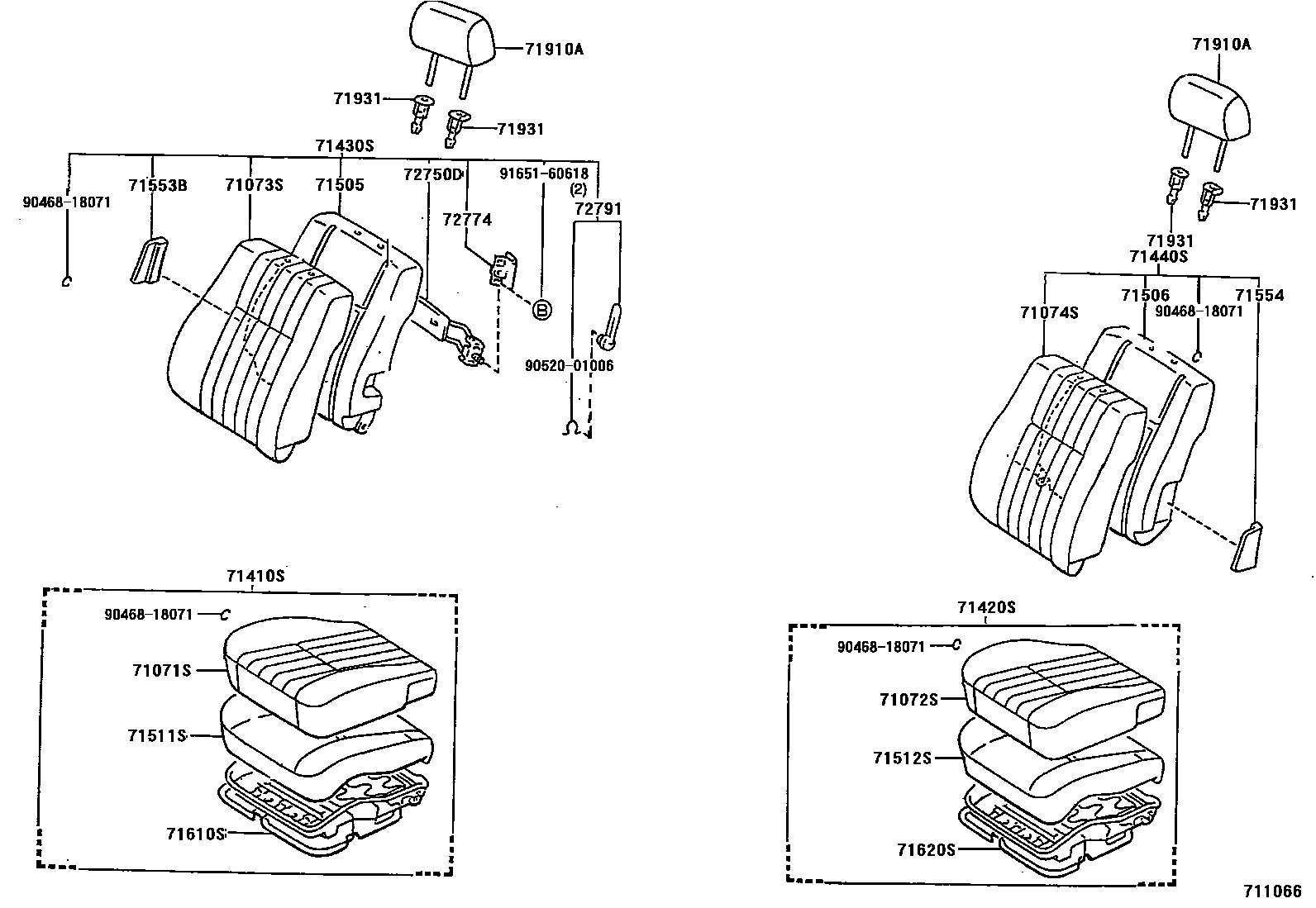

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-2G110-B0i199211-199402
W(VERTICAL ADJUSTER),GRAY,TRIM2#
main71071-2G110-J0i199211-199303
W(VERTICAL ADJUSTER),DK.BLUE,TRIM8#
main71071-2G110-J1i199307-199402
W(VERTICAL ADJUSTER),DK.BLUE,TRIM8#
main71071-2G111-B1i199402-199601
W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71071-2G111-J2i199402-199601
W(VERTICAL ADJUSTER),DK. BLUE,TRIM8#
main71071-2G250-B0i199211-199402
GRAY,TRIM2#
main71071-2G250-J0i199211-199303
DK.BLUE,TRIM8#
main71071-2G250-J1i199307-199402
DK.BLUE,TRIM8#
main71071-2G251-B1i199402-199601
SHADOW GRAY,TRIM1#
main71071-2G251-J2i199402-199601
DK. BLUE,TRIM8#
main71071-2G450-J0i199303-199307
DK. BLUE,TRIM8#
main71071-2G460-J0i199303-199307
W(VERTICAL ADJUSTER),DK. BLUE,TRIM8#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-2D640-B0i199211-199402
GRAY,TRIM2#
main71072-2D640-J0i199211-199303
DK.BLUE,TRIM8#
main71072-2D640-J1i199307-199402
DK.BLUE,TRIM8#
main71072-2D641-B1i199402-199601
SHADOW GRAY,TRIM1#
main71072-2D641-J2i199402-199601
DK. BLUE,TRIM8#
main71072-2D790-J0i199303-199307
DK. BLUE,TRIM8#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-2D830-B0i199211-199402
W(VERTICAL ADJUSTER),GRAY,TRIM2#
main71073-2D830-J0i199211-199303
W(VERTICAL ADJUSTER),DK.BLUE,TRIM8#
main71073-2D830-J2i199307-199402
W(VERTICAL ADJUSTER),DK.BLUE,TRIM8#
main71073-2D831-B2i199402-199601
W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71073-2D831-J3i199402-199601
W(VERTICAL ADJUSTER),DK. BLUE,TRIM8#
main71073-2D890-B0i199305-199402
GRAY,TRIM2#
main71073-2D890-B2i199211-199305
GRAY,TRIM2#
main71073-2D890-J2i199211-199303
DK.BLUE,TRIM8#
main71073-2D890-J3i199305-199402
DK.BLUE,TRIM8#
main71073-2D891-B3i199402-199601
SHADOW GRAY,TRIM1#
main71073-2D891-J5i199402-199601
DK.BLUE,TRIM8#
main71073-2G310-J2i199303-199305
DK.BLUE,TRIM8#
main71073-2G330-J0i199303-199307
W(VERTICAL ADJUSTER),DK. BLUE,TRIM8#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-2D890-B0i199305-199402
GRAY,TRIM2#
main71073-2D890-B2i199211-199305
GRAY,TRIM2#
main71073-2D890-J2i199211-199303
DK.BLUE,TRIM8#
main71073-2D890-J3i199305-199402
DK.BLUE,TRIM8#
main71073-2D891-B3i199402-199601
SHADOW GRAY,TRIM1#
main71073-2D891-J5i199402-199601
DK.BLUE,TRIM8#
main71073-2G310-J2i199303-199305
DK.BLUE,TRIM8#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-2G610-C3i199211-199402
***,W(VERTICAL ADJUSTER),BLACK,TRIM2#
main71410-2G610-J3i199211-199402
***,W(VERTICAL ADJUSTER),DK. BLUE,TRIM8#
main71410-2G611-B0i199402-199601
W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71410-2G611-J0i199402-199601
W(VERTICAL ADJUSTER),DK.BLUE,TRIM8#
main71410-2G790-C3i199211-199402
***,BLACK,TRIM2#
main71410-2G790-J3i199211-199402
***,DK. BLUE,TRIM8#
main71410-2G791-B0i199402-199601
SHADOW GRAY,TRIM1#
main71410-2G791-J0i199402-199601
DK.BLUE,TRIM8#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-2G400-C3i199211-199402
***,BLACK,TRIM2#
main71420-2G400-J3i199211-199402
***,DK. BLUE,TRIM8#
main71420-2G401-B0i199402-199601
SHADOW GRAY,TRIM1#
main71420-2G401-J0i199402-199601
DK.BLUE,TRIM8#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-2G500-C0i199305-199402
BLACK,TRIM2#
main71430-2G500-C3i199211-199305
***,BLACK,TRIM2#
main71430-2G500-J0i199305-199402
DK.BLUE,TRIM8#
main71430-2G500-J3i199211-199305
***,DK. BLUE,TRIM8#
main71430-2G501-B0i199402-199601
SHADOW GRAY,TRIM1#
main71430-2G501-J0i199402-199601
DK.BLUE,TRIM8#
main71430-2G510-C0i199305-199402
W(VERTICAL ADJUSTER),BLACK,TRIM2#
main71430-2G510-C3i199211-199305
***,W(VERTICAL ADJUSTER),BLACK,TRIM2#
main71430-2G510-J0i199305-199402
W(VERTICAL ADJUSTER),DK.BLUE,TRIM8#
main71430-2G510-J3i199211-199305
***,W(VERTICAL ADJUSTER),DK. BLUE,TRIM8#
main71430-2G511-B0i199402-199601
W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71430-2G511-J0i199402-199601
W(VERTICAL ADJUSTER),DK.BLUE,TRIM8#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71430-2G500-C0i199305-199402
BLACK,TRIM2#
main71430-2G500-C3i199211-199305
***,BLACK,TRIM2#
main71430-2G500-J0i199305-199402
DK.BLUE,TRIM8#
main71430-2G500-J3i199211-199305
***,DK. BLUE,TRIM8#
main71430-2G501-B0i199402-199601
SHADOW GRAY,TRIM1#
main71430-2G501-J0i199402-199601
DK.BLUE,TRIM8#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-20210i199211-199601
main71505-20220i199211-199601
W(VERTICAL ADJUSTER)
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71505-20210i199211-199601
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-20620i199211-199601
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-20620i199211-199601
71553BPAD, FRONT SEATBACK, B
main71553-20230i199402-199601
RH,PLANT.NO.A41
main71553-21020i199211-199308
W(VERTICAL ADJUSTER),RH,PLANT.NO.C21-C24
main71554-20200i199211-199601
LH,PLANT.NO.A41
main71554-20210i199211-199601
W(VERTICAL ADJUSTER),LH,PLANT.NO.A41
main71554-21020i199211-199308
LH,PLANT.NO.C21-C24
main71554-21030i199211-199308
W(VERTICAL ADJUSTER),LH,PLANT.NO.C21-C24
71554PAD, FRONT SEATBACK, C
main71553-20230i199211-199601
RH,PLANT.NO.A41
main71553-21020i199211-199308
RH,PLANT.NO.C21-C24
main71554-20200i199211-199601
LH,PLANT.NO.A41
main71554-21020i199211-199308
LH,PLANT.NO.C21-C24
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-20490i199211-199601
W(VERTICAL ADJUSTER)
main71610-20510i199211-199601
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-20290i199211-199601
71910AHEADREST ASSY, FRONT SEAT
main71910-2B580-B0×2i199211-199402
GRAY,TRIM2#
main71910-2B580-J0×2i199211-199402
DK.BLUE,TRIM8#
main71910-2B581-B2×2i199402-199411
SHADOW GRAY,TRIM1#
main71910-2B581-J3×2i199402-199411
DK. BLUE,TRIM8#
main71910-2B890-B0×2i199411-199601
SHADOW GRAY,TRIM1#
main71910-2B890-J0×2i199411-199601
DK. BLUE,TRIM8#
71931SUPPORT, FRONT SEAT HEADREST
main71930-10070-22×2i199211-199402
W(LOCK),BLACK,TRIM2#
main71930-10070-J0×2i199211-199411
W(LOCK),DARK BLUE,TRIM8#
main71930-10070-P0×2i199402-199411
W(LOCK),SHADOW GRAY,TRIM1#
main71930-32020-B0×2i199411-199601
W(LOCK),SHADOW GRAY,TRIM1#
main71930-32020-J0×2i199411-199601
W(LOCK),DK.BLUE,TRIM8#
main71931-10020-22×2i199211-199402
W/O(LOCK),BLACK,TRIM2#
main71931-10020-J0×2i199211-199411
W/O(LOCK),DARK BLUE,TRIM8#
main71931-32020-B0×2i199411-199601
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-32020-J0×2i199411-199601
W/O(LOCK),DK.BLUE,TRIM8#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-12090i199211-199601
72774PROTECTOR, LUMBAR SUPPORT SPRING
main72774-20060i199211-199601
72791LEVER, LUMBAR SUPPORT
main72791-20050-B2i199402-199601
SHADOW GRAY,TRIM1#
main72791-20050-C0i199211-199402
BLACK,TRIM2#
main72791-20050-J0i199211-199601
DK. BLUE,TRIM8#
9046818071
main90468-18071
9052001006
main90520-01006
9165160618
main91651-60618

24 parts on this diagram · 2 diagrams in section
