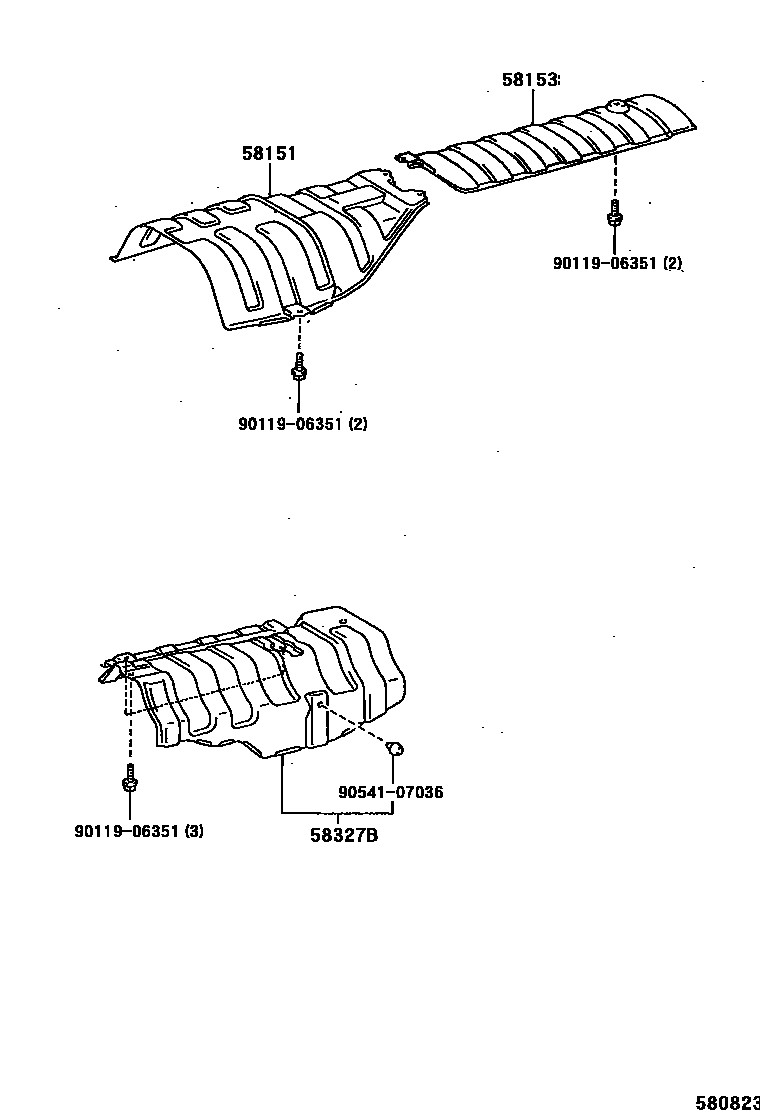

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-20080iST191..JPP199211-199311

main58151-20081iST191..JPP199311-199601

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-20100iST191..JPP199211-199601

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-20080iST191..JPP199211-199601

9011906351

main90119-06351

9054107036

main90541-07036

5 parts on this diagram · 1 diagram in section
