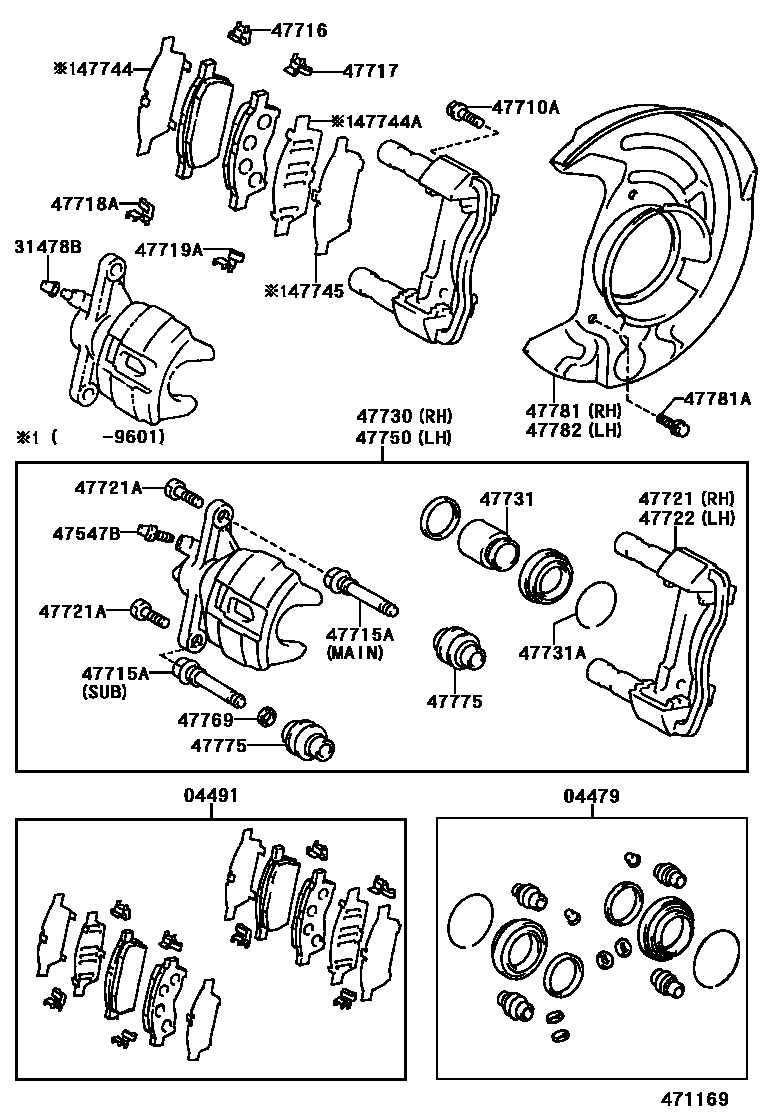

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20170iST191..JPP199211-199601

04491PAD KIT, DISC BRAKE, FRONT

main04491-20880iST191..JPP199211-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iST191..JPP199211-199601

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iST191..JPP199211-199601

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iST191..JPP199211-199601

*12-1.25PX25.8-19.5

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-50010×4iST191..JPP199211-199212

main47715-50030×2iST191..JPP199212-199601

MAIN

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33010×2iST191..JPP199211-199601

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33020×2iST191..JPP199211-199601

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-33010×2iST191..JPP199211-199601

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-33020×2iST191..JPP199211-199601

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20370iST191..JPP199211-199601

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iST191..JPP199211-199601

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20080iST191..JPP199211-199601

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20480iST191..JPP199211-199601

47731PISTON, FRONT DISC BRAKE

main47731-20190×2iST191..JPP199211-199601

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001×2iST191..JPP199211-199601

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20120×2iST191..JPP199211-199601

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-33010×2iST191..JPP199211-199601

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-33010×2iST191..JPP199211-199601

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20480iST191..JPP199211-199601

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iST191..JPP199211-199601

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-20080×4iST191..JPP199211-199601

sub47775-30070

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20280iST191..JPP199211-199601

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iST191..JPP199211-199601

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20280iST191..JPP199211-199601

25 parts on this diagram · 2 diagrams in section
