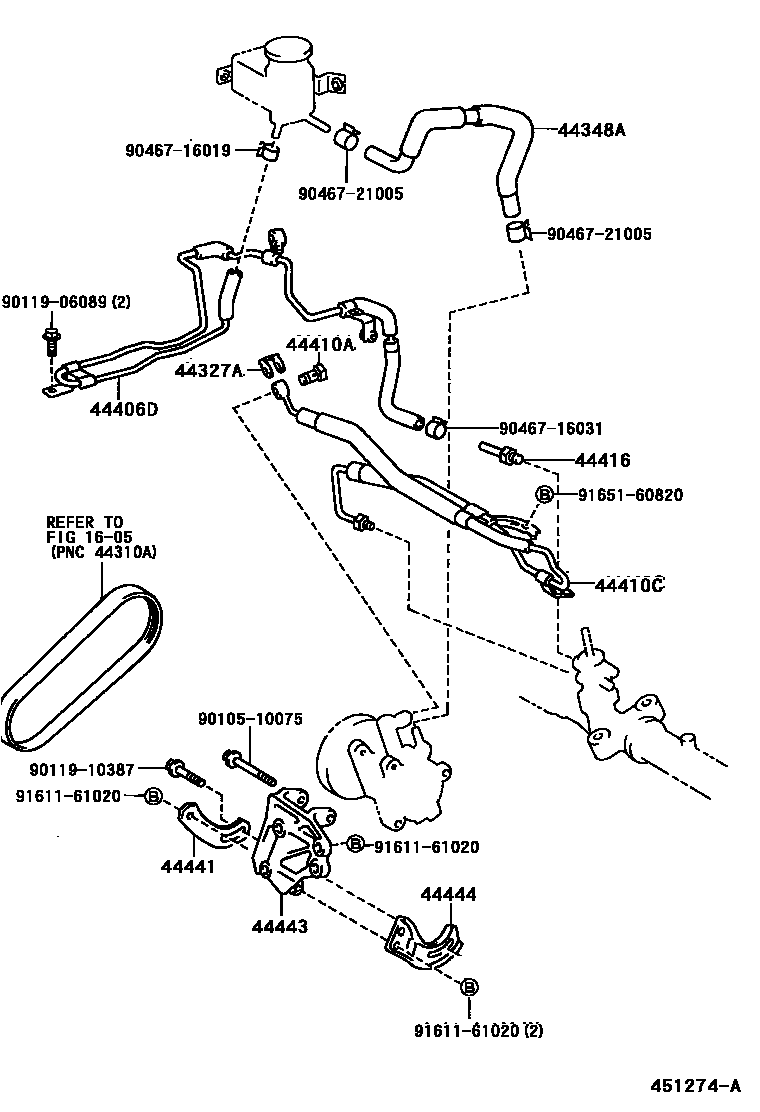

POWER STEERING TUBE
1605
44327AGASKET, PRESSURE PORT, NO.1
44348AHOSE, OIL RESERVOIR TO PUMP, NO.1
44406DTUBE SUB-ASSY, RETURN, NO.1
44410ABOLT, UNION(FOR PRESSURE FEED TUBE)
44410CTUBE ASSY, PRESSURE FEED, NO.1
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
44441BRACKET, PUMP, FRONT
44443BRACKET, PUMP
44444STAY, PUMP, REAR
9010510075
main90105-10075
9011906089
main90119-06089
9011910387
main90119-10387
9046716019
main90467-16019
9046716031
main90467-16031
9046721005
main90467-21005
9161161020
main91611-61020
9165160820
main91651-60820
18 parts on this diagram · 1 diagram in section
