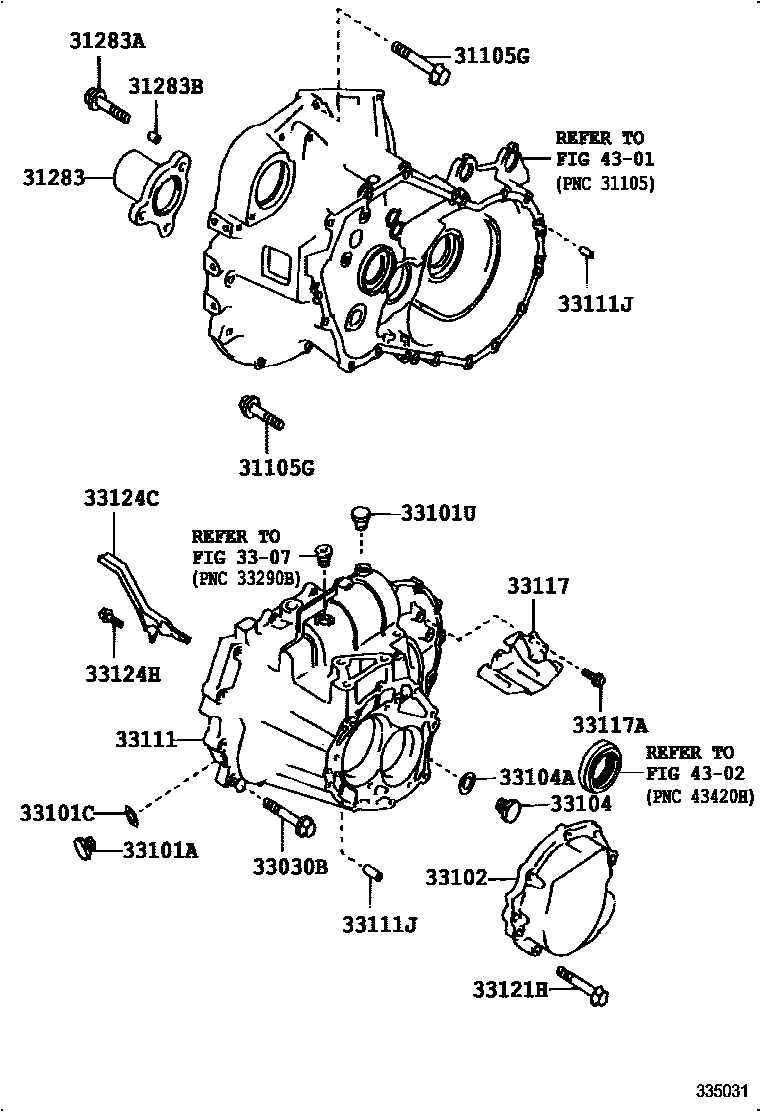

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040i199211-199302

*8-1.25PX18-15

sub91641-H0820

main90105-10077i199211-199601

*10-1.25PX43-26

main90119-12168i199211-199601

*12-1.25PX55-30

main91651-41022i199211-199601

*10-1.25PX22-22

31283RETAINER, CLUTCH RELEASE BEARING HUB

main31283-32010i199211-199601

31283ABOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90105-06023i199211-199601

sub91511-B0620

31283BPIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90253-08002i199211-199601

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042i199211-199601

*8-1.25PX45-27.5

sub90105-08430

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006i199306-199601

main90341-18033i199211-199306

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008i199211-199601

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133i199211-199601

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-33020i199211-199601

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i199211-199601

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008i199211-199601

33111CASE, MANUAL TRANSMISSION

main33111-33030i199211-199411

sub33111-33040

main33111-33031i199411-199601

sub33111-32030

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054i199211-199601

L=23,OD=8

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-32011i199211-199601

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040i199211-199601

sub91641-H0820

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273i199211-199601

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-33010i199211-199601

33124HBOLT(FOR OIL RECEIVER PIPE)

main91651-60618i199211-199601

4301

4302

21 parts on this diagram · 1 diagram in section
