V-BELT

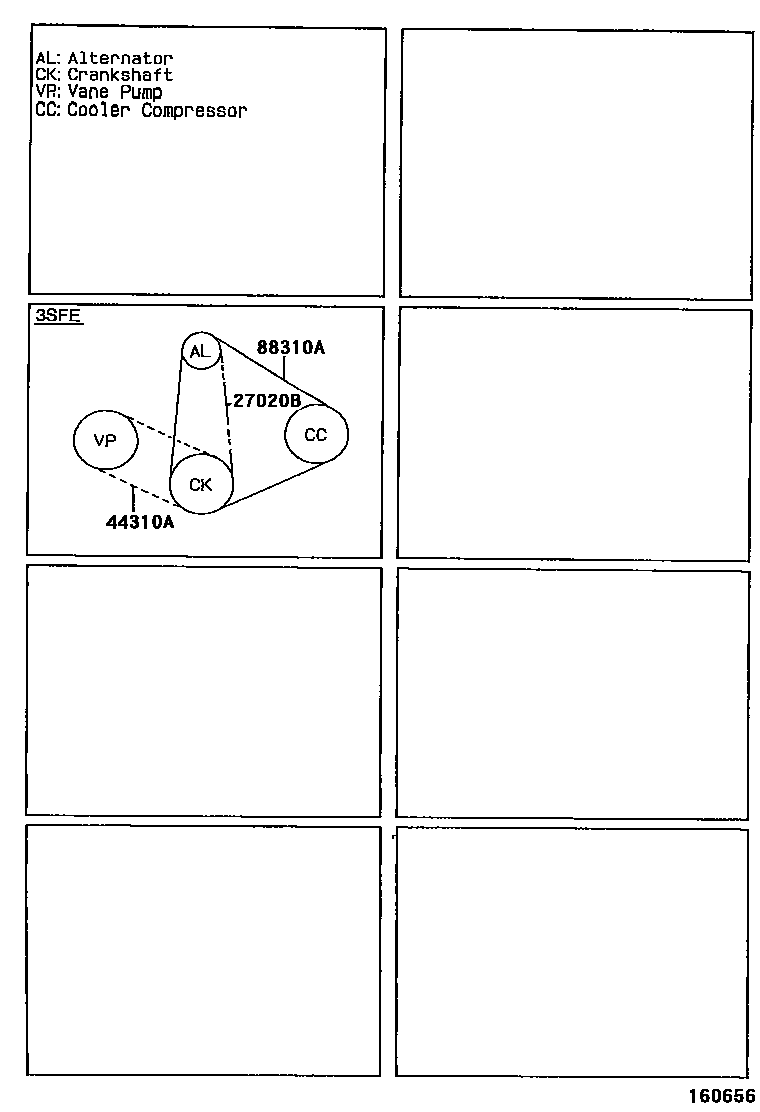

Parts diagram

27020BBELT, V(FOR ALTERNATOR)

main90916-02355i199211-199402

MITSUBOSHI

main90916-02356i199211-199402

BANDO

44310ABELT, V(FOR VANE PUMP)

main99363-70760i199211-199406

L=760

main99363-80760i199406-199601

L=760

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02344i199211-199601

L=1115,BANDO

main90916-02345i199211-199601

L=1115,MITSUBOSHI

3 parts on this diagram · 1 diagram in section
