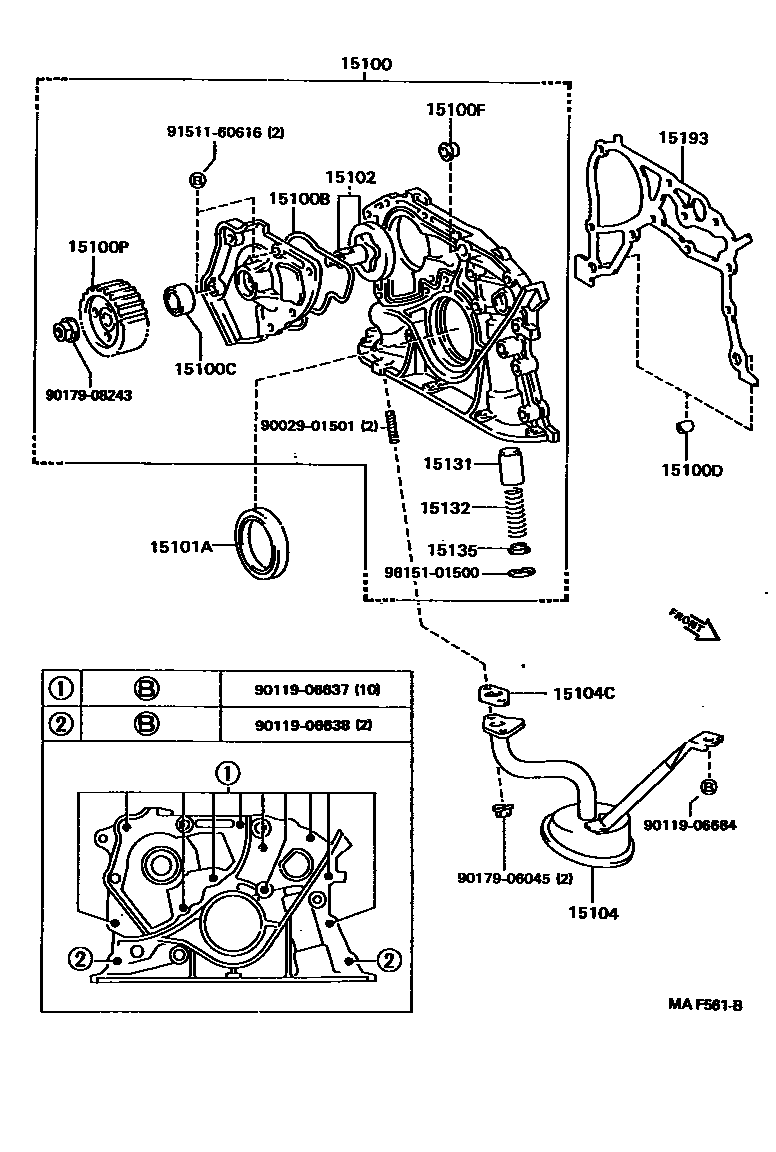

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-74010i3SFE..ST191..JPP199211-199508

main15100-74060i3SFE..ST191..JPP199508-199601

15100BRING, O(FOR OIL PUMP)

main15188-63010i3SFE..ST191..JPP199211-199304

main15188-88382i3SFE..ST191..JPP199304-199601

15100CSEAL(FOR OIL PUMP)

main15165-70010i3SFE..ST191..JPP199211-199304

main15165-74020i3SFE..ST191..JPP199304-199601

15100DPIN(FOR OIL PUMP SET)

main90253-09001×2i3SFE..ST191..JPP199211-199601

15100FBUSH (FOR OIL PUMP)

main90029-38302i3SFE..ST191..JPP199211-199601

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-74020i3SFE..ST191..JPP199211-199601

15101ASEAL(FOR CRANKSHAFT)

main90311-42026i3SFE..ST191..JPP199211-199601

15102ROTOR SET, OIL PUMP

main15102-63010i3SFE..ST191..JPP199211-199601

15104STRAINER SUB-ASSY, OIL

main15104-88380i3SFE..ST191..JPP199211-199601

15104CGASKET(FOR OIL STRAINER)

main15149-74020i3SFE..ST191..JPP199211-199309

main15149-74030i3SFE..ST191..JPP199309-199601

15131VALVE, OIL PUMP RELIEF

main15131-24010i3SFE..ST191..JPP199211-199601

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3SFE..ST191..JPP199211-199601

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i3SFE..ST191..JPP199211-199601

15193GASKET, OIL PUMP

main15197-63021i3SFE..ST191..JPP199211-199309

main15197-74030i3SFE..ST191..JPP199309-199508

main15197-74040i3SFE..ST191..JPP199508-199601

9002901501

main90029-01501

9011906637

main90119-06637

9011906638

main90119-06638

9011906684

main90119-06684

9017906045

main90179-06045

9017908243

main90179-08243

9151160616

main91511-60616

9615101500

main96151-01500

22 parts on this diagram · 2 diagrams in section
