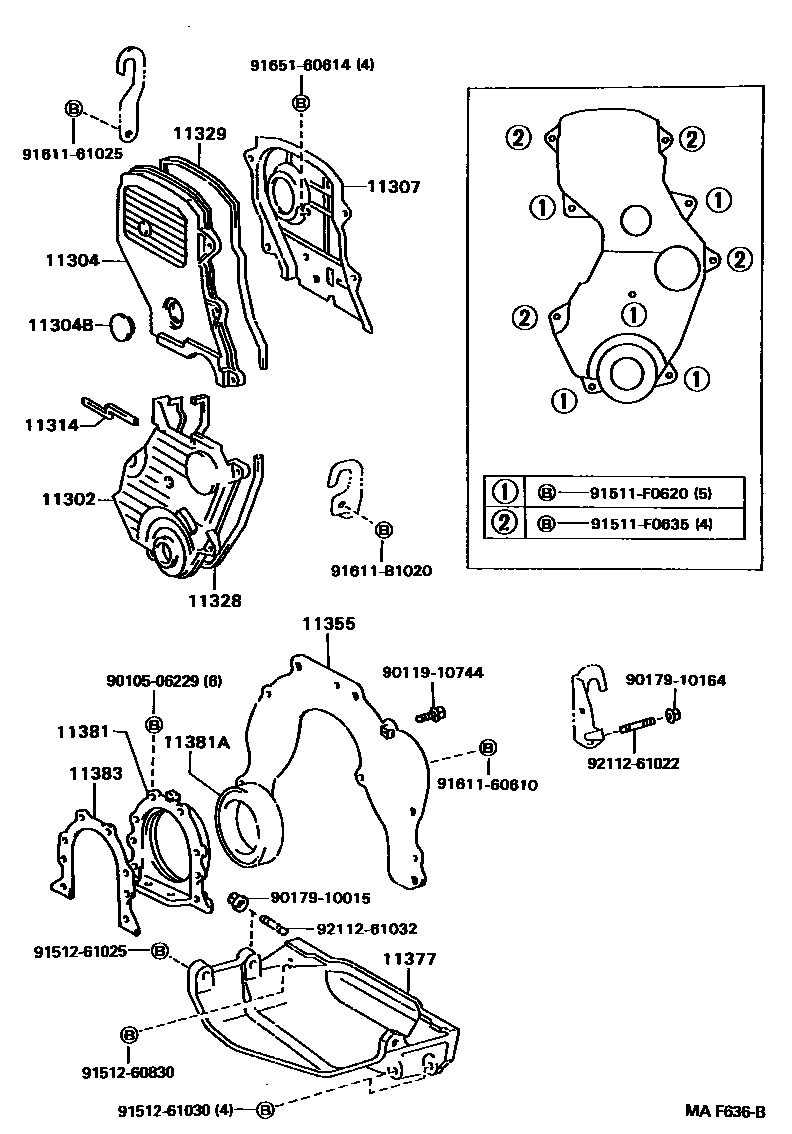

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-74011i3SFE..ST191..JPP199211-199402

main11302-74030i3SFE..ST191..JPP199402-199601

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-74030i3SFE..ST191..JPP199211-199402

main11303-74040i3SFE..ST191..JPP199402-199601

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01489i3SFE..ST191..JPP199211-199601

OD=33

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-74030i3SFE..ST191..JPP199211-199601

11314GASKET, TIMING CHAIN NO.2 COVER

main11319-63010i3SFE..ST191..JPP199211-199402

main11319-74020i3SFE..ST191..JPP199402-199601

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-74010i3SFE..ST191..JPP199211-199402

main11328-74040i3SFE..ST191..JPP199402-199601

11329GASKET, TIMING GEAR REAR COVER

main11329-74050i3SFE..ST191..JPP199211-199402

main11329-74070i3SFE..ST191..JPP199402-199601

11355PLATE, REAR END

main11355-74010i3SFE..ST191..JPP199211-199601

11377STIFFENER, REAR END PLATE

main11377-74030i3SFE..ST191..JPP199211-199601

11381RETAINER, ENGINE REAR OIL SEAL

main11381-63012i3SFE..ST191..JPP199211-199601

11381ASEAL, ENGINE REAR OIL

main90311-85006i3SFE..ST191..JPP199211-199601

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-74021i3SFE..ST191..JPP199211-199601

9010506229

main90105-06229

9011910744

main90119-10744

9017910015

main90179-10015

9017910164

main90179-10164

91511F0620

main91511-F0620

91511F0635

main91511-F0635

9151260830

main91512-60830

9151261025

main91512-61025

9151261030

main91512-61030

9161160610

main91611-60610

9161161025

main91611-61025

91611B1020

main91611-B1020

9165160614

main91651-60614

9211261022

main92112-61022

9211261032

main92112-61032

27 parts on this diagram · 1 diagram in section
