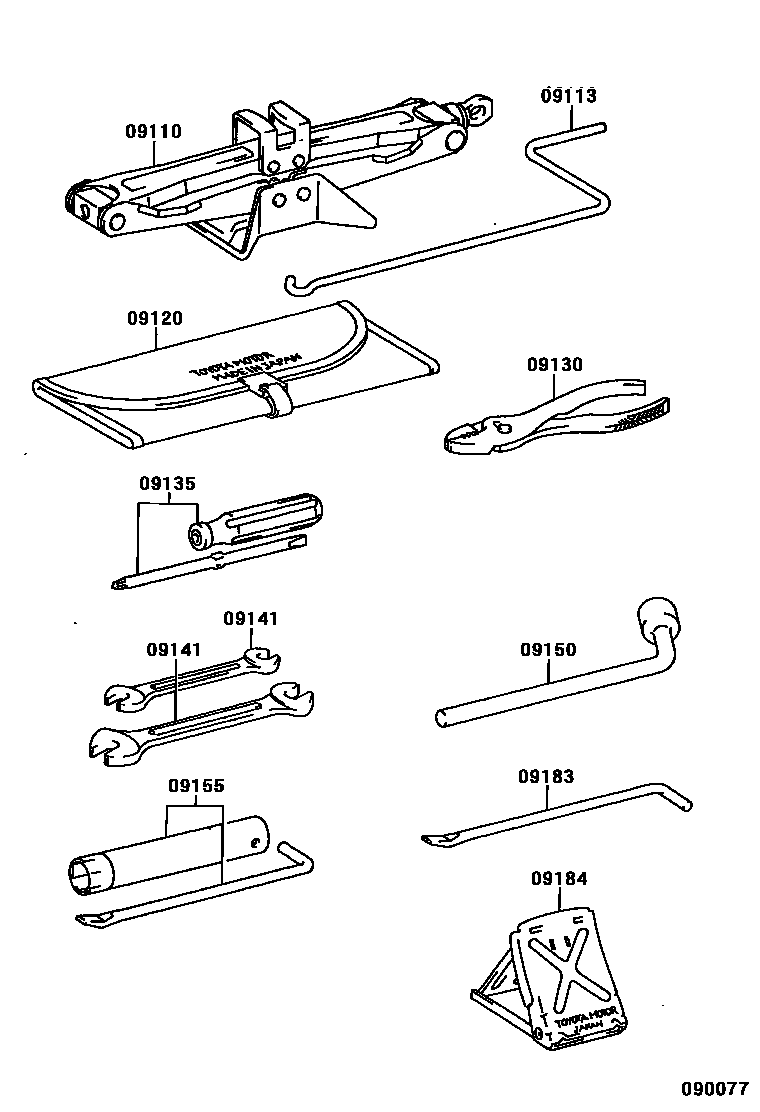

STANDARD TOOL

09110JACK ASSY

main09111-20110iST191..JPP199211-199601

sub09111-02020

09113HANDLE, JACK

main09113-20030iST191..JPP199305-199601

sub09113-20050

09120BAG, TOOL

main09120-16030iST191..JPP199305-199601

09130PLIERS

main99913-11500iST191..JPP199305-199601

09135DRIVER, SCREW

main99915-10700iST191..JPP199305-199601

09141SPANNER

main99914-10810iST191..JPP199305-199601

8 X 10

main99914-11214iST191..JPP199305-199601

12 X 14

09150WRENCH, HUB NUT BOX

main09150-26010iST191..JPP199211-199402

main09150-40010iST191..JPP199402-199601

09155WRENCH, SPARK PLUG

main09155-74010iST191..JPP199402-199601

main09155-74020iST191..JPP199211-199402

09183WRENCH, WHEEL CAP

main09183-00010iST191..JPP199211-199402

09184STOPPER, WHEEL

main09184-00010iST191..JPP199211-199601

10 parts on this diagram · 1 diagram in section
