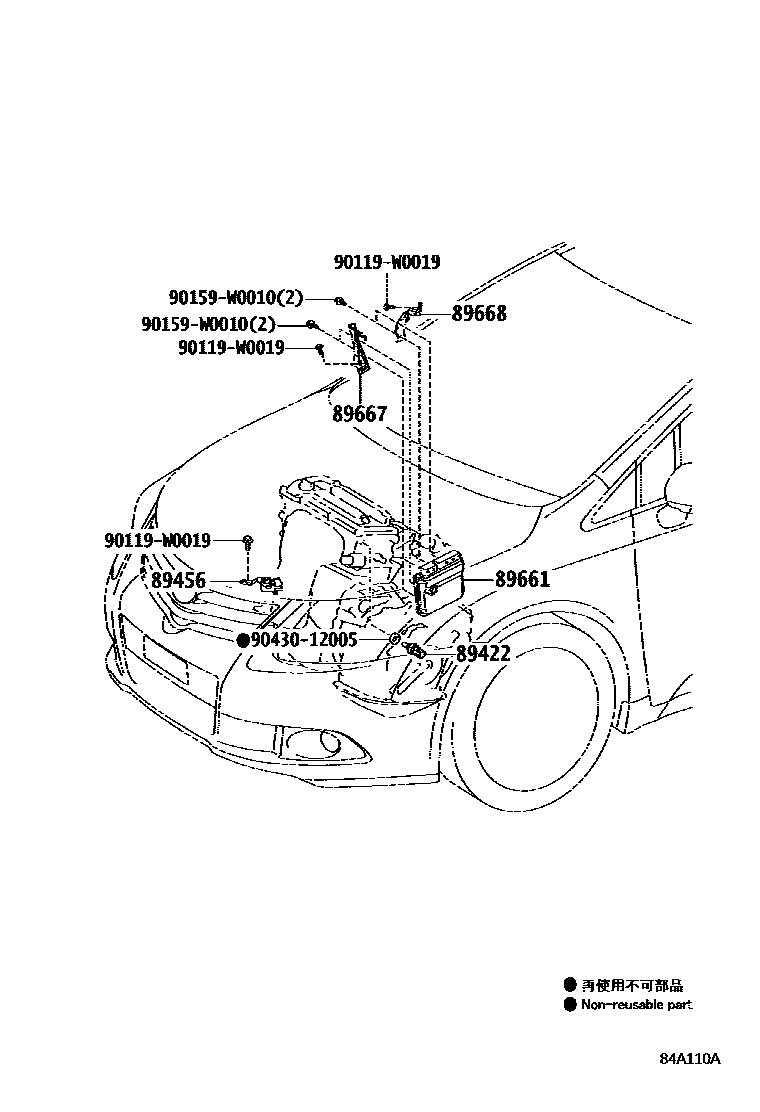

ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAZT270200811-201104

89456RESISTOR, VARIABLE

main89450-20050iAZT270200811-201104

89661COMPUTER, ENGINE CONTROL

main89661-05C90iAZT270200811-201104

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02180iAZT270200811-201104

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20390iAZT270..LHD200811-201104

main89668-20400iAZT270..RHD200811-201104

90119W0019

main90119-W0019

90159W0010

main90159-W0010

9043012005

main90430-12005

8 parts on this diagram · 1 diagram in section
