WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1SEAT 0009 1CLAMP & BRACKET 0010 1CABLE BOND 0011 1CONNECTOR 1/2 0012 1CONNECTOR 2/2

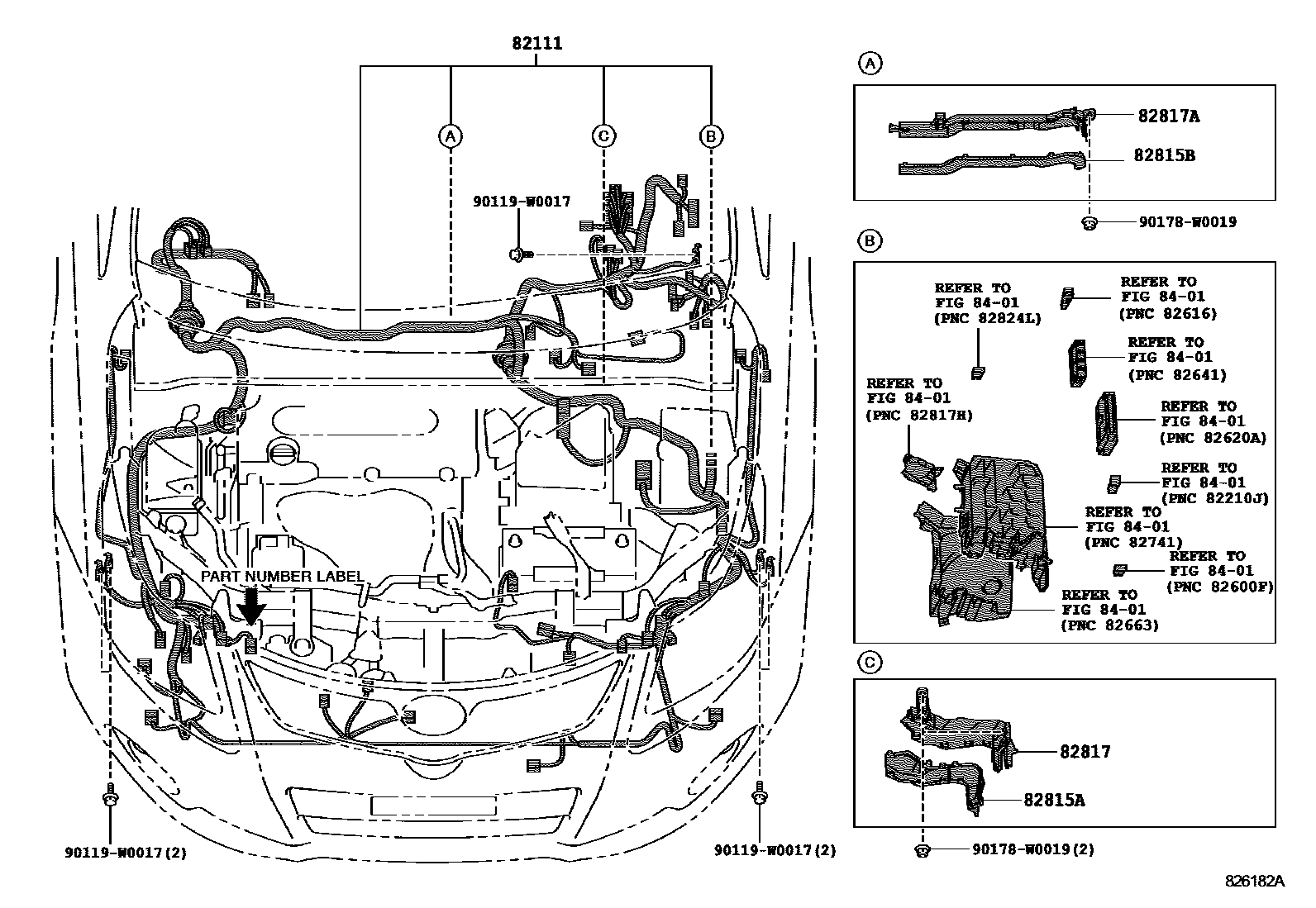

82111WIRE, ENGINE ROOM MAIN

main82111-05K30iAZT270..RHD200811-201001

main82111-05K31iAZT270..RHD201001-201104

main82111-05K40iAZT270..LHD200811-201001

main82111-05K41iAZT270..LHD201001-201104

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-02130iAZT270..LHD200811-201104

main82815-12150iAZT270..RHD200811-201104

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-02140iAZT270..LHD200811-201104

main82815-12160iAZT270..RHD200811-201104

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-02490iAZT270..LHD200811-201104

main82817-12B10iAZT270..RHD200811-201104

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-02500iAZT270..LHD200811-201104

main82817-12B20iAZT270..RHD200811-201104

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119W0017

main90119-W0017

90178W0019

main90178-W0019

8 parts on this diagram · 12 diagrams in section
