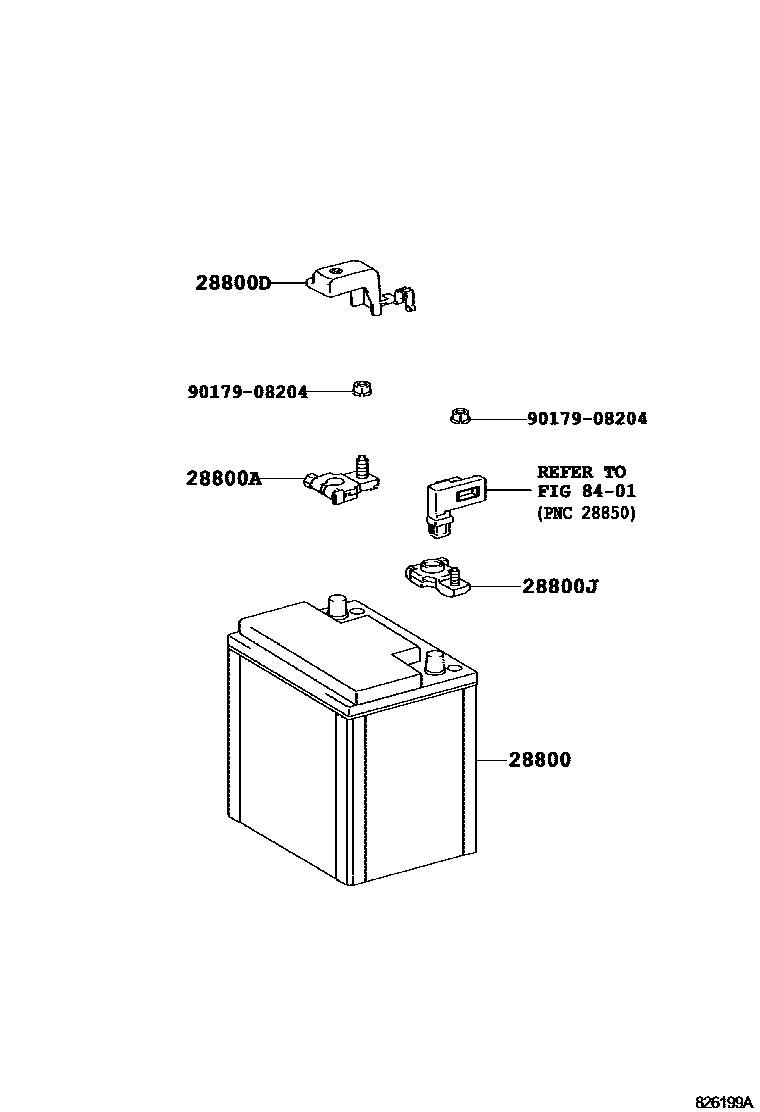

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0T010i1AZFE..AZT270200811-201104

LN2

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1AZFE..AZT270200811-201104

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i1AZFE..AZT270200811-201104

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i1AZFE..AZT270200811-201104

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908204

main90179-08204

6 parts on this diagram · 1 diagram in section
