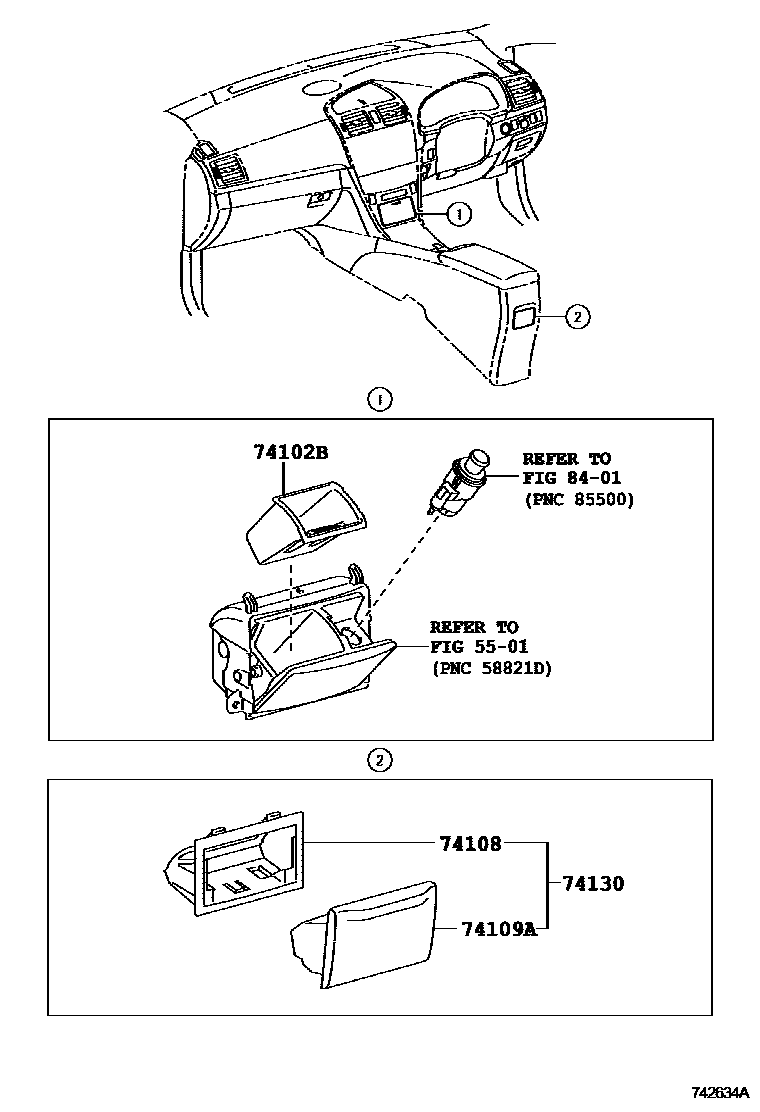

ASH RECEPTACLE

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-05060iAZT270200811-200906

main74102-05061iAZT270200907-201104

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-02010iAZT270200811-201104

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-05040-C0iAZT270200811-201104

BLACK,TRIM2#,4#

74130RECEPTACLE ASSY, REAR ASH

main74130-05030-C0iAZT270200811-201104

BLACK,TRIM2#,4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6 parts on this diagram · 1 diagram in section
