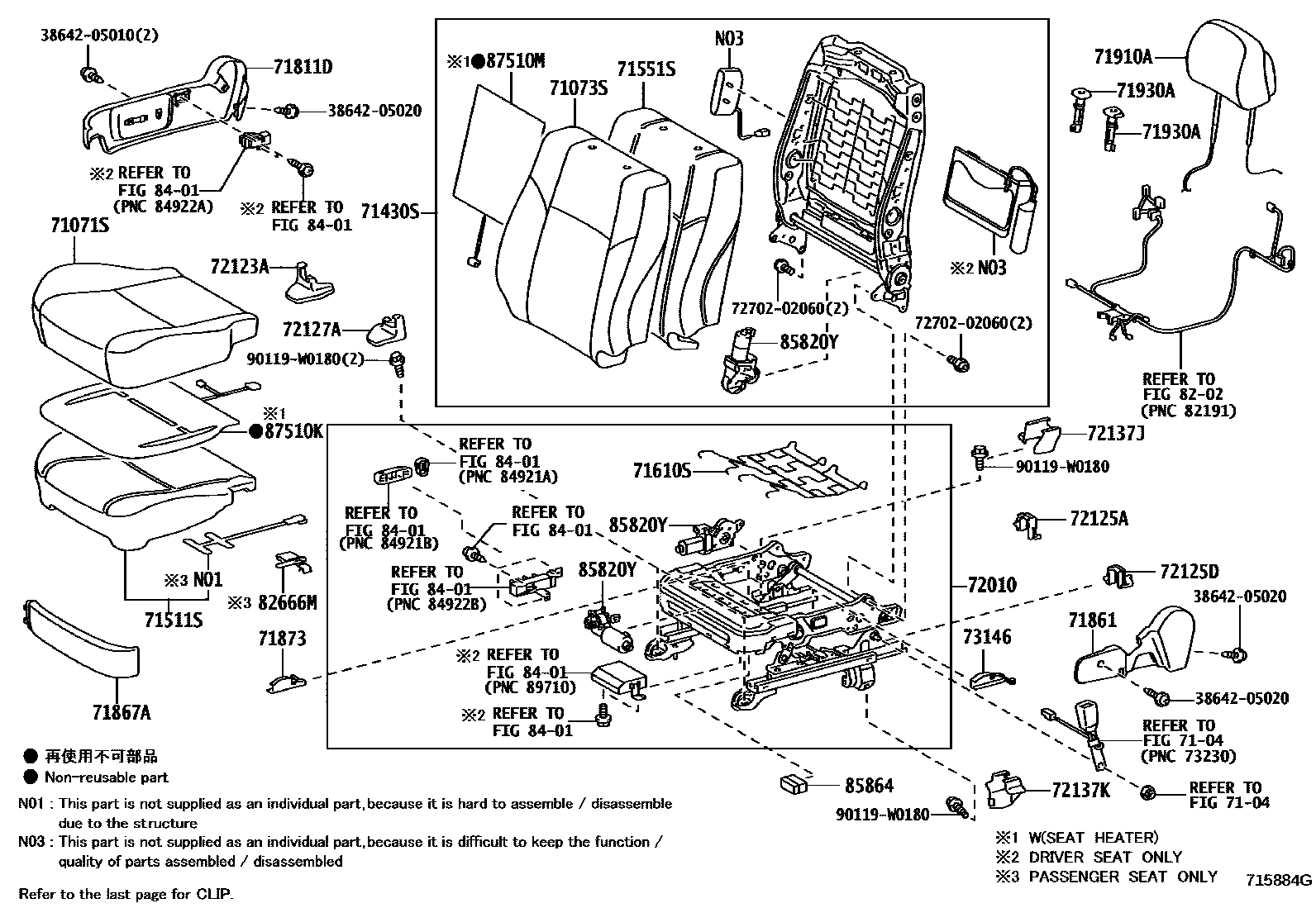

FRONT SEAT & SEAT TRACK

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-05840-C0supersedes 71071-05770-C0i200811-200908

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71071-05840-E2supersedes 71071-05770-E0i200811-200908

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

main71071-05841-C0supersedes 71071-05770-C0i200909-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71071-05841-E2supersedes 71071-05770-E0i200909-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

main71071-05881-C0supersedes 71071-05770-C0i201006-201104

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71071-05881-E0supersedes 71071-05770-E0i201006-201104

SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-05A40-C0supersedes 71073-05A20-C0i200811-200908

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71073-05A40-E2supersedes 71073-05A20-E0i200811-200908

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

main71073-05A41-C0supersedes 71073-05A20-C0i200909-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71073-05A41-E2supersedes 71073-05A20-E0i200909-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

main71073-05A91-C0supersedes 71073-05A20-C0i201006-201104

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71073-05A91-E0supersedes 71073-05A20-E0i201006-201104

SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-05A30-C0supersedes 71430-05A80-C0i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71430-05A30-E2supersedes 71430-05A80-E0i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

main71430-05B00-C0supersedes 71430-05A90-C0i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71430-05B00-E2supersedes 71430-05A90-E0i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

main71430-05B50-C0supersedes 71430-05A80-C0i201006-201104

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71430-05B50-E0supersedes 71430-05A80-E0i201006-201104

SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

main71430-05B60-C0supersedes 71430-05A90-C0i201006-201104

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71430-05B60-E0supersedes 71430-05A90-E0i201006-201104

SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-05080supersedes 71501-05070i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER

main71511-05100supersedes 71511-05090i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-05100i200811-201104

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71051-05030i200811-201104

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-05100-C0supersedes 71811-05070-C0i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71811-05100-E0supersedes 71811-05070-E0i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

main71811-05110-C0supersedes 71811-05090-C0i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71811-05110-E0supersedes 71811-05090-E0i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-05060-C0i200811-201104

BLACK,TRIM2#

main71861-05060-E0i200811-201104

GREGE,TRIM4#

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-05020-C0i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71867-05020-E0i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-05030-C0i200811-201104

BLACK,TRIM2#; SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71873-05030-E0i200811-201104

GREGE,TRIM4#; SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

71910AHEADREST ASSY, FRONT SEAT

main71910-05230-C0×2supersedes 71910-05250-C0i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71910-05230-E2×2supersedes 71910-05250-E0i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-02310-C0×2i200811-200901

W(LOCK),BLACK,TRIM2#

main71930-02310-E0×2i200811-200901

W(LOCK),GREGE,TRIM4#

main71930-05030-C0×2i200811-201104

W(LOCK)&W/O(BUTTON),BLACK,TRIM2#

main71930-05030-E0×2i200811-201104

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

main71930-05040-C0×2i200902-201104

W(LOCK),BLACK,TRIM2#

main71930-05040-E0×2i200902-201104

W(LOCK),GREGE,TRIM4#

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-05050supersedes 72010-05040i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER

main72010-05060supersedes 72010-05070i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72128-05020-C0i200811-201104

BLACK,TRIM2#

main72128-05020-E0i200811-201104

GREGE,TRIM4#

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-02030×2i200811-200908

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-02040×2i200811-200908

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72124-05010-C0i200811-201104

BLACK,TRIM2#

main72124-05010-E0i200811-201104

GREGE,TRIM4#

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-05050-C0i200811-201104

BLACK,TRIM2#

main72137-05050-E0i200811-201104

GREGE,TRIM4#

72137KCOVER, FRONT SEAT TRACK, RH REAR INNER

main72157-05050-C0i200811-201104

BLACK,TRIM2#

main72157-05050-E0i200811-201104

GREGE,TRIM4#

73146COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, RH

main73146-05010-C0i200811-201104

BLACK,TRIM2#; SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main73146-05010-E0i200811-201104

GREGE,TRIM4#; SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

8202WIRING & CLAMP

→ Go to FIG 82-02

82666MHOLDER, CONNECTOR

main82666-58030i200811-201104

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85820YMOTOR ASSY, POWER SEAT

main85820-05020i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,LIFTER

main85820-05030i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,TILT

main85820-05040i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,LIFTER

main85820-05050i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,TILT

main85820-05070i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,RECLINING

main85820-05080i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,RECLINING

85864CONTROLLER, SEAT CLIMATE CONTROL,RH

main85864-05010i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-05130i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER

87510MHEATER ASSY, FRONT SEATBACK, RH

main87510-05140i200811-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER

3864205010SCREW (FOR WINCH CONTROL SWITCH)

main38642-05010

3864205020SCREW (FOR WINCH CONTROL SWITCH)

main38642-05020

7270202060BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-02060

90119W0180

main90119-W0180
