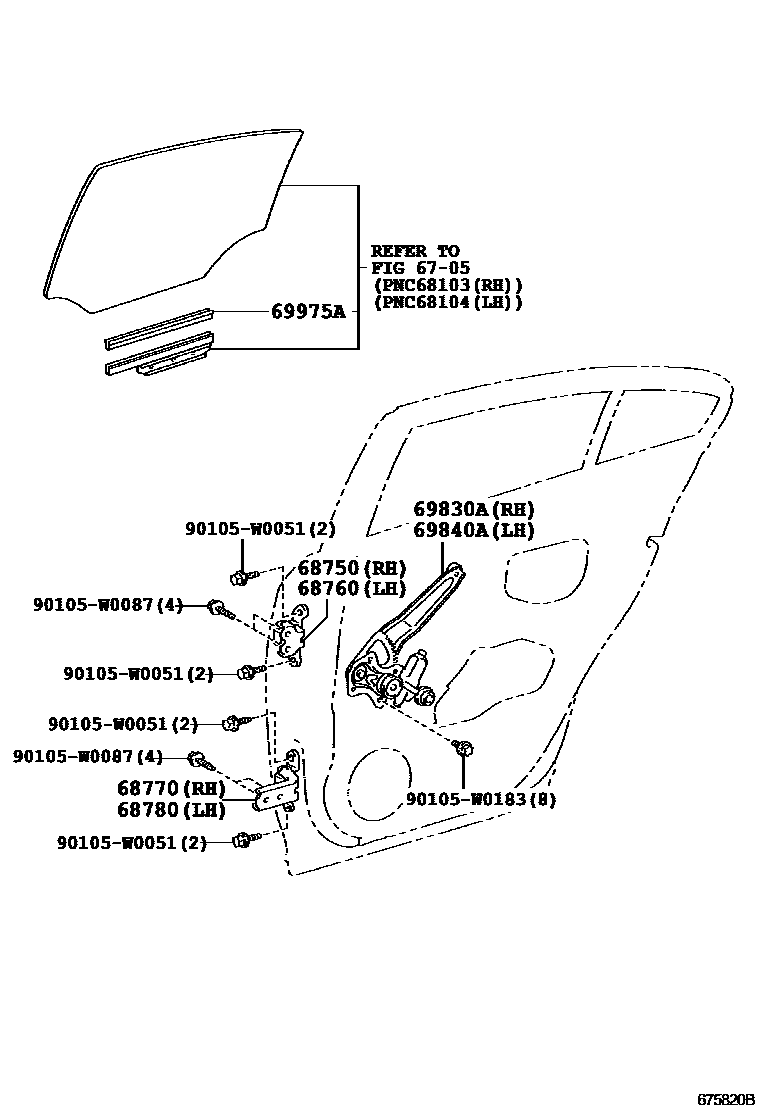

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0H010iAZT270200811-201104

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0H010iAZT270200811-201104

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0H010iAZT270200811-201104

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0H010iAZT270200811-201104

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-05130iAZT270200811-201104

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-05130iAZT270200811-201104

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iAZT270200811-201104

90105W0051

main90105-W0051

90105W0087

main90105-W0087

90105W0183

main90105-W0183

11 parts on this diagram · 1 diagram in section
