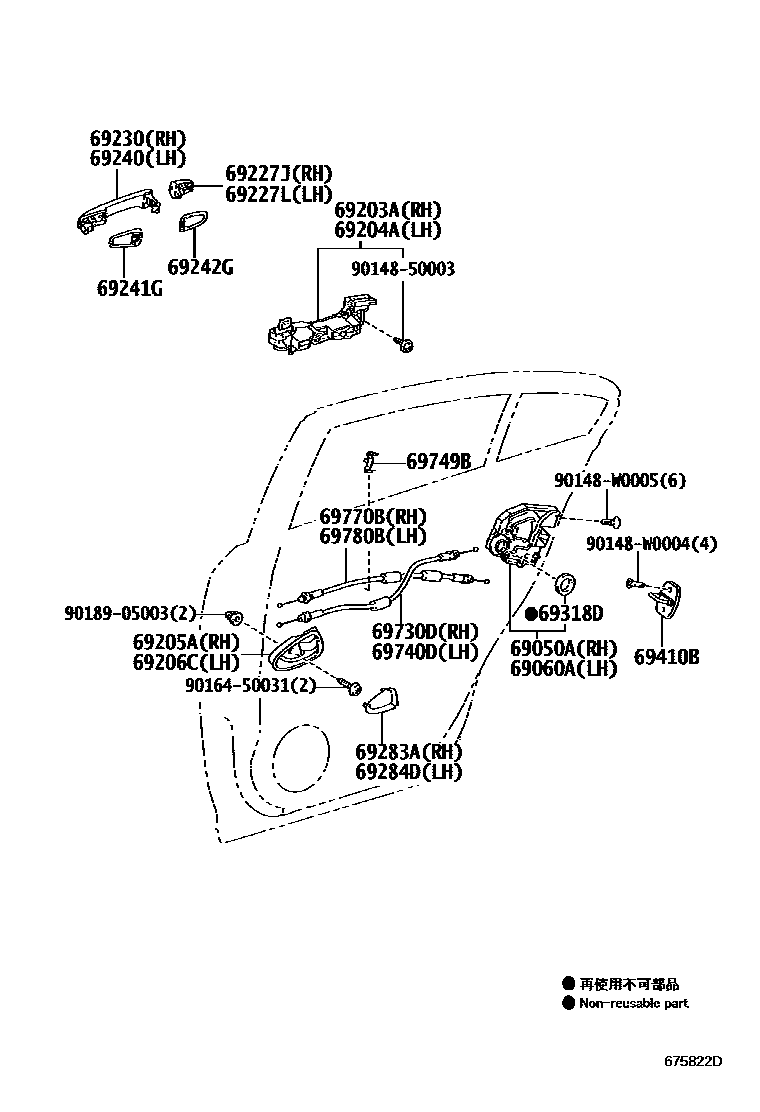

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
GREGE,TRIM4#
BLACK,TRIM2#
GREGE,TRIM4#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
GREGE,TRIM4#
BLACK,TRIM2#
GREGE,TRIM4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
LESS COLOR
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
LESS COLOR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PAINT REQ.
PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PAINT REQ.
PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
GREGE,TRIM4#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
GREGE,TRIM4#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
90148W0004
main90148-W0004
90148W0005
main90148-W0005
9016450031
main90164-50031
9018905003
main90189-05003
26 parts on this diagram · 1 diagram in section
